The Potter RA-6075 is an LCD remote annunciator for the PFC-6075 and PFC-6030 addressable fire alarm control panels. It connects to the main panel over RS-485 and gives common indication of alarms, supervisory, trouble and other system status, along with control functions.

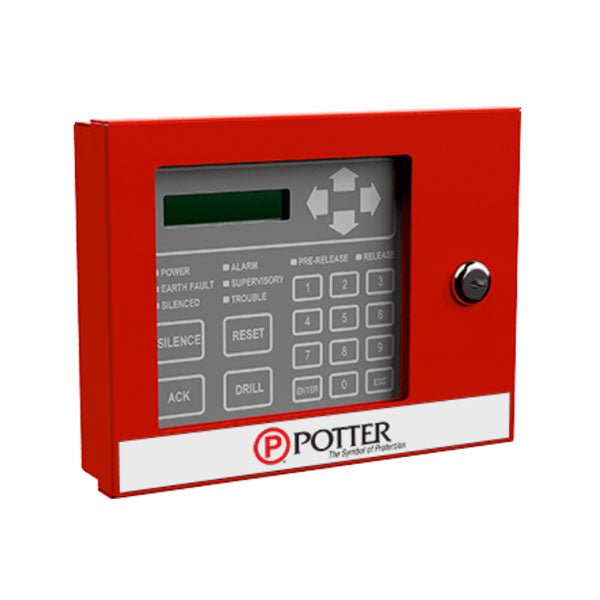

It has a 2-line by 16-character LCD with LEDs for Power, Alarm, Supervisory, Trouble and Silenced. The annunciator is housed in a sheet metal enclosure, a Potter lock secures the keypad, and it mounts on a single-gang or four-square electrical box.
Specifications
| Display |
2 lines x 16 characters |
| Standby current |
20 mA |
| Alarm current |
25 mA |
| Maximum wire length |
6,500 ft |
| Maximum annunciators |
31 |
| Wire gauge |
14 to 22 AWG |
| Dimensions |
8 x 6-1/4 x 1-5/8 in. (cabinet) |
| Operating environment |
32 to 120°F (0 to 49°C), 10 to 93% RH non-condensing |
| Warranty |
5 years |
Installation notes
- Connects to the PFC-6075 with a four-wire RS-485 connection, power limited and supervised
- Up to 31 annunciators on Class B or Class A wiring; Class A needs the optional Class A expander
- Set the address 1 to 31 with DIP switch S1 on the back
Related models
The RA-6075R is the version for the PFC-6075R releasing panel.
Documents
FAQ
Which panels does the RA-6075 work with?
The Potter PFC-6075 and PFC-6030 addressable fire alarm control panels.
How many annunciators can be connected?
Up to 31, using Class B or Class A wiring. Class A requires the optional Class A expander.
How is the address set?
With DIP switch S1 on the back of the annunciator, in the range 1 to 31.
How far can it be from the panel?
Up to 6,500 ft of wire, 14 to 22 AWG.
