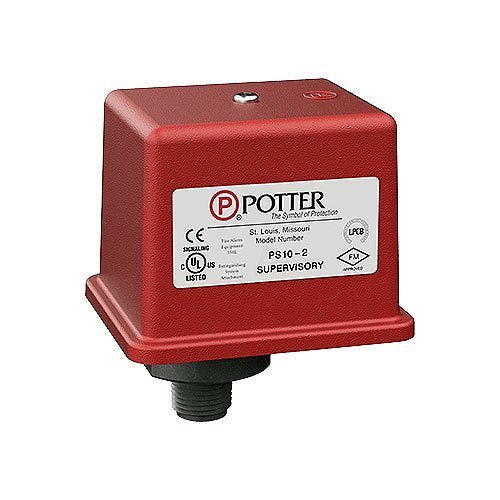

Potter PS10-2 is a PS10 Series pressure type waterflow switch with two sets of SPDT contacts. The Potter PS10 Series pressure actuated switches detect a waterflow condition in automatic fire sprinkler systems of particular designs, such as wet pipe systems with alarm check valves, dry pipe, preaction or deluge valves.
Compatibility
The PS10-2 is the two-switch model of the PS10 Series.
-
Potter PS10-1: the single-switch PS10 pressure type waterflow indicator.
FAQ
Can the PS10 give a low-pressure supervisory signal?
Yes. It can provide a low-pressure supervisory signal adjustable between 4 and 15 psi (0.27 and 1.03 bar).
Can both switches be adjusted without tools?
Yes. On the two-switch models each switch is adjusted independently, with no tools needed.
Features
- Independent switch adjustment on two switch models, no tools needed
- Two 1/2" conduit/cable entrances
- Separate isolated wiring chambers
- Non-corrosive pressure connection
- Non-conductive enclosure
- VdS version available
