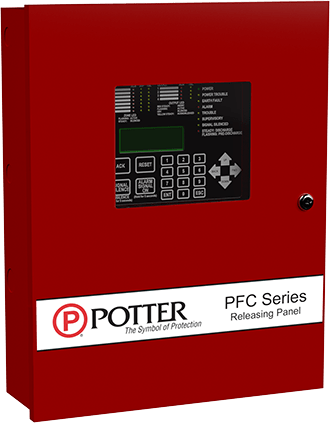

Potter PFC-4410G3 Releasing Control Panel
The Potter Model PFC-4410G3 is a conventional multi-hazard releasing control panel well suited for a number of applications. The PFC-4410G3 is listed for use with pre-action and deluge sprinkler suppression systems and agent-based fire suppression systems.
The panel utilizes a microprocessor-based system with up to 35 standard programs in panel memory, which covers a majority of installations. The simple to follow Menu Structure programs the entire system in seconds. In addition to the Standard Programs, the panel allows custom programming to accommodate any installation. Programming is accomplished either through the menu-driven on-board controls or from a laptop via the Ethernet connection.
The PFC-4410G3 is housed in a red, durable steel cabinet with a removable door and key lock. An optional flush mount trim ring is available. The cabinet contains knockouts on the side, back, and top of the cabinet to ease installation. In addition, the cabinet will house up to two (2) twelve (12) amp-hour batteries that will provide over 90 hours of standby power.
