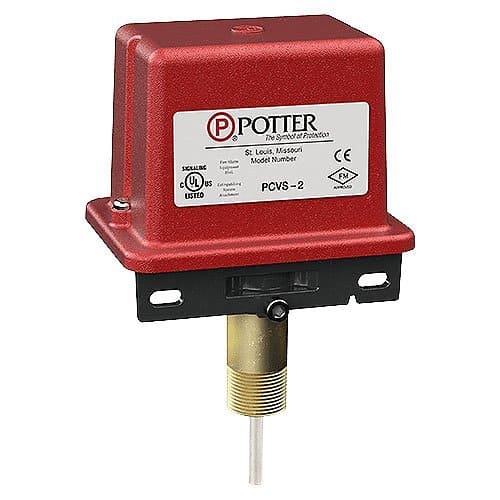

Potter PCVS-2 — weatherproof, tamper resistant switch that supervises the open position of a fire sprinkler control valve.
It suits wall and yard post indicator and butterfly valves, mounting in a 1/2 in. NPT tapped hole in the valve housing. While the valve is open the indicating assembly holds the spring loaded trip rod back; as it closes the actuator moves away and the switch operates within two revolutions.
- Two sets of SPDT (Form C) contacts, 10.0 A at 125/250 VAC, 2.0 A at 30 VDC resistive
- NEMA 4X (IP 65) and 6P (IP 67), indoor or outdoor, any mounting position
- Rated -40 to 140 °F; service use NFPA 13, 13D, 13R and 72
- Visual switch indicators, adjustable trip rod, two 1/2 in. knockouts, 12 AWG
- Composite cover over a die cast base, with two tamper resistant screws
- cULus certified for signaling, FM approved, CSFM certified and CE marked
The current Potter data sheet carries only two numbers, so the 2 records the pair of switches rather than separating this from a single switch model: PCVS-2, and PCVS-2 CRH with 316 stainless hardware. Hazardous locations take the PIVSU-EX.
Documents
FAQ
Which valves can the PCVS-2 supervise?
Wall and yard post indicator valves and butterfly valves. It mounts in a 1/2 in. NPT tapped hole in the valve housing.
When does the switch operate?
The contacts operate when the valve moves from fully open; the PCVS must operate within the first two revolutions of the valve operating mechanism.
How is the cover secured?
By two tamper resistant screws that need a special tool, which is furnished with each device. An optional cover tamper switch is available.
Is there a version for corrosive locations?
Yes. The enclosure is NEMA 4X; for extra corrosion protection of the mounting hardware Potter offers the PCVS-2 CRH.
