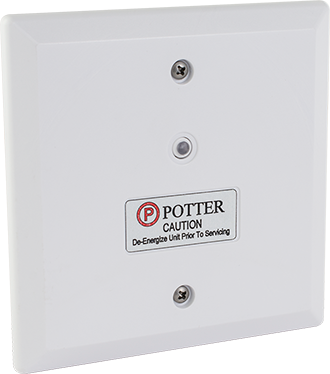

Potter PAD300-IM is an isolator module for Potter signaling line circuits. It limits the effect of a short circuit by cutting off the faulty section so the rest of the loop keeps working.
The module does not need an SLC address but does draw power from the loop. When it detects a short, it disconnects its outgoing side; once the short is cleared it restores itself automatically. A red LED lights continuously while the module is shorted.
Features
- Isolates short circuits within the SLC loop
- Uses no SLC address
- Restores automatically when the short is removed
- Red LED shows fault status
- Supports SLC Class A, Class X and Class B
- Mounts in a standard 4 in. or double-gang box
- Terminals accept 22 to 12 AWG and stay accessible when mounted
- 5 year warranty; UUKL certified for smoke control
