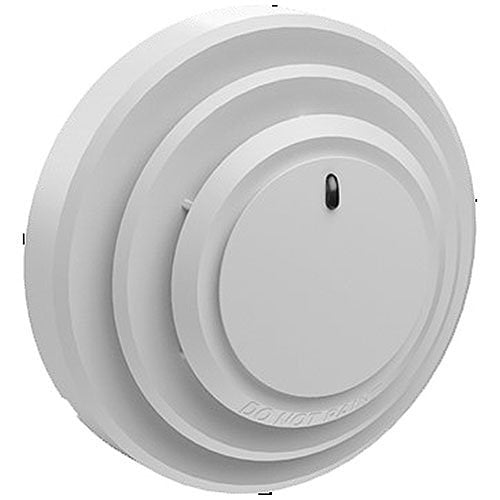

Potter PAD300-DD — analog addressable photoelectric duct smoke detector head for panels running the Potter Addressable Device protocol.
This is the sensing head, not a boxed duct detector. Potter names it the Detector Head Model inside the PAD300-DUCT, whose engineering specification reads that the housing shall contain a detector base and PAD300-DD head. It twists onto a PAD300 base, ordered separately.
- 24 VDC; standby 300 µA; alarm indicator current 1.4 mA
- Alarm set point 2.5 percent per foot (8 percent per metre); polling under five seconds
- Listed air velocity 300 to 3,000 ft/min for the head; the PAD300-DUCT housing is listed 300 to 4,000
- Address 1 to 127 on rear DIP switches; 32 to 120 °F; 3.93 in. across × 1.42 in. high
- UL 268A certified, UUKL certified for smoke control, approved for in-duct plenum mounting
The complete assemblies are the PAD300-DUCT and PAD300-DUCTR, which Potter describes as shipping complete with housing and head; STN sampling tubes are cut to duct width on top of those. Bases are the PAD300-4DB and PAD300-6DB, each its own stock number.
