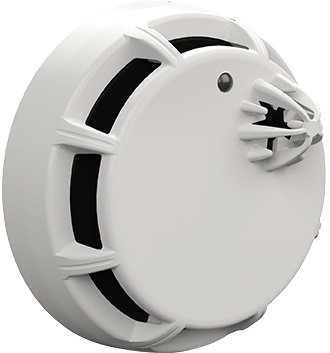

Potter PAD200-PHD — analog addressable photoelectric smoke sensor with an integral thermistor heat element, for panels using the Potter Addressable Device protocol.
The sensor twists on to a separately ordered PAD series base, which carries the field wiring and any relay, isolator or sounder option; Potter states outright that the base is not included. Panel and sensor track chamber condition together, so drift is compensated and a dirty sensor is announced.
- Smoke alarm set-point range 1.1 to 3.5 percent per foot, from the specification table
- Fixed temperature alarm at 135 °F, with rate of rise at 15 °F per minute selectable
- UL 268 7th Edition, UUKL for smoke control
- 24 VDC, 300 µA; DIP switch addressing, 127 addresses per loop
- Open area air velocity 0 to 300 ft per minute
- 1.94 in. high and 3.93 in. across without a base
Bases are PAD100-4DB and PAD100-6DB plain, PAD100-IB isolator, PAD100-RB relay, PAD100-SB sounder and PAD100-SPKB speaker. Within the PAD200 range, PAD200-PD is smoke only, PAD200-PCD adds carbon monoxide instead of heat, and PAD200-PCHD carries all three.
