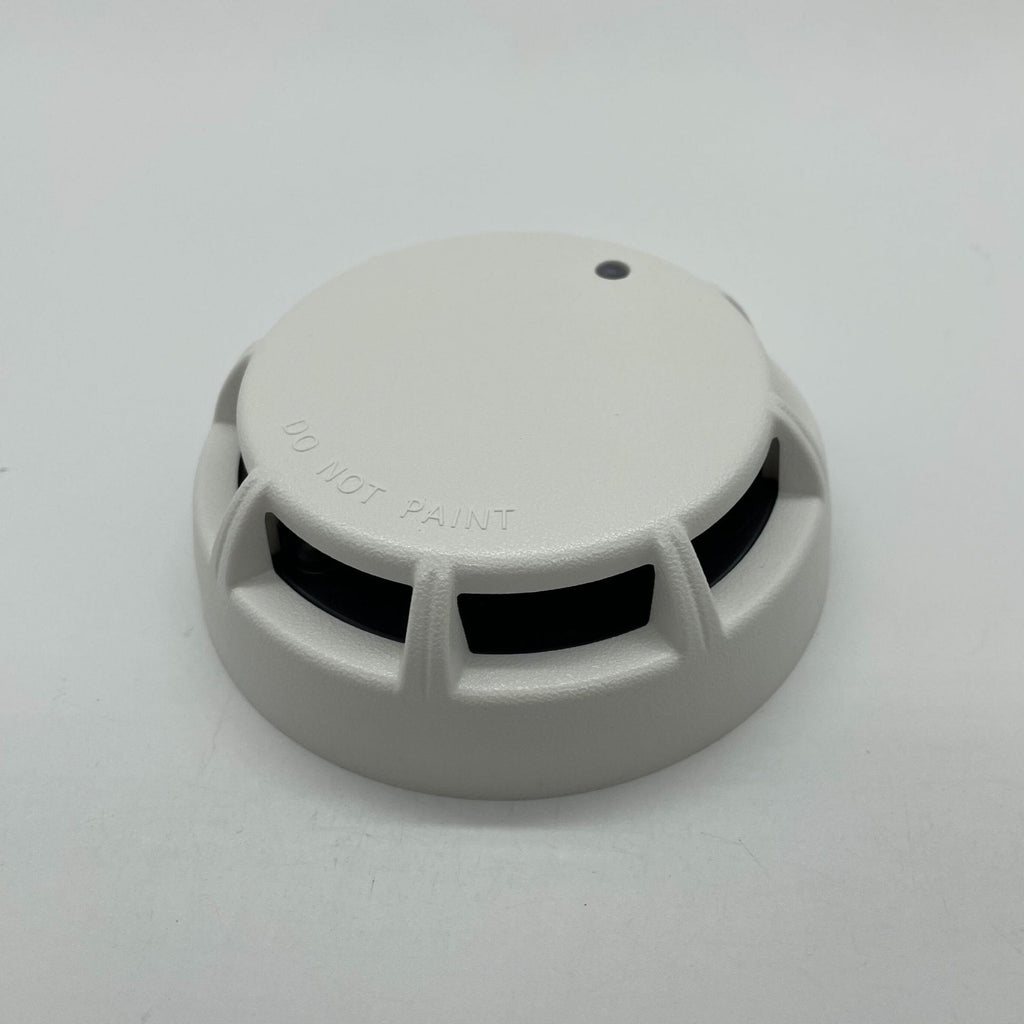

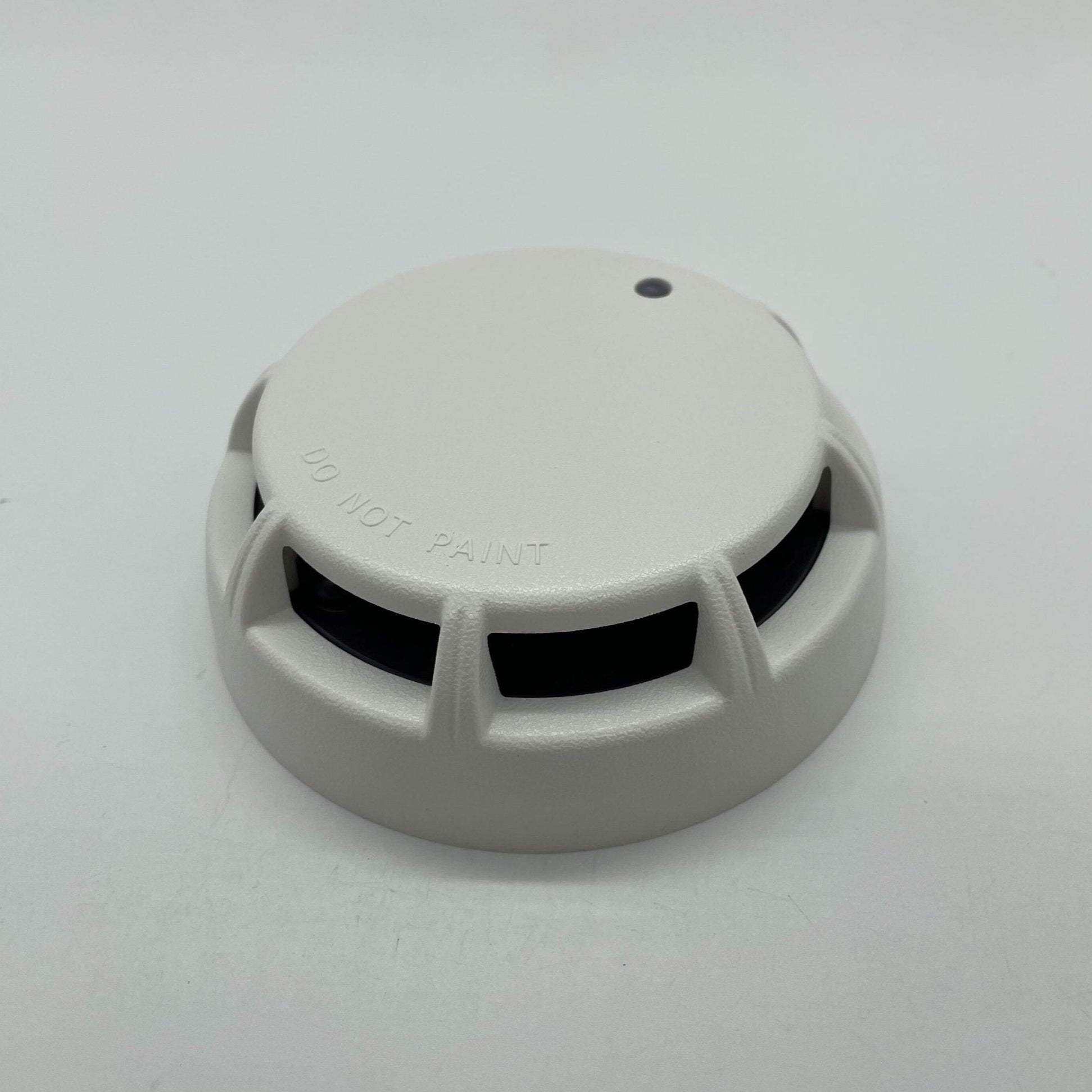

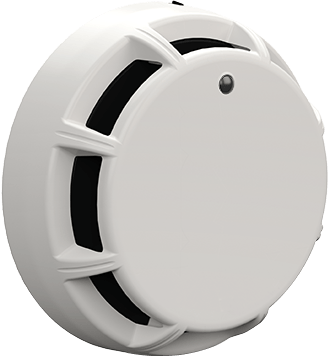

Potter PAD200-PD — analog addressable photoelectric smoke sensor for panels using the Potter Addressable Device (PAD) protocol.

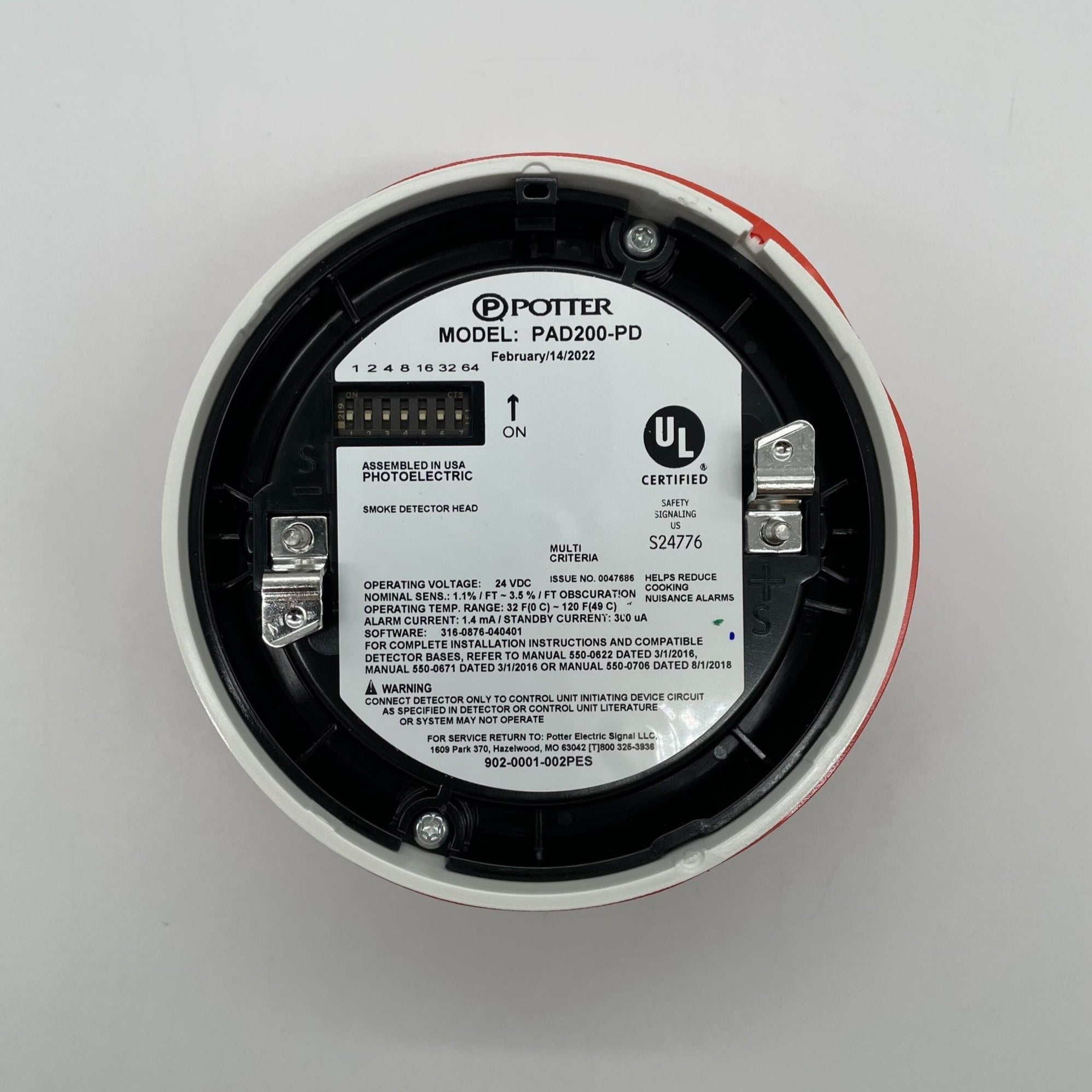

The sensor takes one address on the signaling line circuit and is polled by the panel, which reads its analog sensitivity value rather than a simple alarm contact. Drift compensation holds sensitivity steady as the chamber collects dust, and a programmable maintenance alert can flag the head before it reaches the dirty sensor threshold. The address is set on rear DIP switches.
- 24 VDC operating voltage, 300 µA detector current draw
- Selectable sensitivity 1.0 to 3.7 %/ft (3.6 to 12 %/m)
- Up to 127 addresses per loop, start-up 1 second maximum
- UL 268 7th Edition; UUKL certified for smoke control
- Listed spacing 30 ft maximum; air velocity 0 to 300 ft/min
The base is ordered separately and twists on: PAD100-4DB and PAD100-6DB standard, PAD100-IB isolator, PAD100-RB relay, PAD100-SB sounder or PAD100-SPKB speaker. Do not confuse this head with the PAD200-PHD photoelectric heat combination or the PAD200-PCD smoke and carbon monoxide sensor.
Documents
FAQ
Is a base included with the PAD200-PD?
No. The base is not included; the sensor twists onto any PAD series base such as the PAD100-4DB or PAD100-6DB.
How is the address set?
With DIP switches on the rear of the sensor, addresses 1 to 127, with no programming tool required.
Which panels does it work with?
Fire alarm control panels that use the Potter Addressable Device (PAD) protocol.
What sensitivity range does it offer?
1.0 to 3.7 %/ft, with drift compensation and a dirty detector warning.
