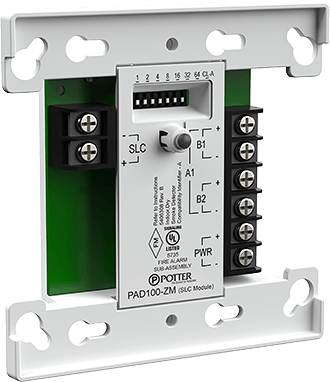

Potter PAD100-ZM is an addressable zone module for Potter SLC loops. It uses one address to monitor either two Class B circuits or one Class A circuit, so conventional 2-wire smoke detectors can be connected to an addressable system.
The module needs and supervises a 24 VDC auxiliary power connection, which must come from a Potter IPA series addressable panel or a PSN series power supply. The initiating device circuit is set to Class A or Class B with an on-board DIP switch. One red LED flashes while the panel polls the device and flashes faster when the device is activated.
Features
- Compatible with conventional 2-wire smoke detectors
- One SLC address for two Class B circuits or one Class A circuit
- Class A or Class B selected by DIP switch
- Monitors for the presence of 24 VDC auxiliary power
- Operates on SLC Class A, Class X and Class B loops
- Mounts in a standard 4 in. or double-gang box
- Wiring terminals accept 22 to 12 AWG and stay accessible when mounted
- 5 year warranty; UUKL certified for smoke control
Specifications
| Product type |
Zone module |
| Dimensions (L x W x D) |
4.2 in. x 4.2 in. x 1.1 in. |
| Status indicator |
Red LED |
| Certifications |
UL, UUKL |
| Compatibility |
Potter IPA and AFC/ARC series addressable fire alarm control panels |
