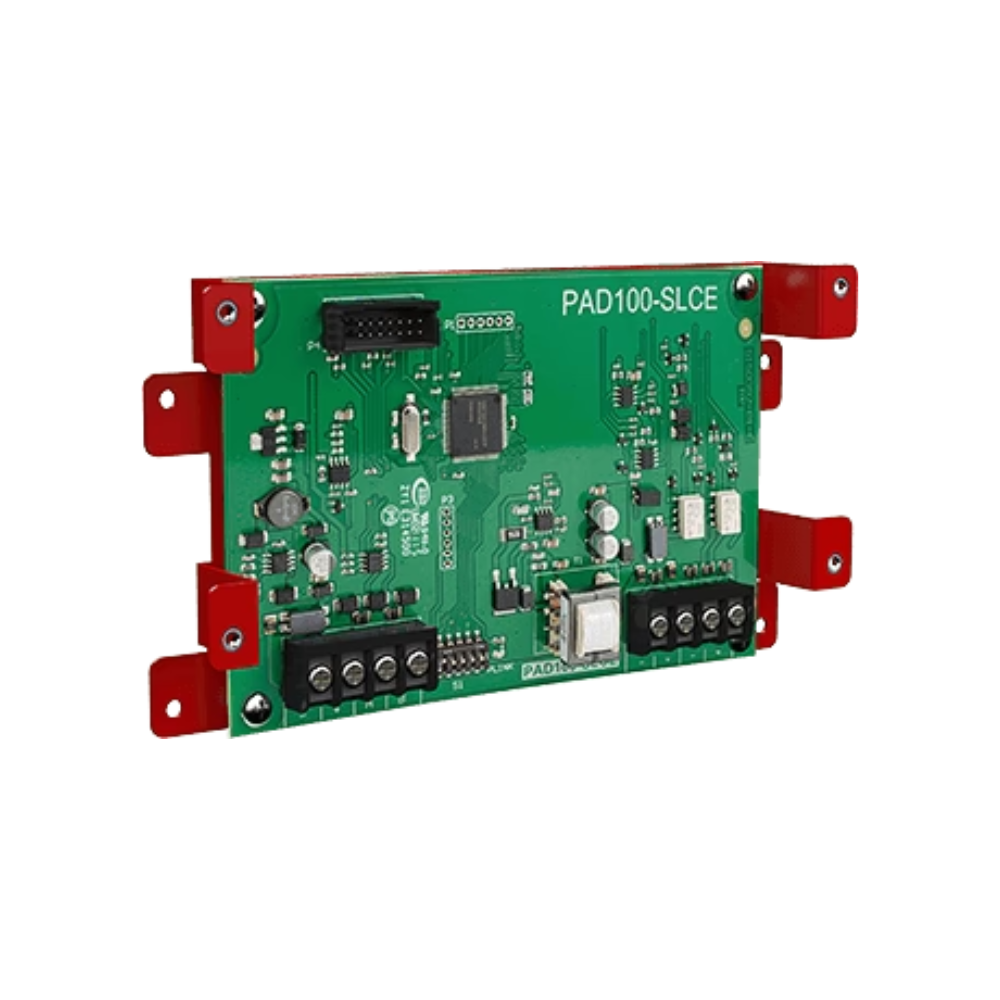

Potter PAD100-SLCE is an addressable signaling line circuit (SLC) expander for Potter PAD protocol fire alarm systems. Each card adds one loop of 127 addressable sensors or modules in any combination, and up to 31 can be added to a system.
It talks to the panel over the P-Link bus, a supervised, power-limited four-wire RS-485 connection, and is used with the IPA and AFC/ARC series panels. The loop can be wired Class A or Class B with no extra modules.
Specifications
| Capacity |
127 addressable devices per loop |
| Max per system |
31 expanders |
| Standby / alarm current |
50 mA / 50 mA |
| SLC voltage |
24 VDC |
| Max SLC resistance |
50 ohms |
| Wiring |
SLC Class A, X or B; P-Link RS-485 |
| Wire size |
#12 to #22 AWG |
| Temperature |
32 to 120°F, 10–93% RH |
| Dimensions |
4 × 6 in. board |
Installation notes
- Mounts in the panel cabinet, the PSN-1000(E) power supply, or an AE-2, AE-8 or AE-14 accessory enclosure
- Uses the included Stacker Bracket
- Set the P-Link address (1–31) on the five-position DIP switch
- Remove power from the RS-485 bus before connecting the module
- Strip wires 1/4 in.; too much can cause a ground fault
Related models
Other P-Link expanders in the PAD100 family include the PAD100-NAC and the PAD100-LED annunciator driver.
