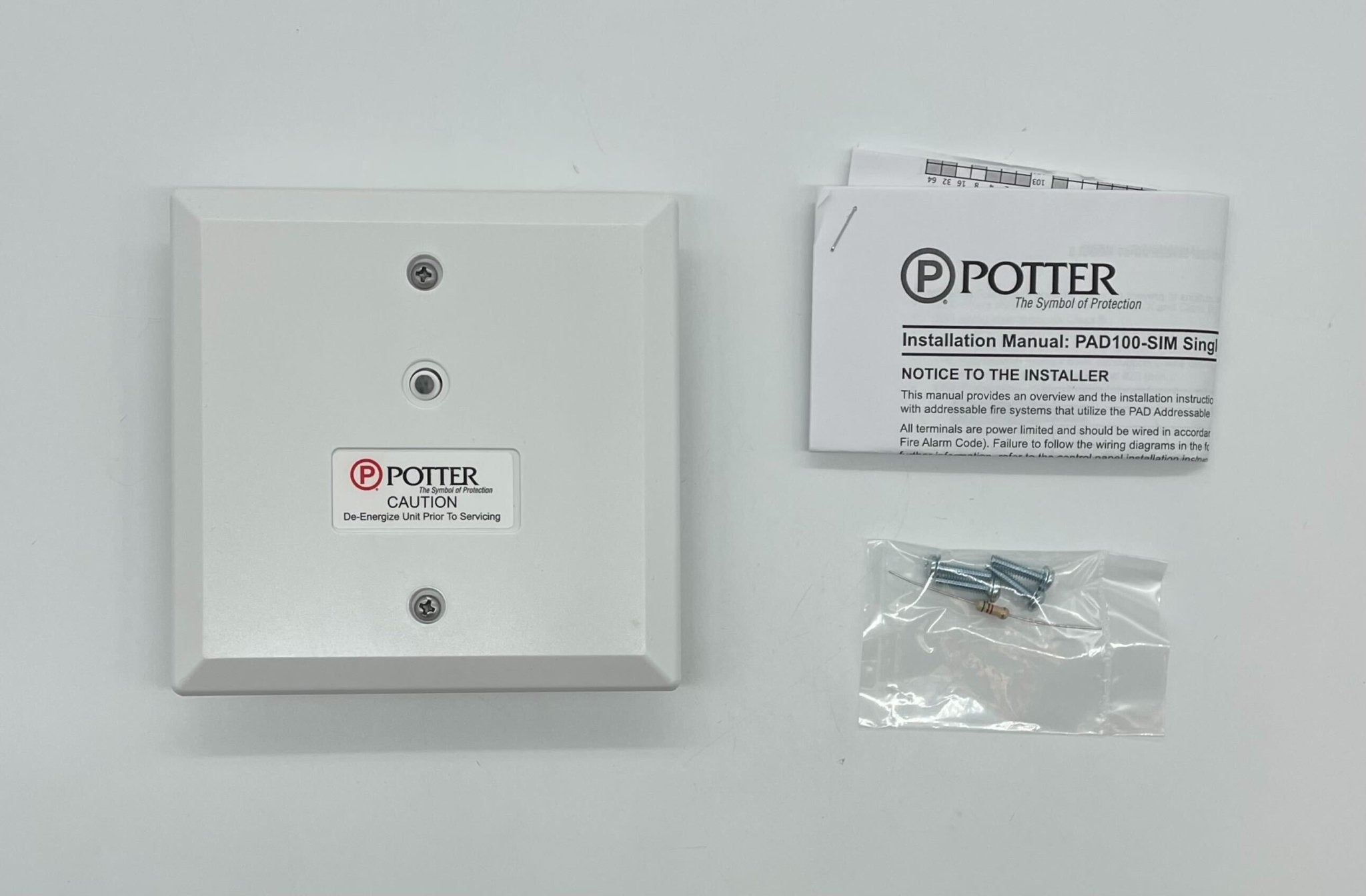

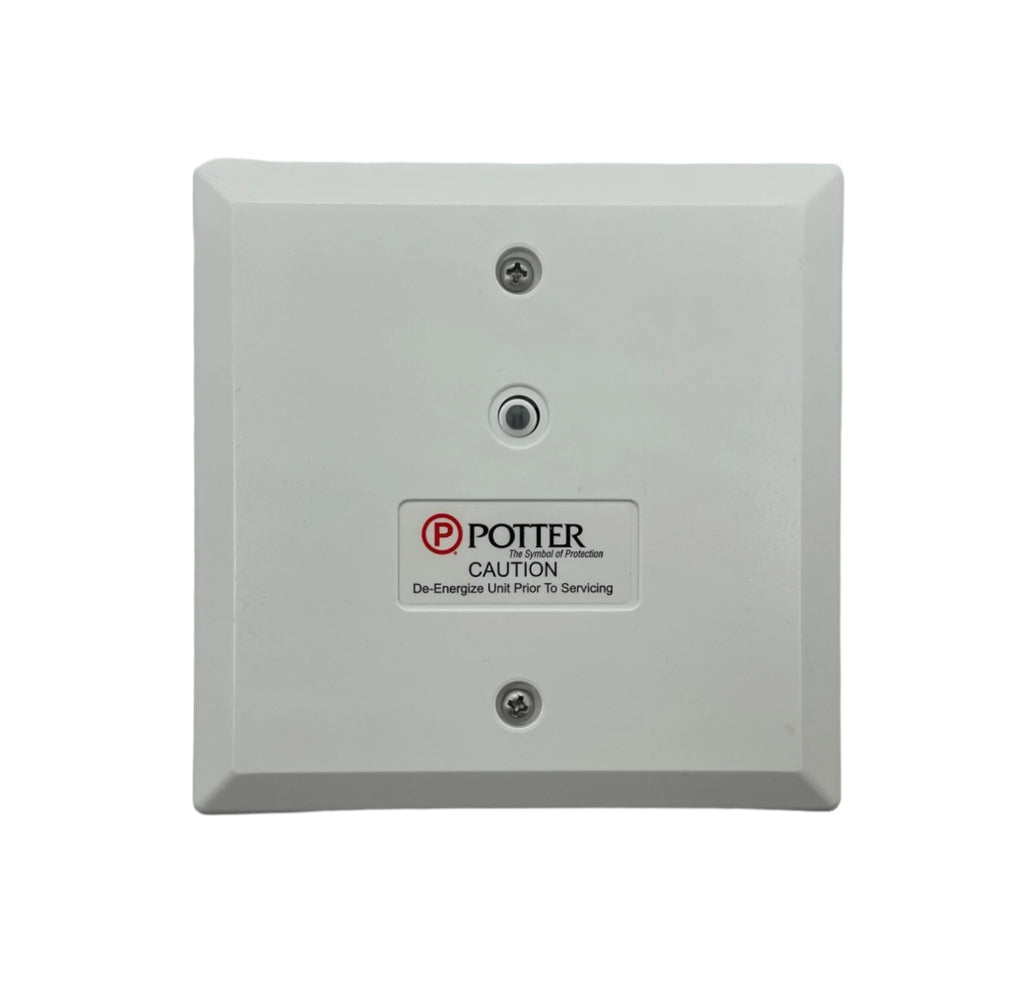

Potter PAD100-SIM — addressable single input module monitoring one Class B initiating device circuit on a PAD protocol loop.
It is the interface between dry-contact field devices and a Potter addressable panel. Waterflow switches, valve tamper switches and conventional pull stations wire to its one supervised input, and the module reports over the loop on a single address set by a seven-position DIP switch.
- One SLC address per module, up to 127 modules per loop
- One Class B initiating circuit with a 5.1 kΩ end-of-line resistor, Potter part 3005013
- SLC wiring supports Class A, Class X and Class B; the input is Class B only
- 24.0 V, 240 µA maximum SLC standby and alarm current
- Input wiring limits 100 Ω resistance and 1 µF capacitance
- 32 to 120 °F (0 to 49 °C), 0 to 93 percent humidity non-condensing

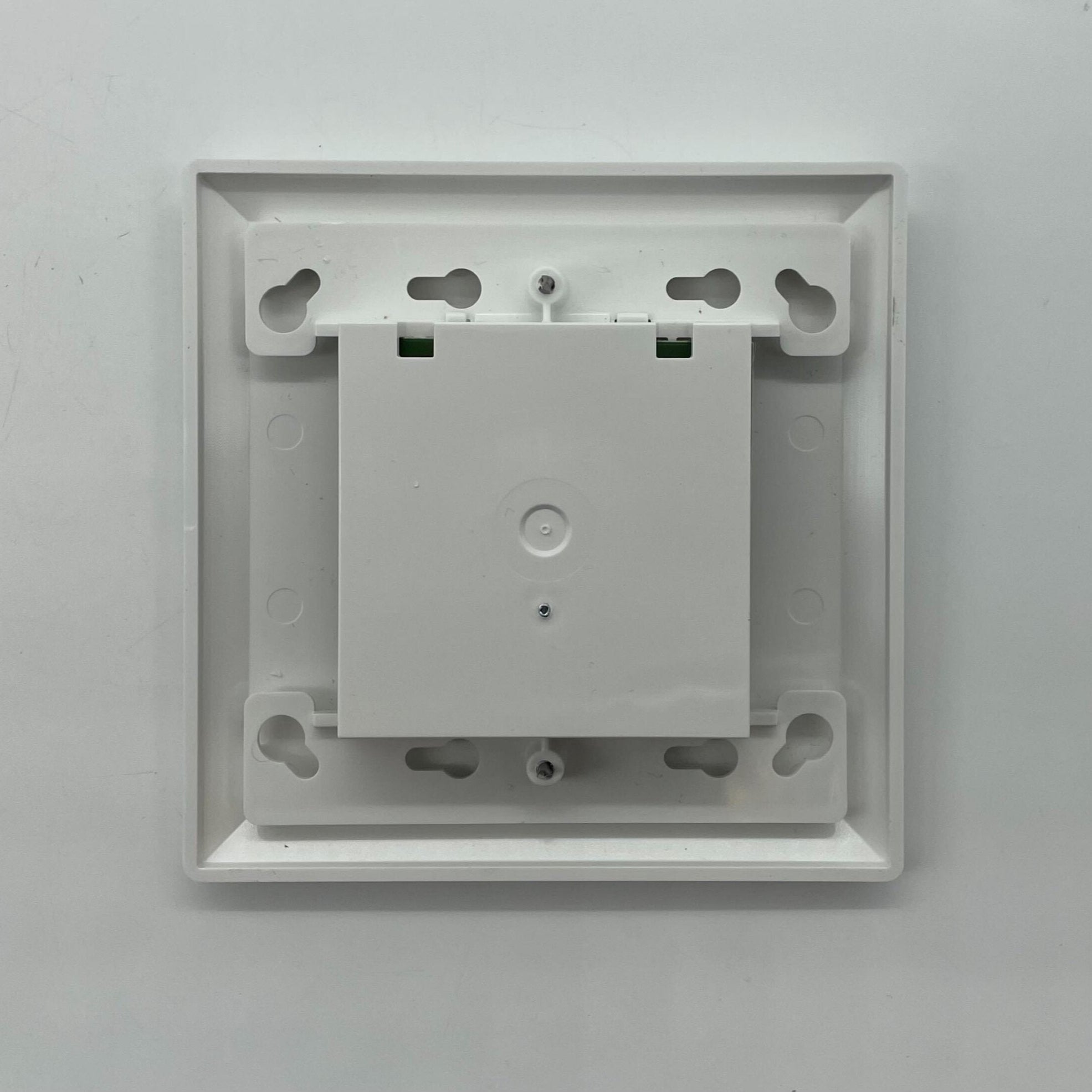

- 4.17 × 4.17 × 1.14 in., 2-gang or 4 in. square box, 22 to 12 AWG
For Potter IPA and AFC/ARC panels; it does not support two-wire smoke detectors. Check the suffix: PAD100-DIM uses one address for two Class B circuits or one Class A, and PAD100-MIM is the micro module that hides behind a pull station.
Documents
FAQ
Which panels is the PAD100-SIM compatible with?
Potter IPA and AFC/ARC series addressable fire alarm control panels.
How is the address set?
With the DIP switch on the module. It uses one SLC address.
Can it monitor 2-wire smoke detectors?
No. Potter notes this module does not support 2-wire smoke detectors; it is for dry contacts such as waterflow, valve tamper switches and conventional pull stations.
What end-of-line resistor does it need?
A 5.1 kΩ EOL resistor (Potter part 3005013) on the Class B input.
