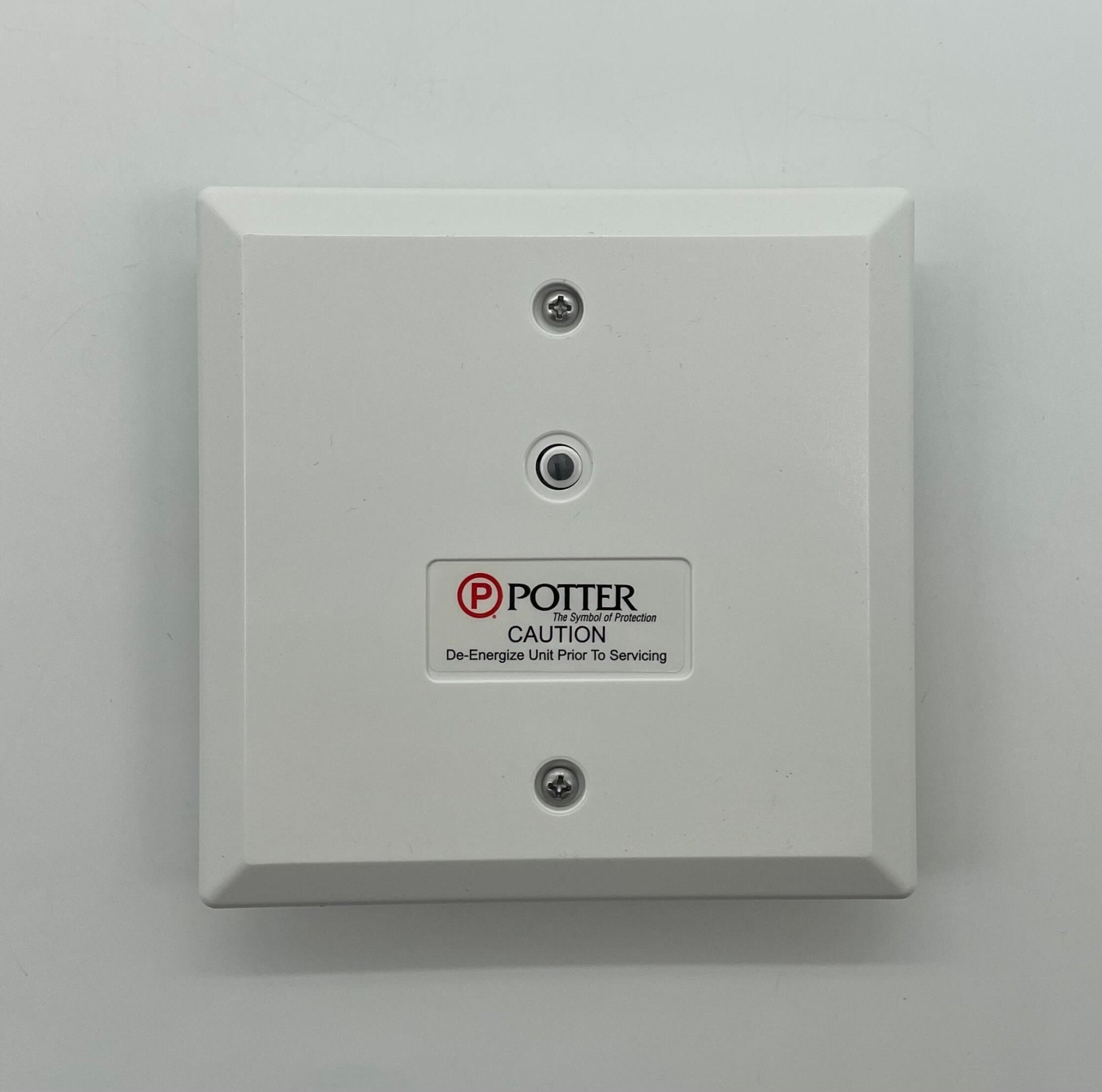

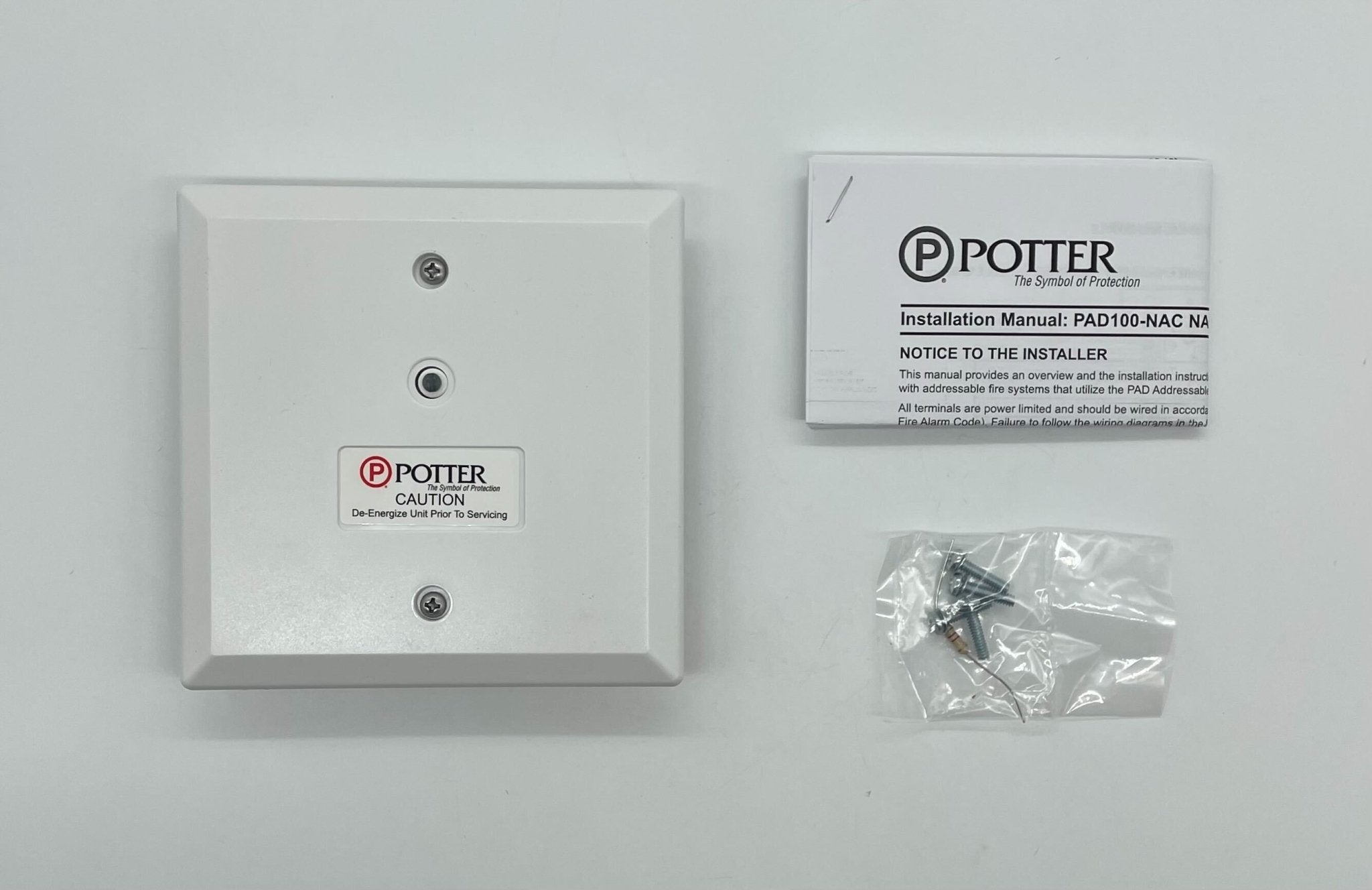

Potter PAD100-NAC is an addressable notification appliance circuit module for Potter IPA and AFC/ARC series fire alarm control panels. It uses one address on the SLC loop and provides a programmable, supervised source of power for one Class B or Class A notification appliance circuit, or one Class B releasing circuit on a Potter releasing panel.

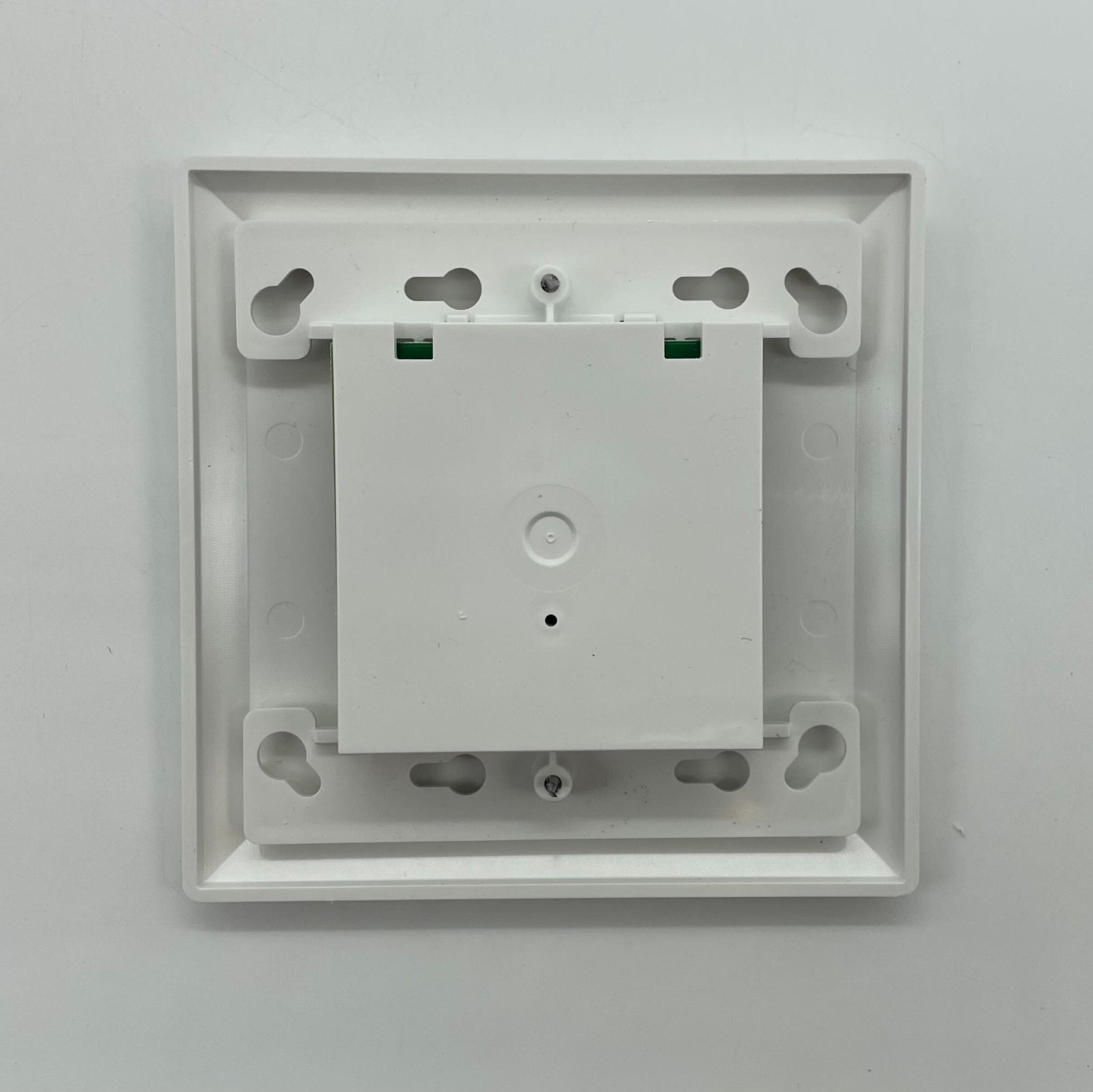

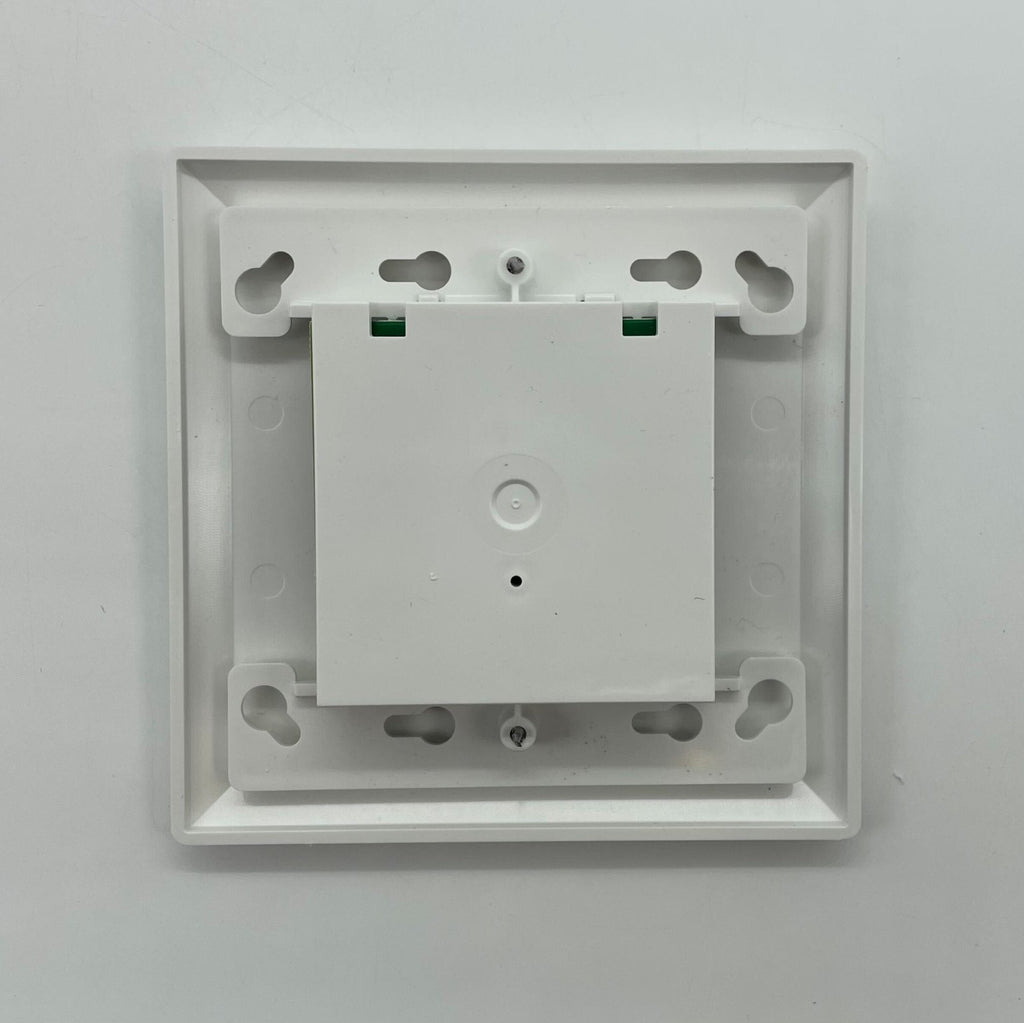

The module requires and supervises a 24 VDC auxiliary power connection, and a red LED flashes when the panel polls it. It mounts in a standard 4 in. square or double gang box with the wiring terminals accessible after mounting.
Specifications
| Operating voltage |
24.0 V |
| SLC current |
200 µA max. standby and alarm |
| Aux power required |
16-33 VDC |
| Output rating |
24 VDC, 2A |
| EOL resistor |
5.1K ohm |
| Modules per loop |
127 max. |
| Wiring |
22 to 12 AWG; SLC Class A, X or B |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
0 to 93% non-condensing |
| Dimensions |
4.17 x 4.17 x 1.14 in. (106 x 106 x 29 mm) |
| Warranty |
5 years |
Installation notes
- Mounts in a standard 4 in. square or double gang box.

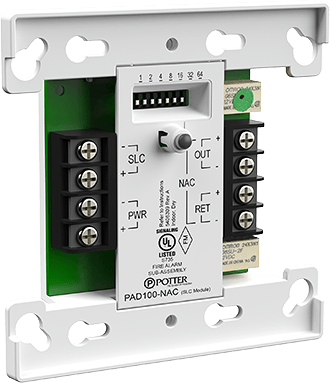

- Set the address with the DIP switches before connecting to the SLC.
- Remove power and check field wiring for opens and shorts before connecting.
- For releasing use, order the EOL resistor diode (stock #3005012) separately.
Related models
-
PAD100-RM and PAD100-SIM: other PAD100 addressable modules
Documents
FAQ
Which panels work with the PAD100-NAC?
Potter IPA and AFC/ARC series addressable fire alarm control panels.
Can it be used as a releasing circuit?
Yes. With a Potter addressable releasing panel it can provide one Class B releasing circuit; the EOL resistor diode for releasing applications (stock #3005012) is not included.
Does it need separate power?
Yes. It requires and supervises a 16-33 VDC auxiliary power connection, and its output is rated 24 VDC, 2A.
How is it addressed?
With the DIP switches on the module. It uses one SLC address, and up to 127 modules can be used per loop.
