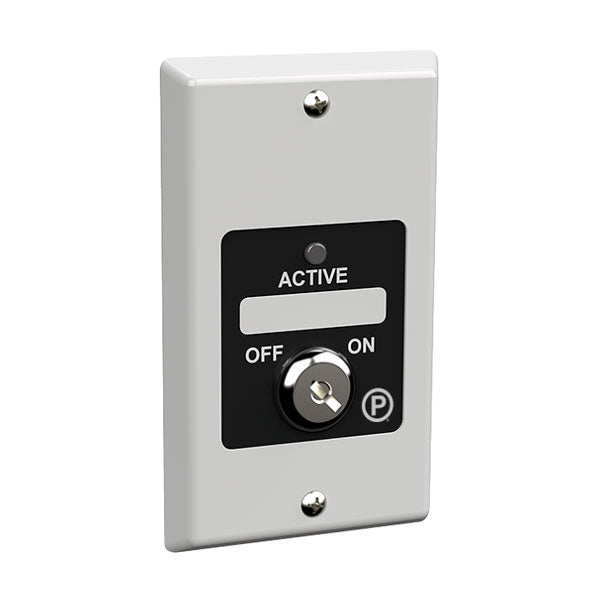

Potter PAD100-LEDK — addressable module combining a mappable key-switch input and a mappable red LED on one SLC address, stock number 3992709.
Because the input and the indicator are mapped in panel programming rather than wired to one fixed function, the same part serves as a keyed enable, a bypass or a manual release control, with the LED reporting whatever state is assigned.
- One SLC address, set on a seven-position DIP switch for addresses 1 to 127
- Up to 127 modules per loop; SLC wiring in Class A, Class B or Class X
- 24.0 V operating, with maximum SLC standby and alarm currents both 200 µA
- Single gang box or Potter P32-BB/DBB; 4.75 × 2.75 × 1 in.; 22 to 12 AWG
- Indoor only, 32°F to 120°F, 0 to 93% RH non-condensing
- For Potter IPA and AFC/ARC panels; UUKL certified for smoke control; 5-year warranty
The near twin is PAD100-LED, which keeps the mappable red LED, has no key switch, draws 240 µA and needs a 4 in. square or double gang box. PAD100-SIM is the plain single-input module with no indicator. The electrical box is not supplied with any of them.
