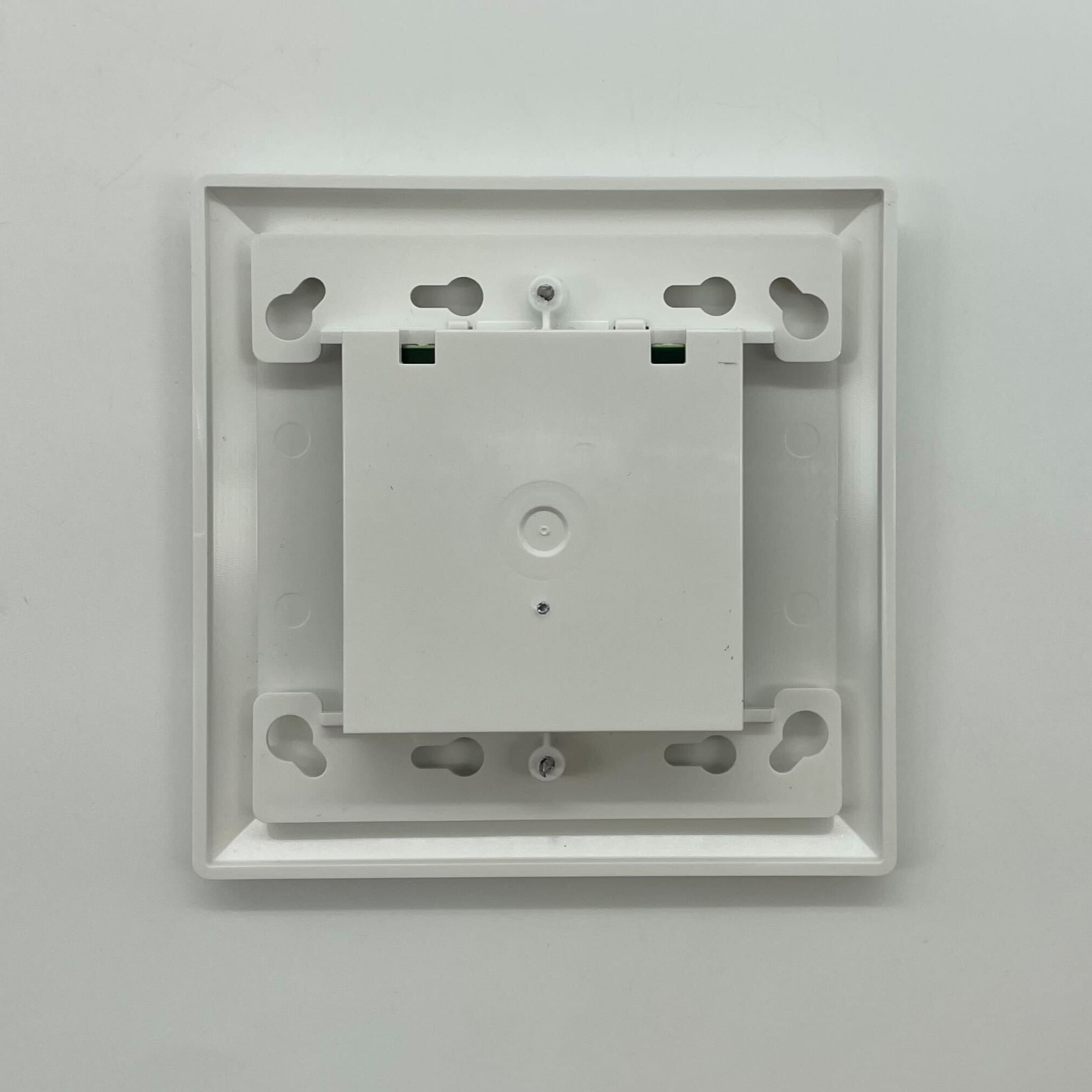

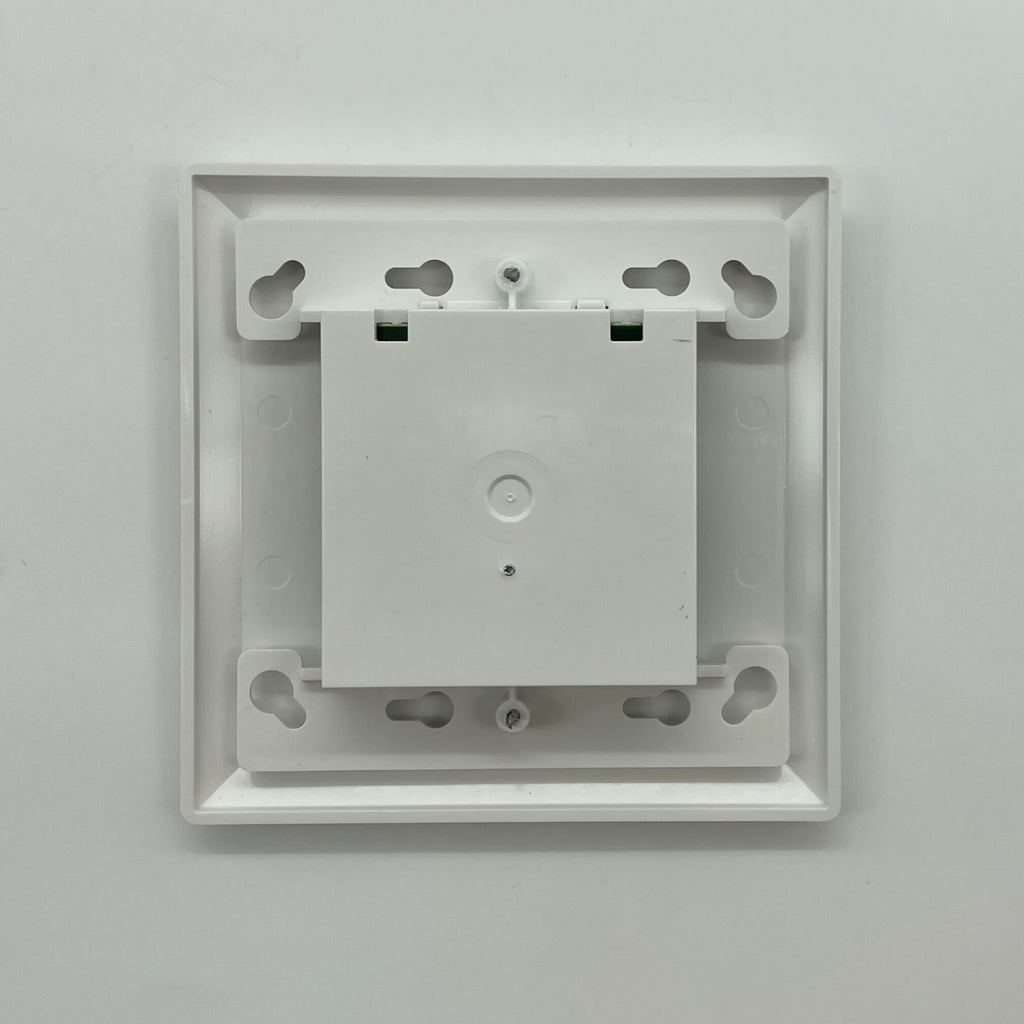

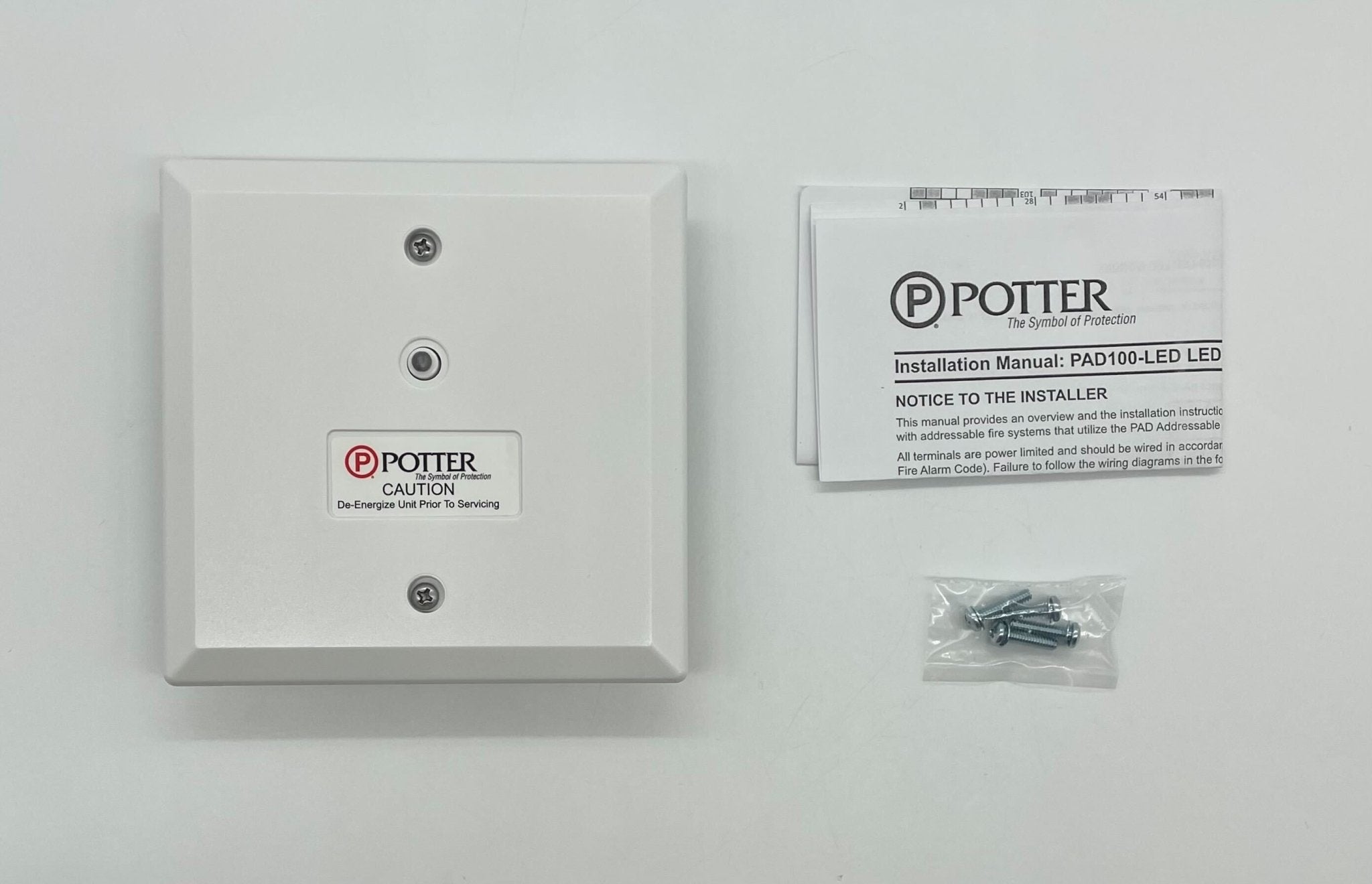

Potter PAD100-LED is an addressable LED module that uses one SLC loop address when used as an addressable indicator. It mounts in a 4 in. square or double-gang box.
The module has one red LED for status. In normal condition the LED flashes when the panel polls the device, and it flashes at a fast rate when the module is activated.
Features
- Single addressable red LED indicator
- Mounts in a 4 in. square or double-gang box
- Works on SLC Class A, Class X and Class B circuits
- Wiring terminals remain accessible while mounted in the box
- All terminals accept 22 to 12 AWG wire
- UUKL Certified for smoke control; FM Approved
- 5-year warranty
Specifications
| Type |
Addressable LED module |
| SLC address use |
1 address |
| Terminal wire size |
22 to 12 AWG |
| Width |
4.2 in. |
| Length |
4.2 in. |
| Depth |
1.1 in. |
| Approvals |
UUKL Certified, FM Approved |
