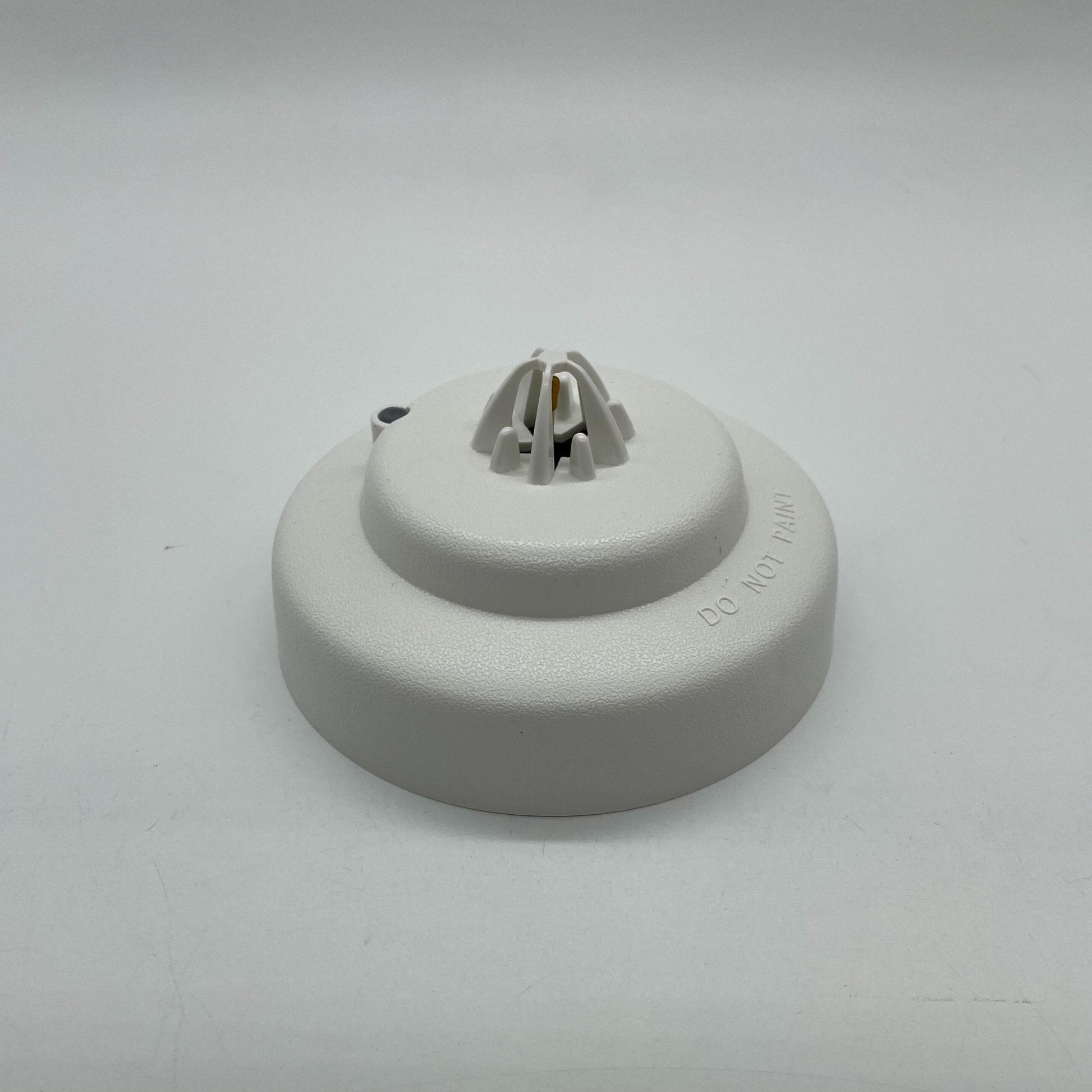

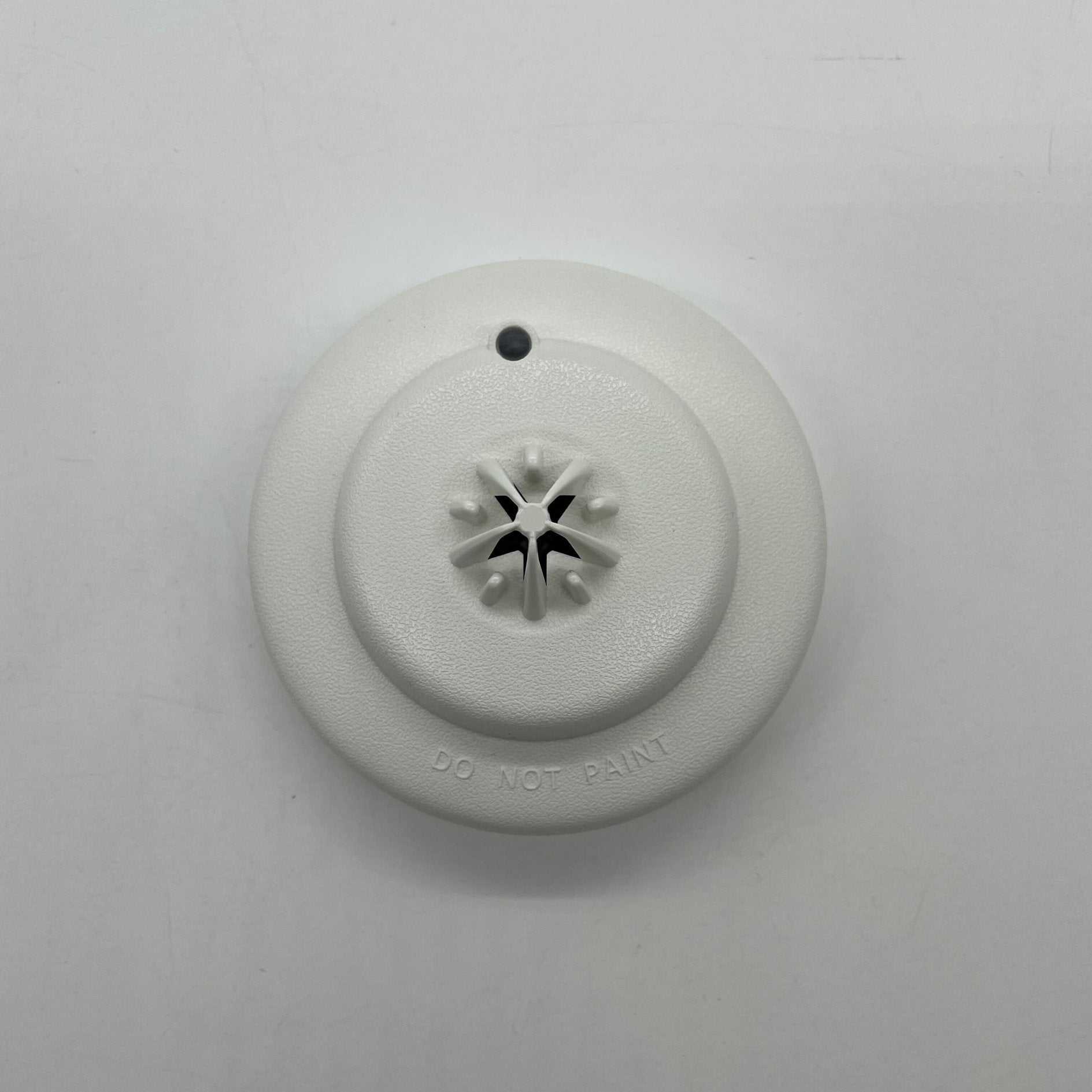

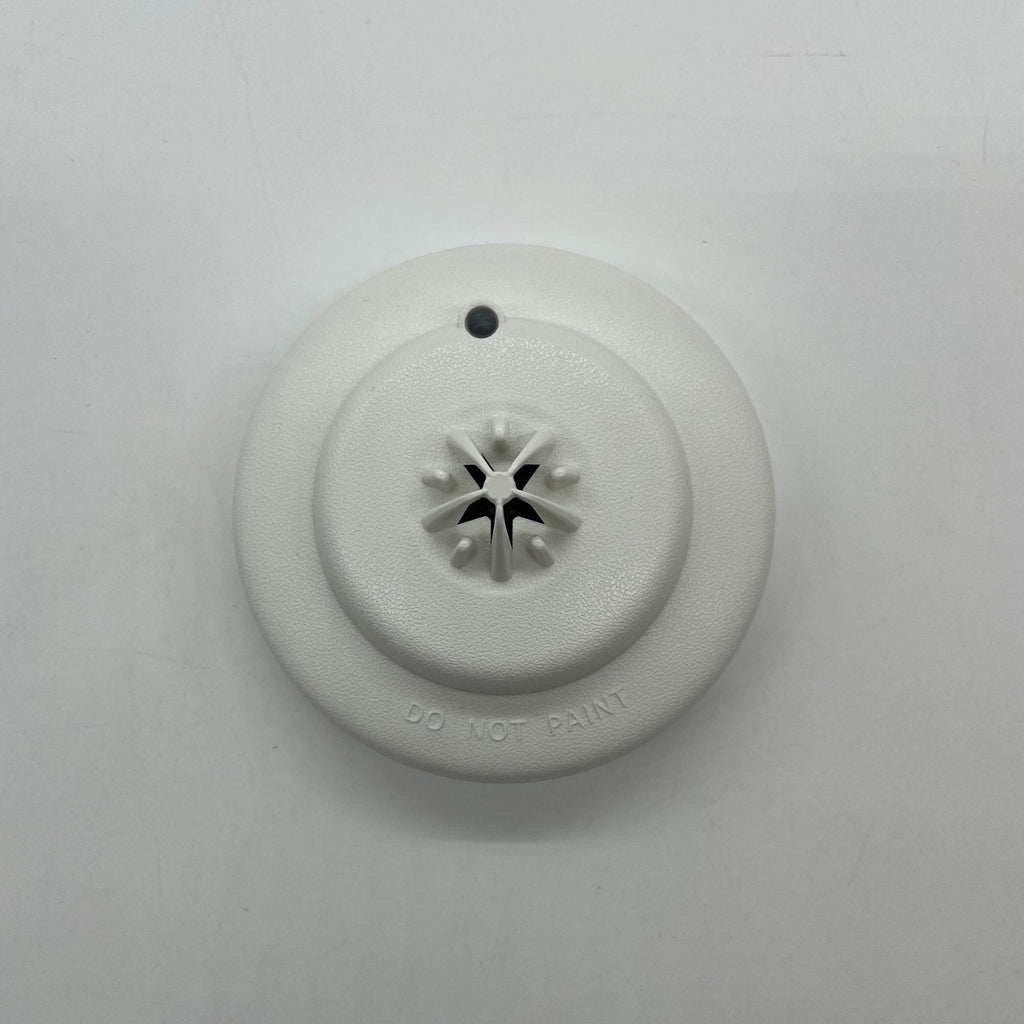

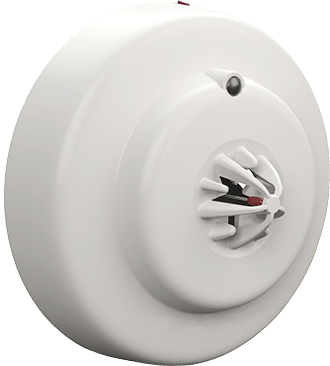

Potter PAD100-HD is an analog addressable heat sensor with selectable rate-of-rise and fixed-temperature detection. It works with any fire alarm control panel that supports the Potter Addressable Device (PAD) protocol and twists onto any PAD-series sensor base. Installers use it in ceiling applications where smoke detection is not suitable.
Specifications
| Operating voltage |
24 VDC |
| Current draw |
300 uA |
| Fixed-temperature set point |
135 to 185 F (57 to 85 C), selectable |
| Rate of rise |
15 F/min (8.3 C/min), selectable |
| Installation temperature |
32 to 150 F (0 to 66 C) |
| Humidity |
0 to 93% non-condensing |
| Addresses per loop |
1 to 127 (DIP switch) |
| Color |
Eggshell white |
| Dimensions (without base) |
1.94 in H x 3.93 in dia. (49 x 100 mm) |
| Weight (without base) |
2.89 oz (82 g) |
Features
- Selectable rate-of-rise and/or fixed-temperature operation in one sensor

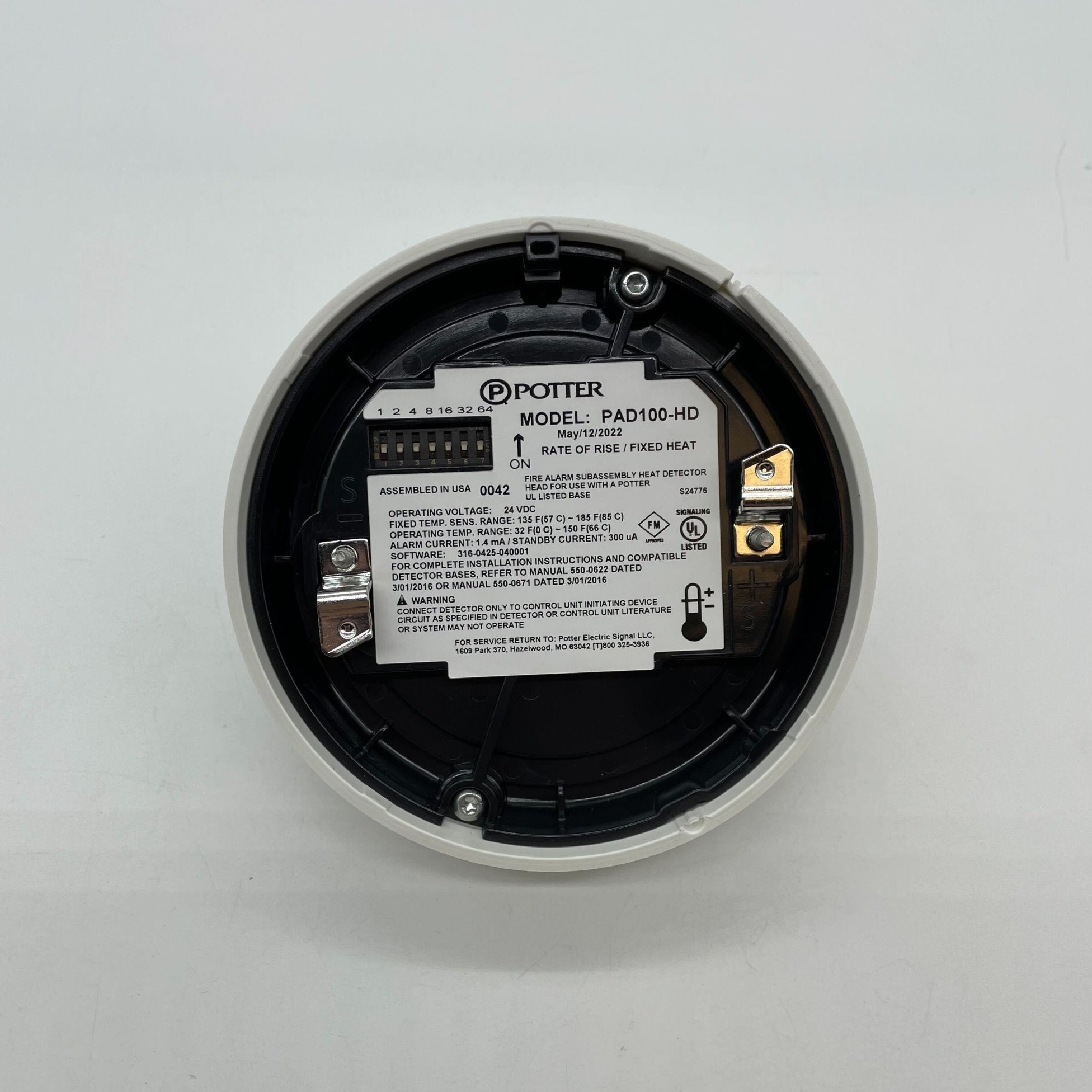

- Address set with DIP switches on the back of the sensor; no programming tool needed
- Single LED alarm indicator; the polling LED can be turned off
- Smooth ceiling spacing up to 70 ft at 135-160 F set points (15 ft at 175-185 F)
- UL certified for smoke control (UUKL); 5-year warranty
The base is not included. Compatible PAD bases include the PAD100-4DB, PAD100-6DB, PAD100-IB, PAD100-RB, PAD100-SB and PAD100-SPKB.
