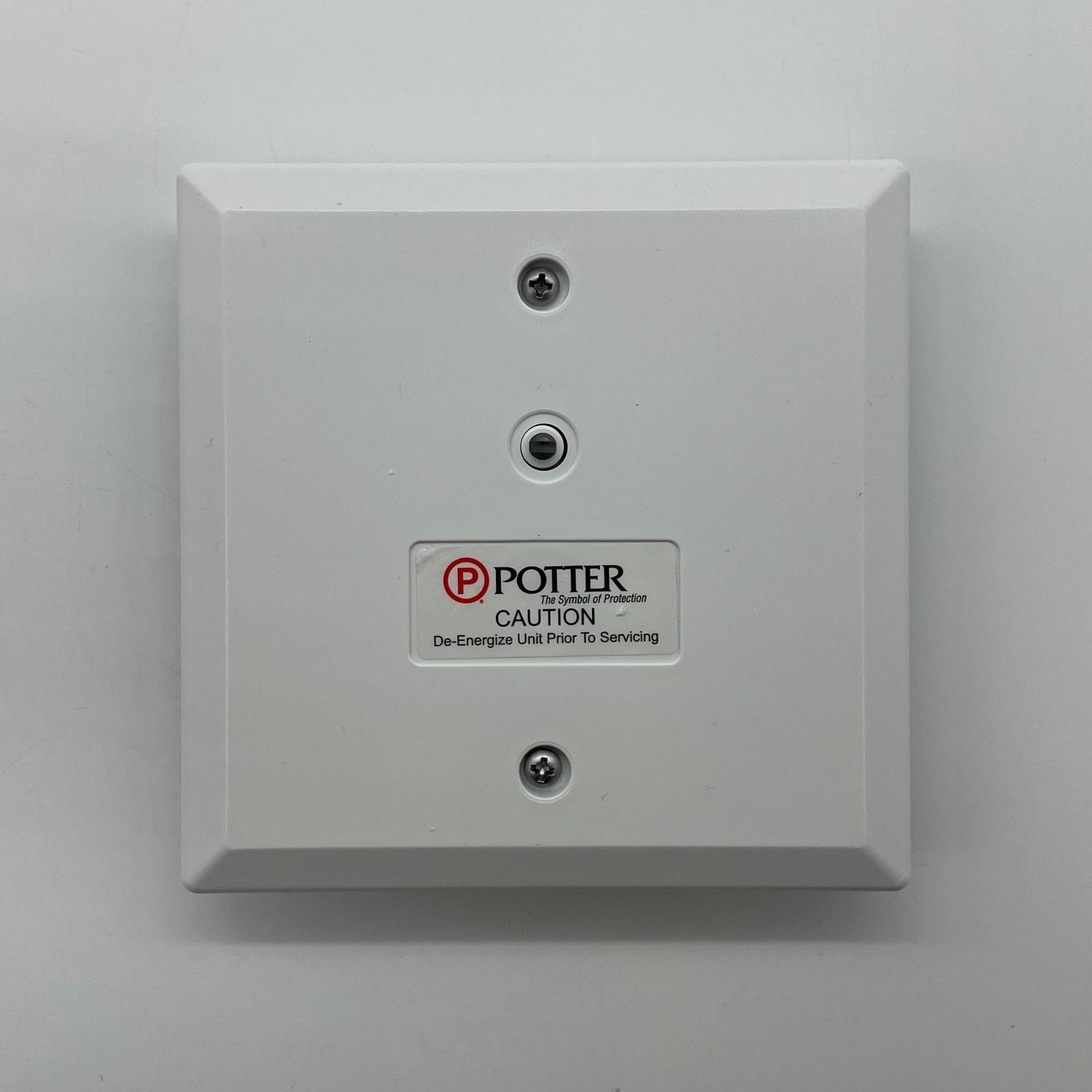

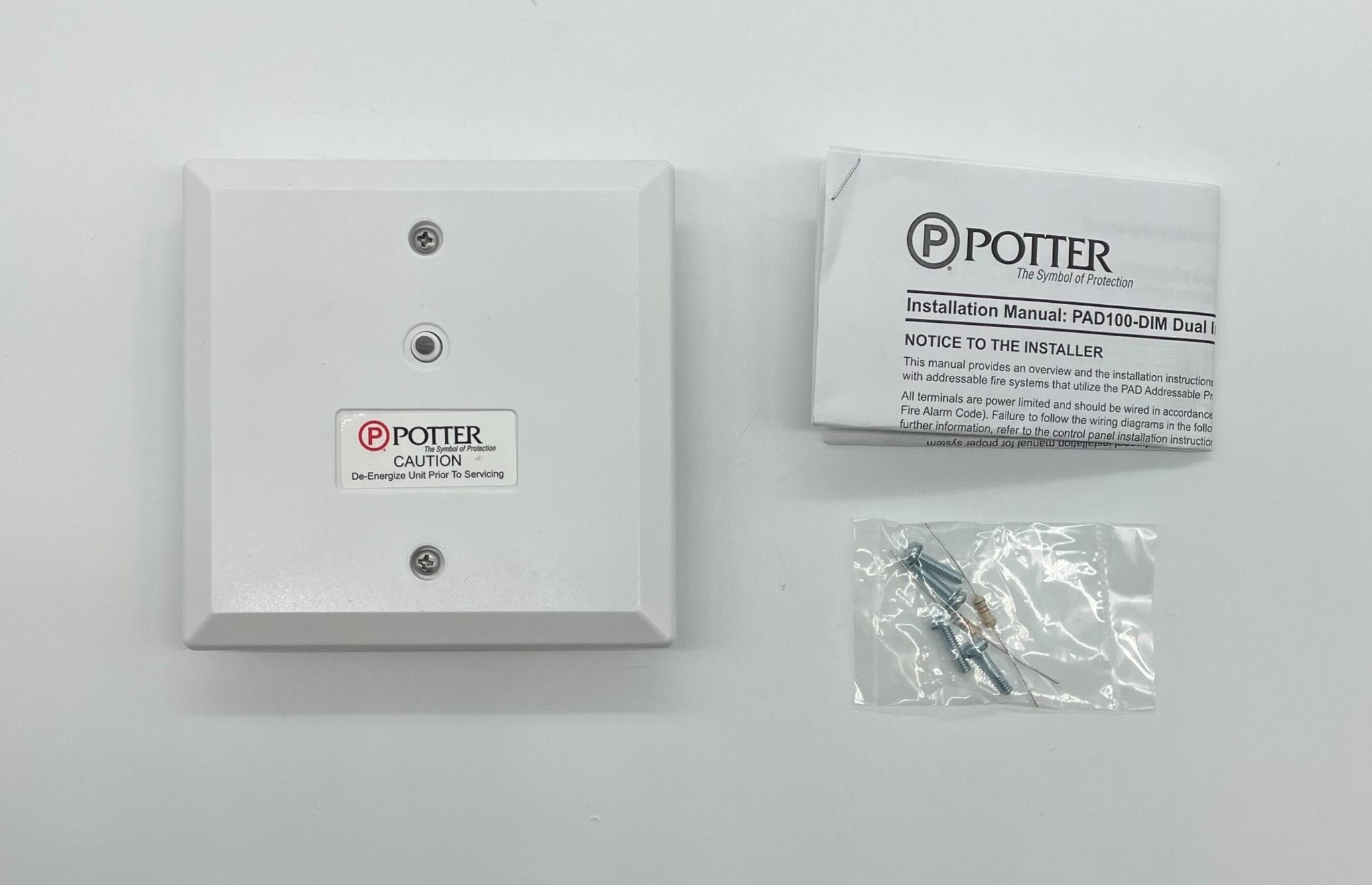

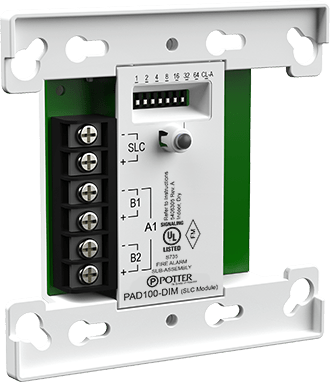

Potter PAD100-DIM — addressable dual input module monitoring two Class B circuits, or one Class A circuit, on a single SLC address.
Waterflow and valve tamper switches usually sit within a few feet of each other on the same riser, so covering them with two single-input modules burns an extra address and an extra backbox. The PAD100-DIM monitors both dry contacts from one enclosure and reports each input as a sub-point of the module address: set it to address 8 and the panel annunciates 8.1 and 8.2.
- 24.0V; max SLC standby and alarm current 240µA
- Two Class B inputs or one Class A input; SLC Class A, B and X
- EOL resistor 5.1KΩ; not required in Class A
- Max IDC resistance 100Ω, capacitance 1µF
- Up to 127 modules per loop; terminals accept 22 to 12 AWG

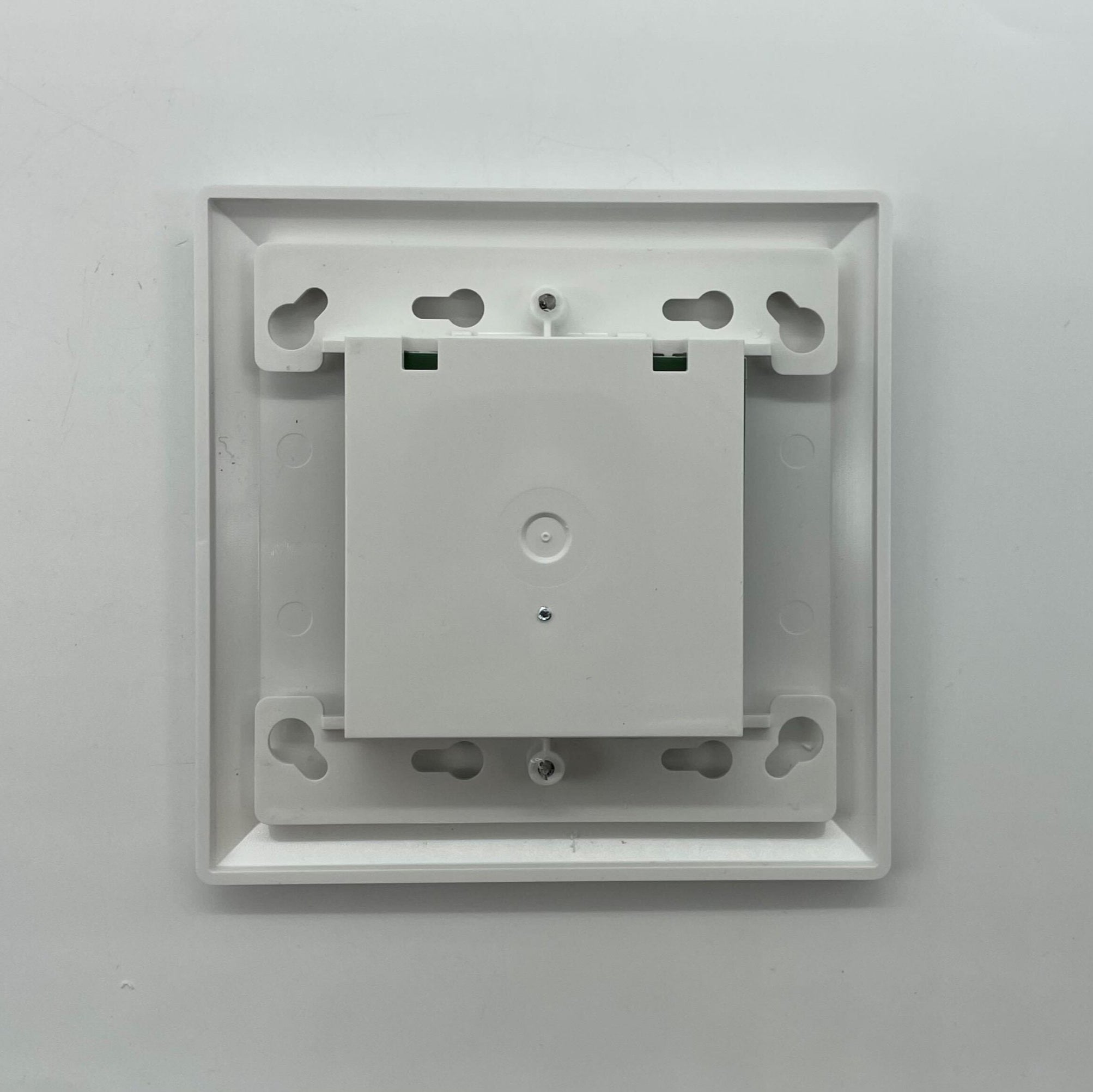

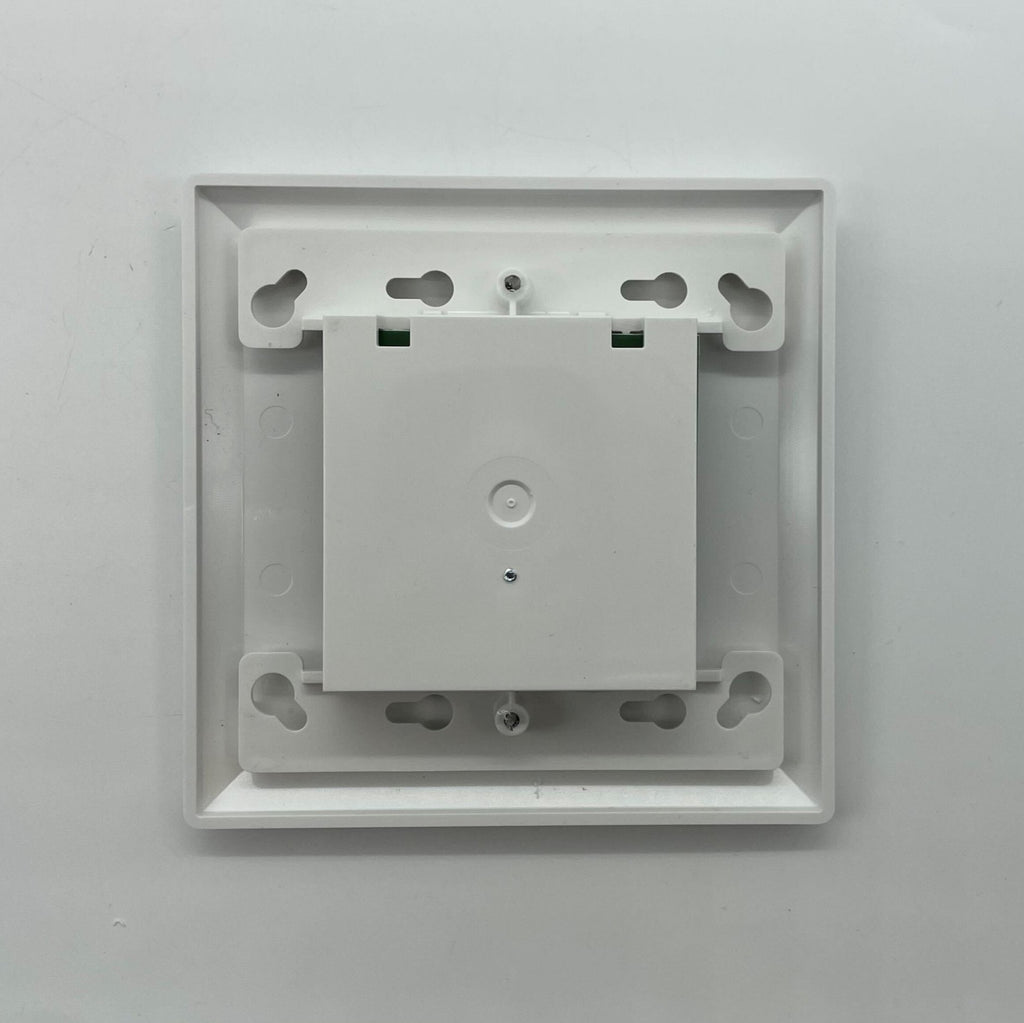

- Mounts in a 4" square or double gang box
Monitors dry contacts only — it does not support 2-wire smoke detectors. A Potter SLC device for IPA and AFC/ARC series panels; it will not communicate on another manufacturer loop.
Documents
FAQ
How many addresses does the PAD100-DIM use?
One SLC address. Each input is reported as a sub-point; for example, address 8 gives inputs 8.1 and 8.2.
What can it monitor?
Dry contact devices such as sprinkler waterflow switches, valve tamper switches or conventional pull stations: two Class B circuits or one Class A circuit.
Which panels is it for?
Potter IPA and AFC/ARC series addressable fire alarm control panels.
What EOL resistor does it use?
A 5.1K ohm end-of-line resistor, with up to 100 ohms and 1 µF of IDC wiring.
