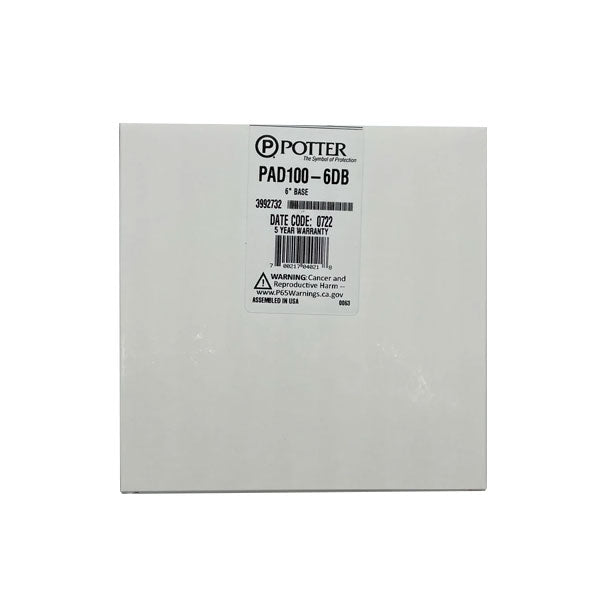

Potter PAD100-6DB — 6 in. low-profile surface mount base for Potter PAD-protocol addressable detector heads.

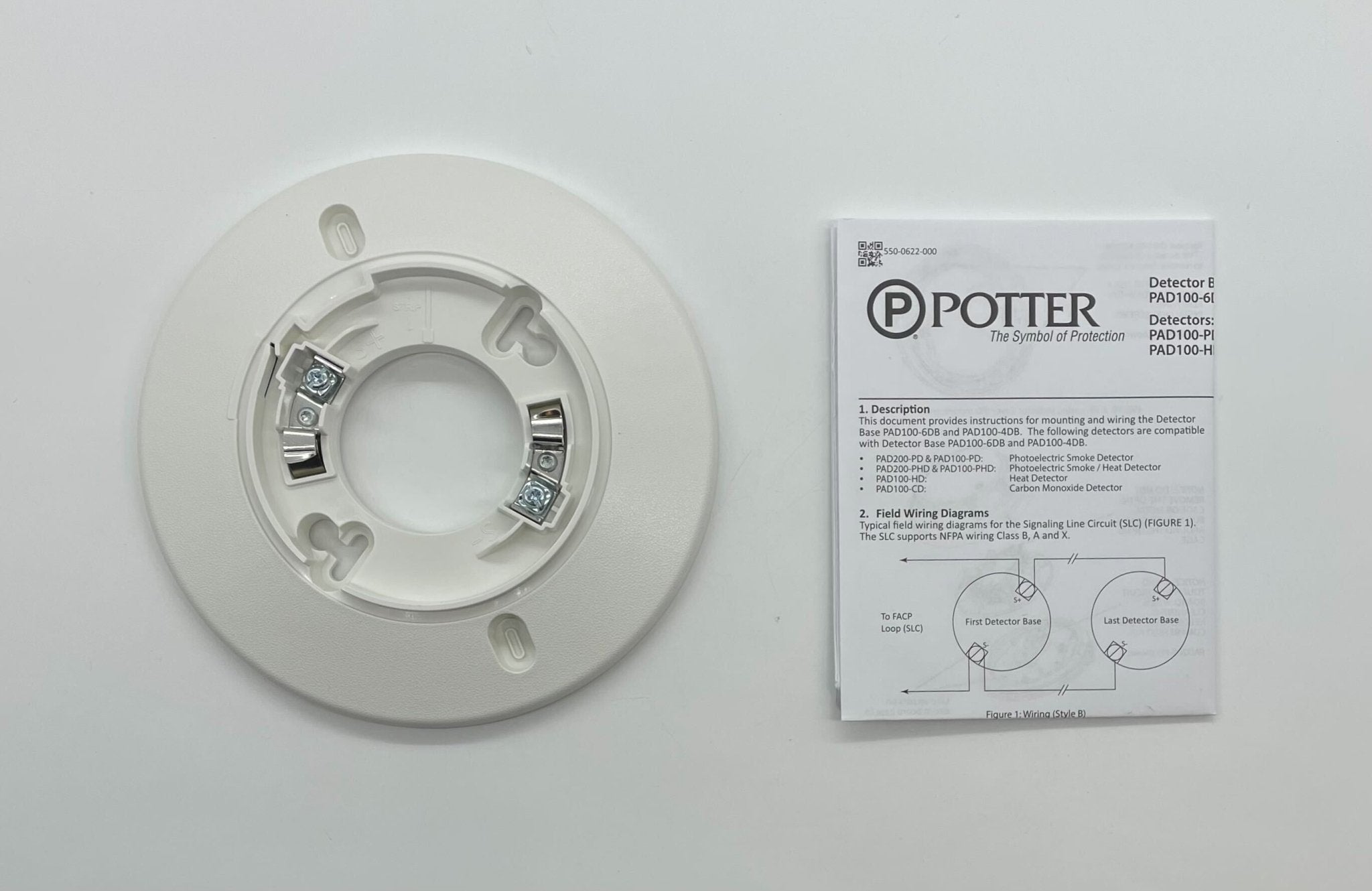

The base holds the signalling line circuit terminations and the detector twists into it, so a head can be replaced without touching the field wiring. Width is the point of the 6 in. version: it covers a recessed box and the area immediately around it.
- Takes the PAD100-PD, PAD100-PHD, PAD100-HD and PAD100-CD detector heads

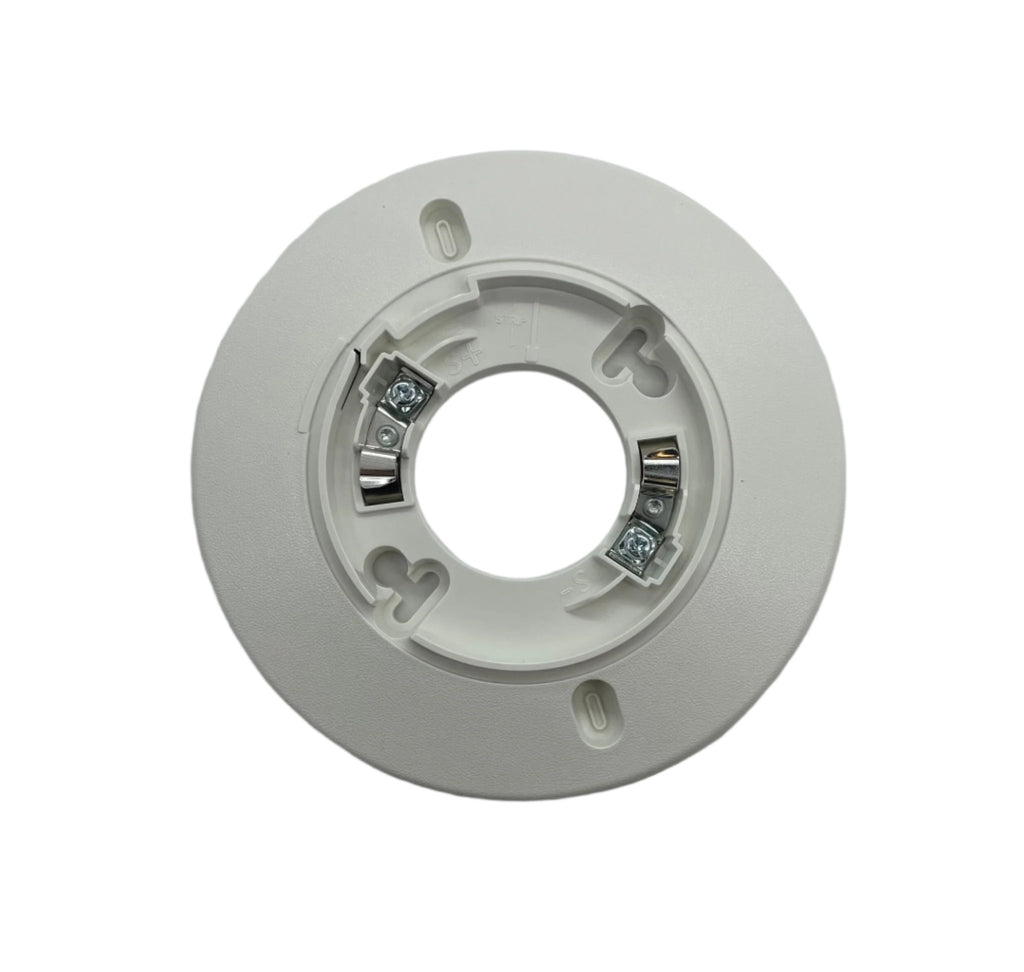

- Screw-clamp terminals accept 22 to 12 AWG, with duplicate in and out terminals marked for polarity
- Mounting holes suit a single gang, double gang, octagon or 4 in. square box

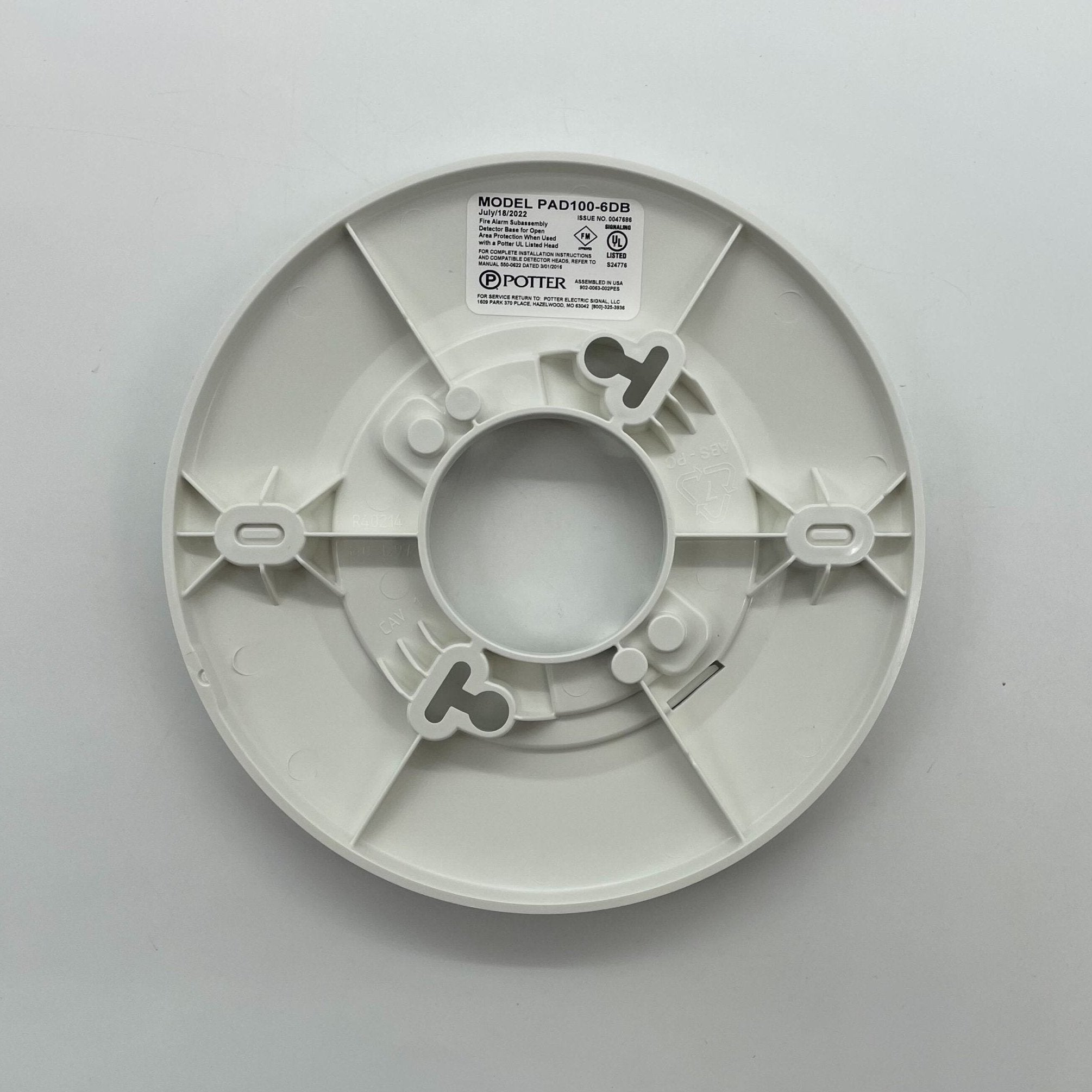

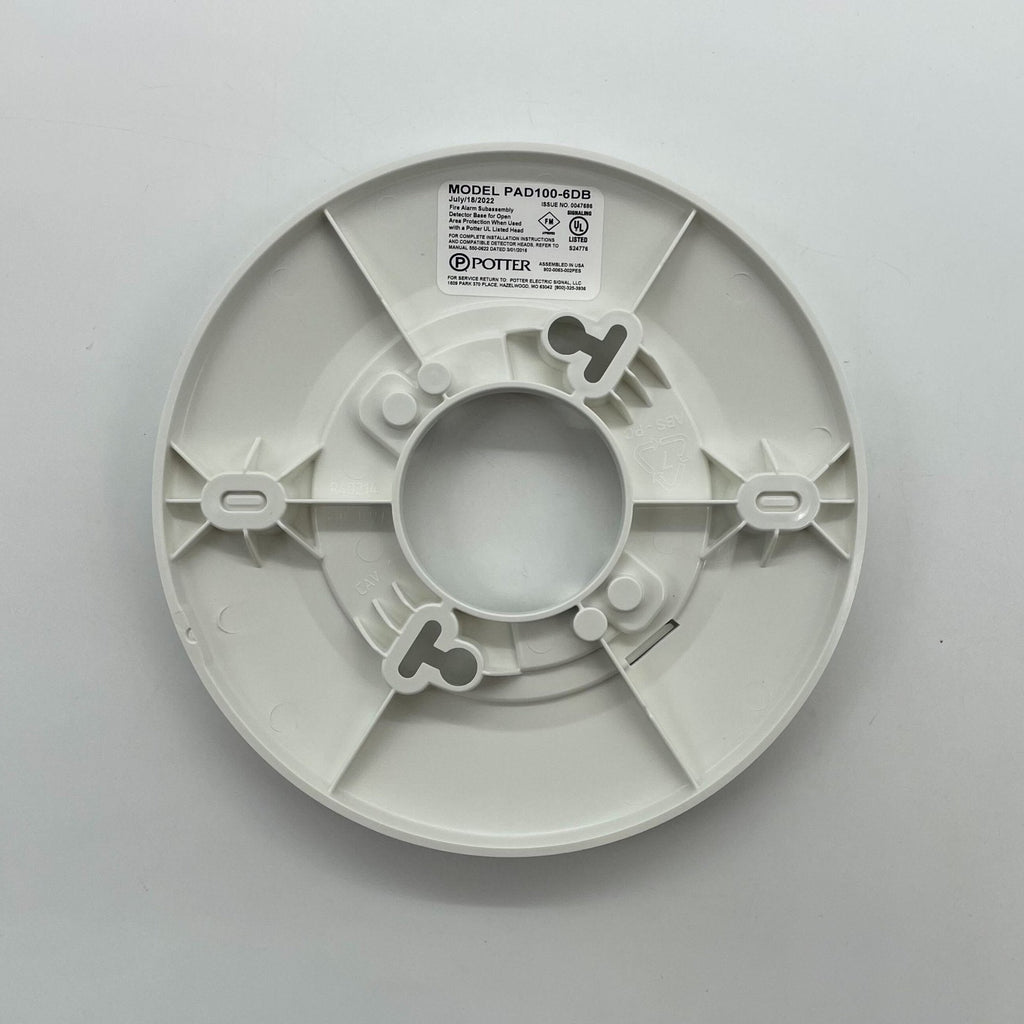

- 6.3 in. diameter, covering a recessed back box and its surrounding area
- Locking tab resists removal without a tool, and breaks off if that is not wanted
- 32 to 150 °F, 0 to 93% RH non-condensing; 87 g (3.07 oz)
- Supports Class B and Class A circuits, and Class X with PAD100-IB isolator bases
PAD100-4DB is the smaller 3.93 in. base and fits only a 3-1/2 in. octagon box, so it is not a drop-in where the wider cover is wanted. The base is unaddressed; the address is set on the head.
