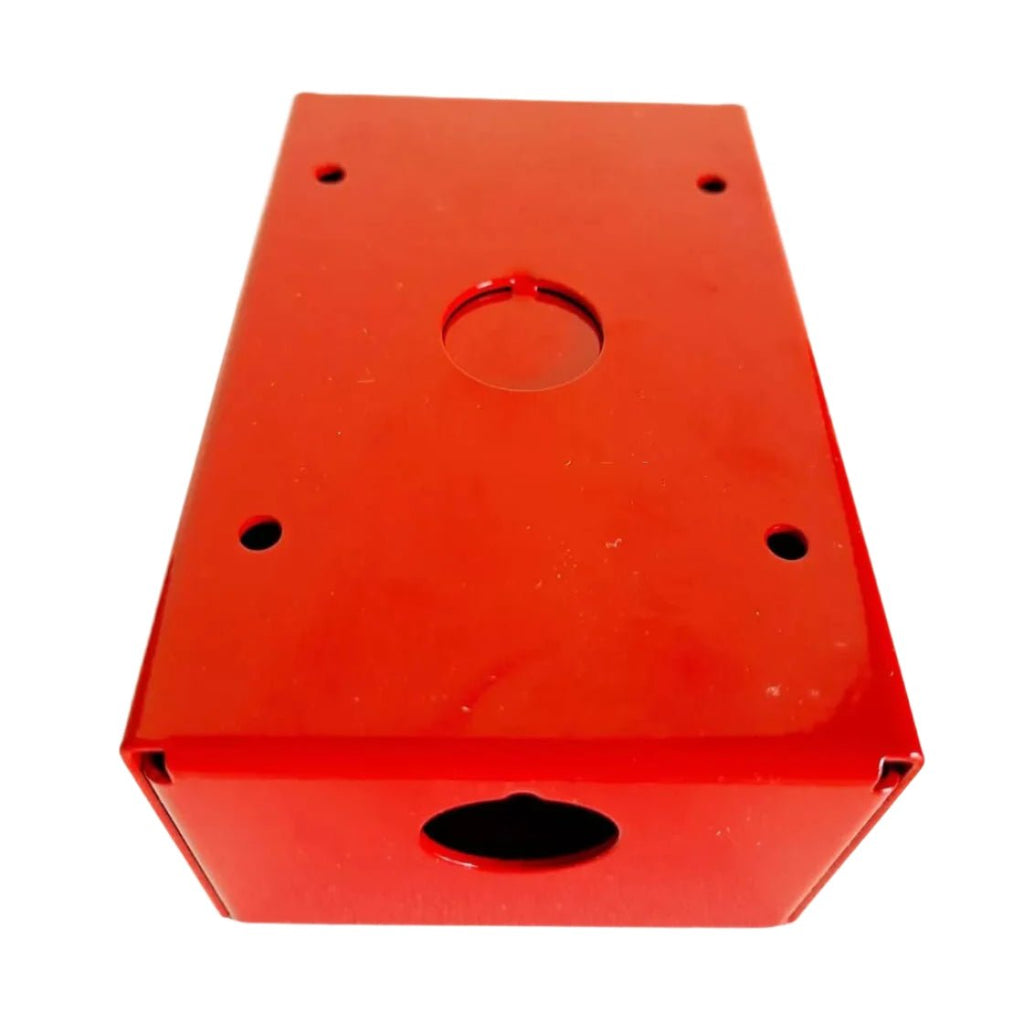

Potter P32-DBB — deep surface-mount back box for the Potter P32 Series die-cast manual pull stations, stock number 1000445.
A P32 Series station normally mounts on a single-gang box recessed into the wall. Where nothing can be recessed, it is fitted to a surface back box instead, and Potter catalogues that accessory in two depths. This is the deep one, for where conduit entry or wire count will not fit the shallow box.
- Listed by Potter as deep surface mount back box, stock number 1000445, in pull station bulletin 8900097 Rev N
- Accessory to the P32 Series: P32-1T single action, stock 1000447, and P32-1T-LP dual action, stock 1000476
- Station switch rating is 1 A at 30 VDC and 10 A at 125 VAC
- Box only — station, glass break rod and any auxiliary contacts carry their own catalogue numbers
Do not confuse it with P32-BB, stock number 1000444, the shallow surface back box one row above it in the same table, or with the weatherproof station RMS-1T-WP, which ships with its own weatherproof back box. Potter states no finish for either box.
