Potter MR-801/T — single-position SPDT multi-voltage control relay supplied with snap-track mounting hardware.

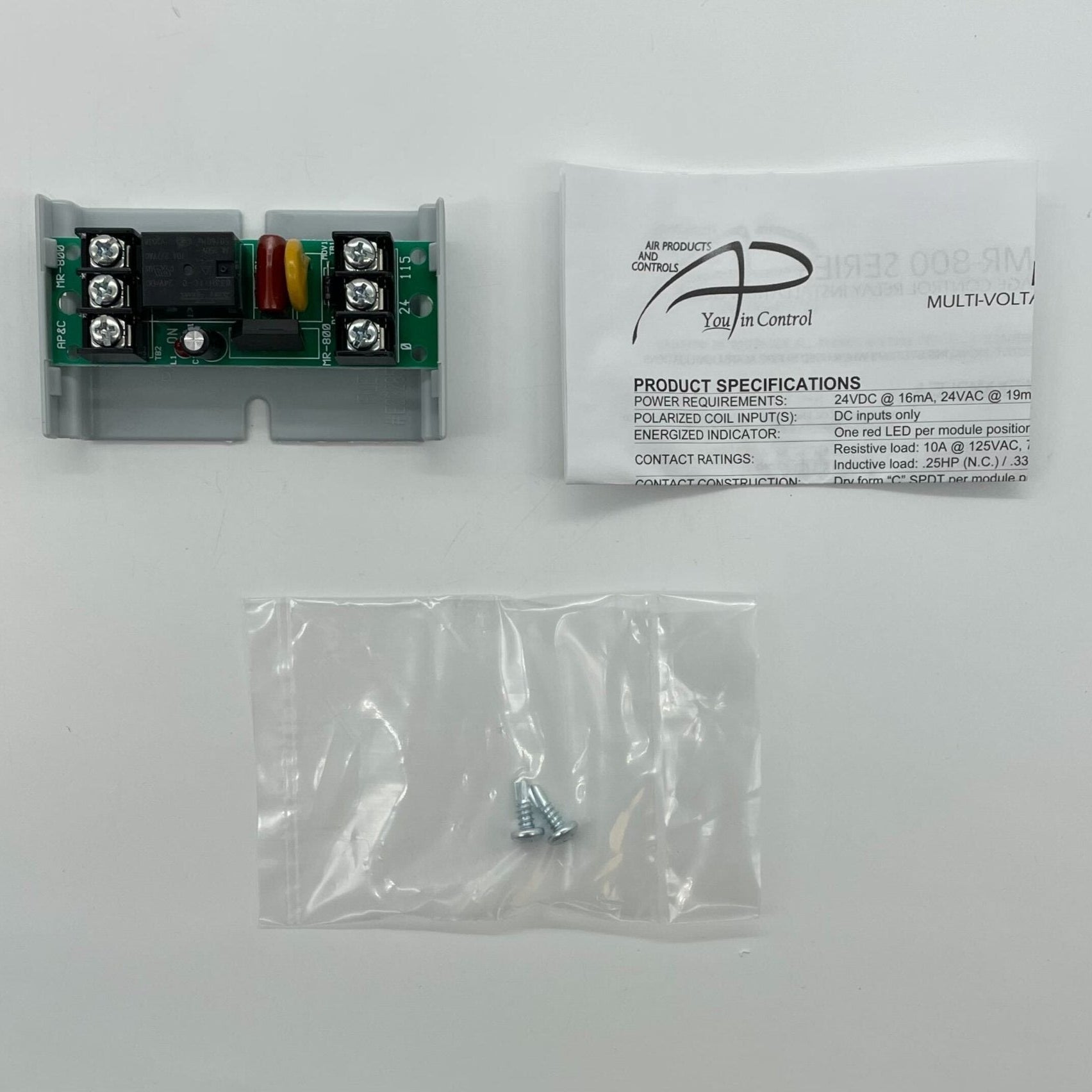

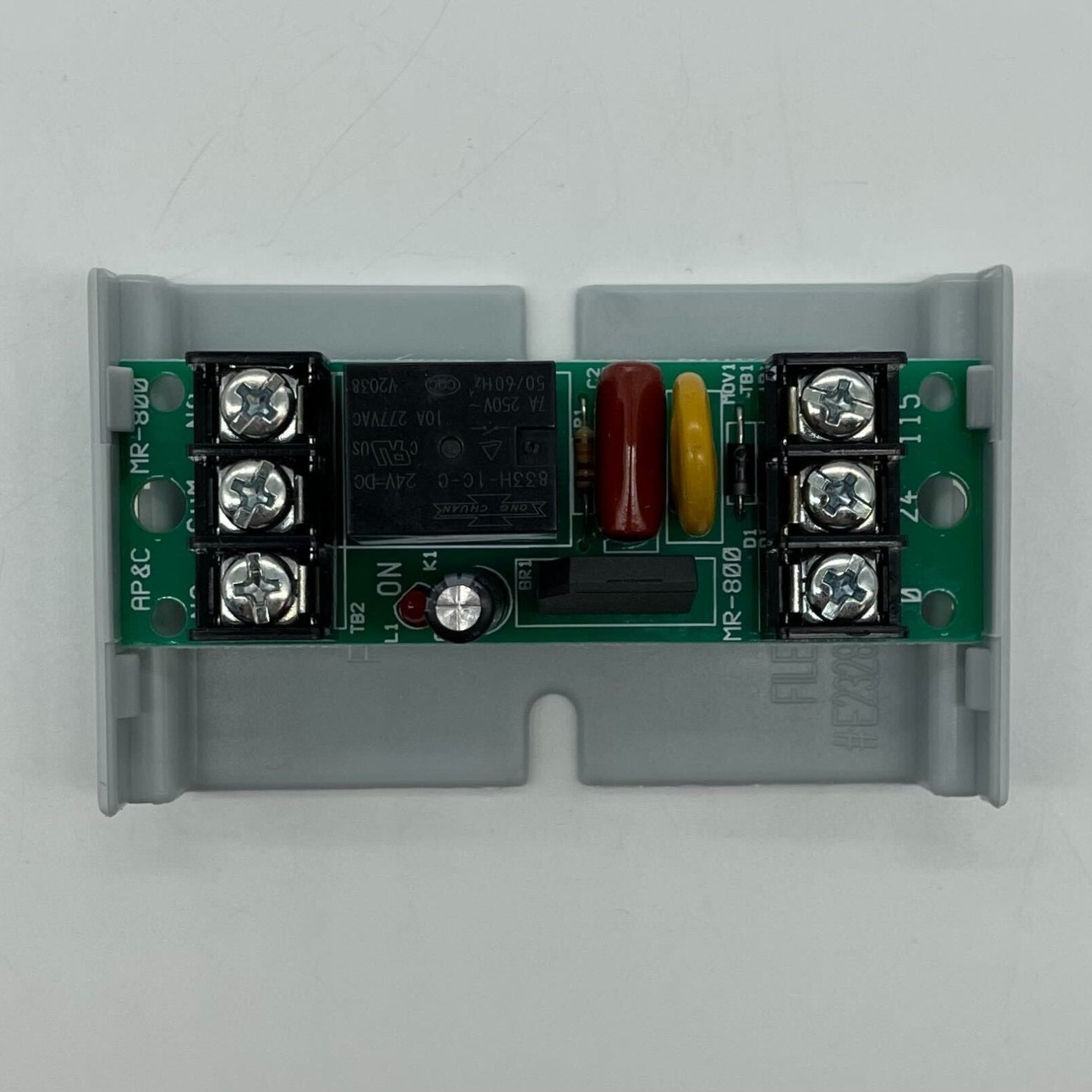

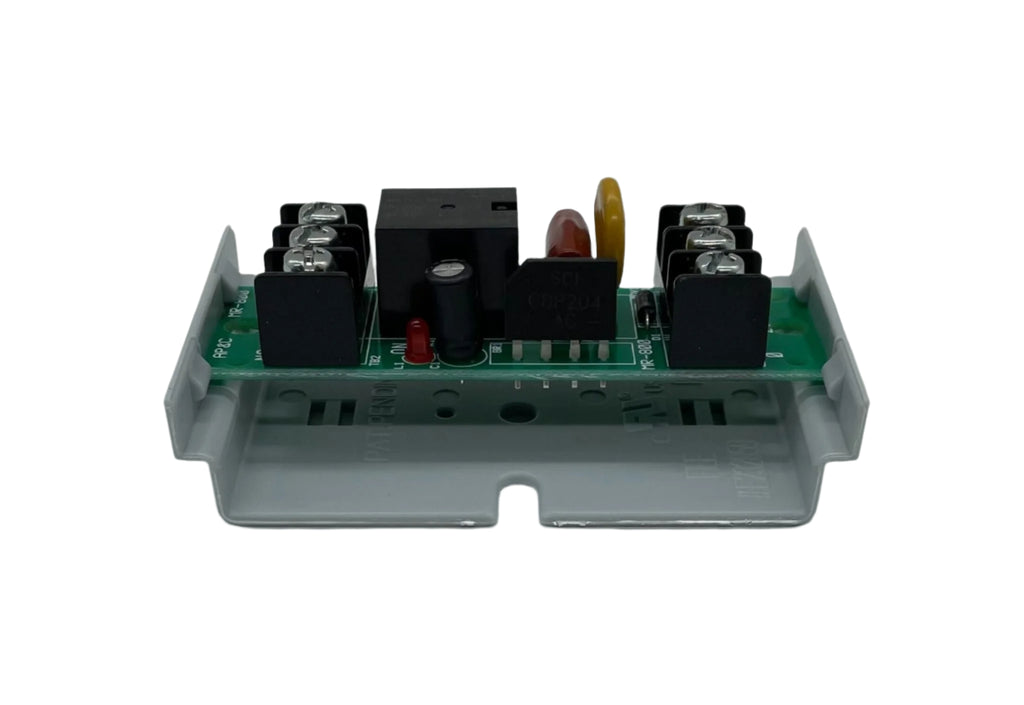

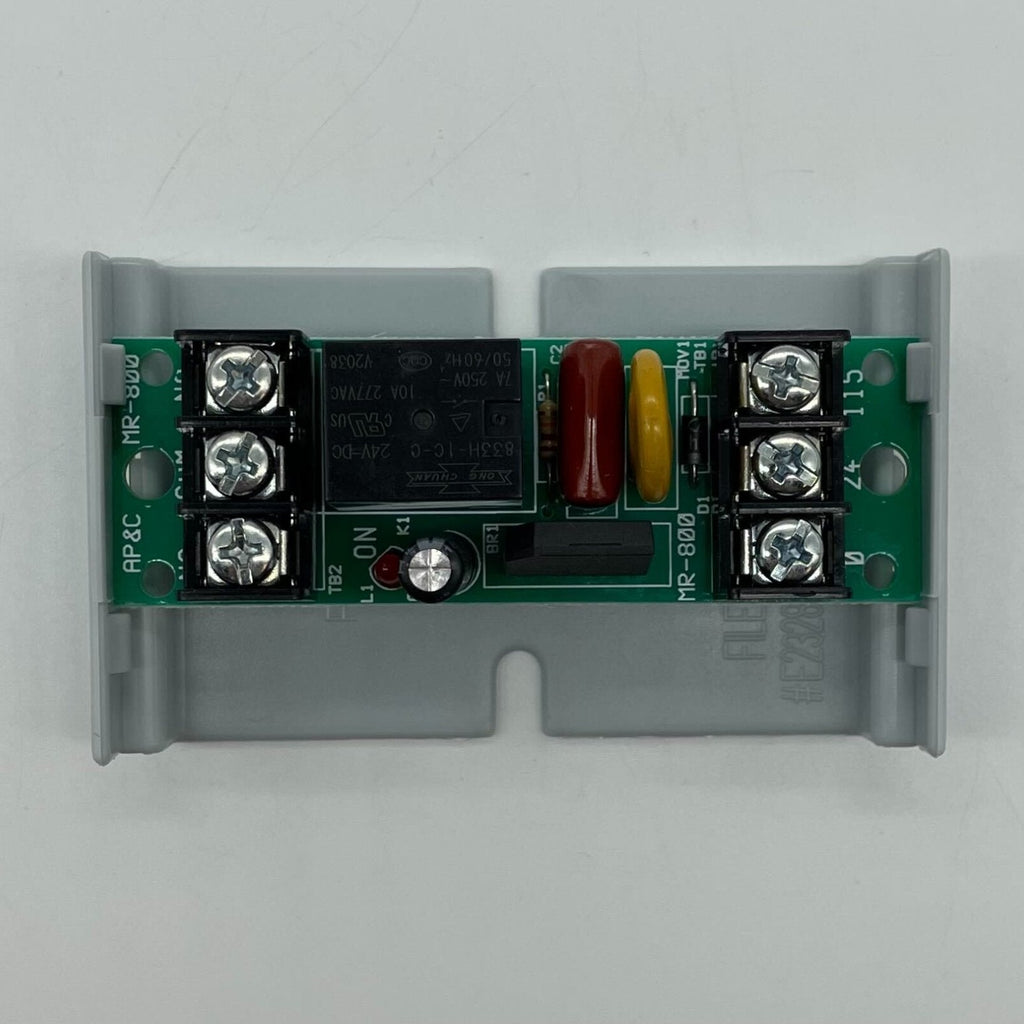

MR-800 Series relays give a fire alarm, HVAC or lighting panel local dry contacts able to switch a load at line voltage, with a red LED that lights when the coil is energized. The /T suffix is the mounting style: the relay ships with a 3.5 in. wide low-profile snap track and screws for fitting inside a standard cabinet, and takes the optional TK-CL DIN rail clip.
- One dry Form C (SPDT) contact, single position
- Resistive 10 A at 120 VAC, 7 A at 30 VDC / 277 VAC; inductive 0.25 / 0.33 hp at 120 / 250 VAC
- Coil 24 VDC at 22 mA, 24 VAC at 60 mA or 120 VAC at 26 mA; DC input polarized
- 3.50 × 2.00 × 1.375 in. H/W/D; 14 to 22 AWG terminals
- UL Recognized Component (UL 864, UOXX2, file S3403), not UL Certified
The suffix is the whole difference. MR-801/C and MR-801/C/R are the same relay in a grey or red enclosure and carry the UL Certification; MR-801/S ships with spacers; MR-804/T and MR-808/T have four and eight positions. Potter MR-101/T is a different SPDT relay, MR-201/T its DPDT counterpart.
