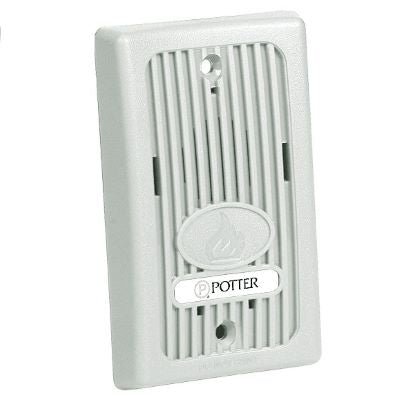

Potter MHT-1224W — low current mini-horn with off-white faceplate, Potter stock number 4890002.
The MHT-1224 series is a compact remote audible appliance for hotels, dormitories and apartments, certified to ANSI/UL 464 for fire protective service. One unit covers both voltages, operating on 12 or 24 VDC as determined by the applied input, and it is listed for filtered and unfiltered power. Breaking the on-board jumper gives a continuous tone; leaving it intact keeps temporal 3, and the horn can be synchronized with other Potter signals on an AVSM series control module.
- Minimum SPL at 10 ft per ANSI/UL 464: 86 dBA continuous and 81 dBA temporal 3 at 24 VDC; 83 dBA and 78 dBA at 12 VDC
- Current 22 mA at 24 VDC; ANSI/UL maximum 18 mA at 24 VDC, 13 mA at 12 VDC
- Listed range 8–33 VDC; horn frequency 3100 Hz
- 4.48" × 2.84" × 0.5"; terminals accept 12–18 AWG; indoor use, 32° to 120°F
The suffix is a colour code, not a mounting code: W is off-white and MHT-1224R is red, while MHT-1224PW and MHT-1224PR are the plain versions of the same horn.
