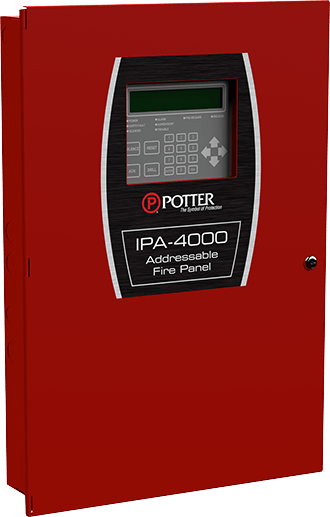

Potter IPA-4000 — expandable analog addressable releasing fire alarm control panel with a total system capacity of 4,064 addresses.
Releasing is not an option here. Potter rates the panel for release of fire suppression systems, gives it Pre-Release and Release indicators as standard, and builds its four I/O circuits for manual release stations and abort switches that react without waiting to be polled.
- Thirty-one further signaling line circuits beyond the onboard loop, each up to 127 devices
- 10 A supply; six notification appliance circuits at 3 A and four I/O circuits at 1 A
- 4 x 40 LCD, 1,500 software zones, 200 logic points, 4,000 event history buffer
- Battery charger 8–55 Ah at 27.3 VDC; 130 mA standby, 220 mA alarm
- 18 15/16 × 27 5/16 × 4 7/16 in., 16 gauge steel, locked door with Lexan window
- ANSI/UL 864 and IBC; NFPA 12, 12A, 13, 15, 16, 17, 17A, 70, 72, 92, 750, 2001; UUKL smoke control
The cabinet houses batteries to 18 Ah but does not supply them. Capacity grows with PAD100-SLCE loop cards and PSN-1000 supplies, which also extend releasing. IPA-4000V is the integrated voice version.
Documents
FAQ
How large can an IPA-4000 system grow?
The expandable analog/addressable releasing system has a total capacity of 4,064 points, with up to thirty-one additional addressable SLCs.
How much power is available for NACs?
10 amps total for NACs, I/O and P-Link, with 3 amps per regulated NAC and 1 amp per regulated I/O circuit.
What batteries can it charge?
The charger supports 8 to 55 Ah batteries at 27.3 VDC.
