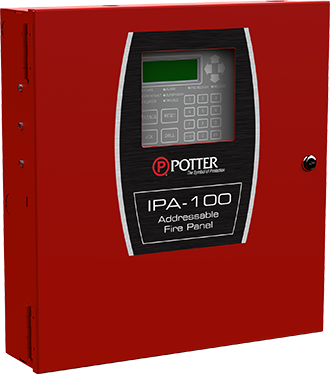

The Potter IPA-100 is an analog/addressable releasing fire alarm control panel with a total system capacity of 127 addresses, using Potter's protocol and its line of sensors and modules. Additional capacity comes from multi-point SLC modules, and the SLC allows 50 ohms of impedance on any NEC-compliant wire.
It is certified for releasing of fire suppression systems, with software cross zones, counting zones and timers, and multiple release outputs across multiple hazards. The built-in IP communicator and Ethernet port support programming, network connectivity and e-mailed status reports.
Specifications
| Capacity |
127 addresses; 99 software zones |
| Power supply |
5 A for NACs, I/O and P-Link; expandable to 310 A |
| NACs |
2, regulated, 3 A each; expandable to 188 |
| I/O circuits |
2, 1 A each, for manual release and abort |
| AC mains |
3.0 A at 120 VAC or 2.0 A at 240 VAC, 50/60 Hz |
| Current |
130 mA standby; 200 mA alarm |
| Battery charger |
8 to 55 Ah at 27.3 VDC; cabinet holds up to 18 Ah |
| Event history |
4,000 events |
| Dimensions |
16 x 17 x 3-7/8 in. (W x H x D) |
| Operating environment |
32 to 120°F (0 to 49°C), 93% RH max non-condensing |
Features
- Each output programmable for steady, strobe sync, constant power, door holder power or releasing
- Quadrasync synchronizes Potter/AMSECO, Gentex, System Sensor and Cooper Wheelock strobes, even with mixed brands
- Class A or Class B for SLC, P-Link and NACs
- Dedicated alarm, supervisory and trouble relays
- Optional two-line DACT with the UD-2000
- NFPA 72 compliant smoke sensitivity test built in; UUKL certified for smoke control
Related models
NACs can be expanded with PSN-1000 series power supplies (10 A and 2 inputs each, up to 31), and the PSN-1000E houses up to six loop expansion cards. The IPA-4000 is the larger panel in the series.
Documents
FAQ
How many devices does the IPA-100 support?
127 addresses, with more capacity available through multi-point SLC modules, and 99 software zones.
Can it release suppression systems?
Yes. It is certified for releasing, with cross zones, counting zones and timers, and can control multiple release outputs across multiple hazards.
How can NAC power be expanded?
With PSN-1000 series intelligent power supplies, each adding 10 A and two input circuits; the IPA-100 supports up to 31 of them.
What batteries does it take?
The charger handles 8 to 55 Ah at 27.3 VDC, and the cabinet houses batteries up to 18 Ah.
