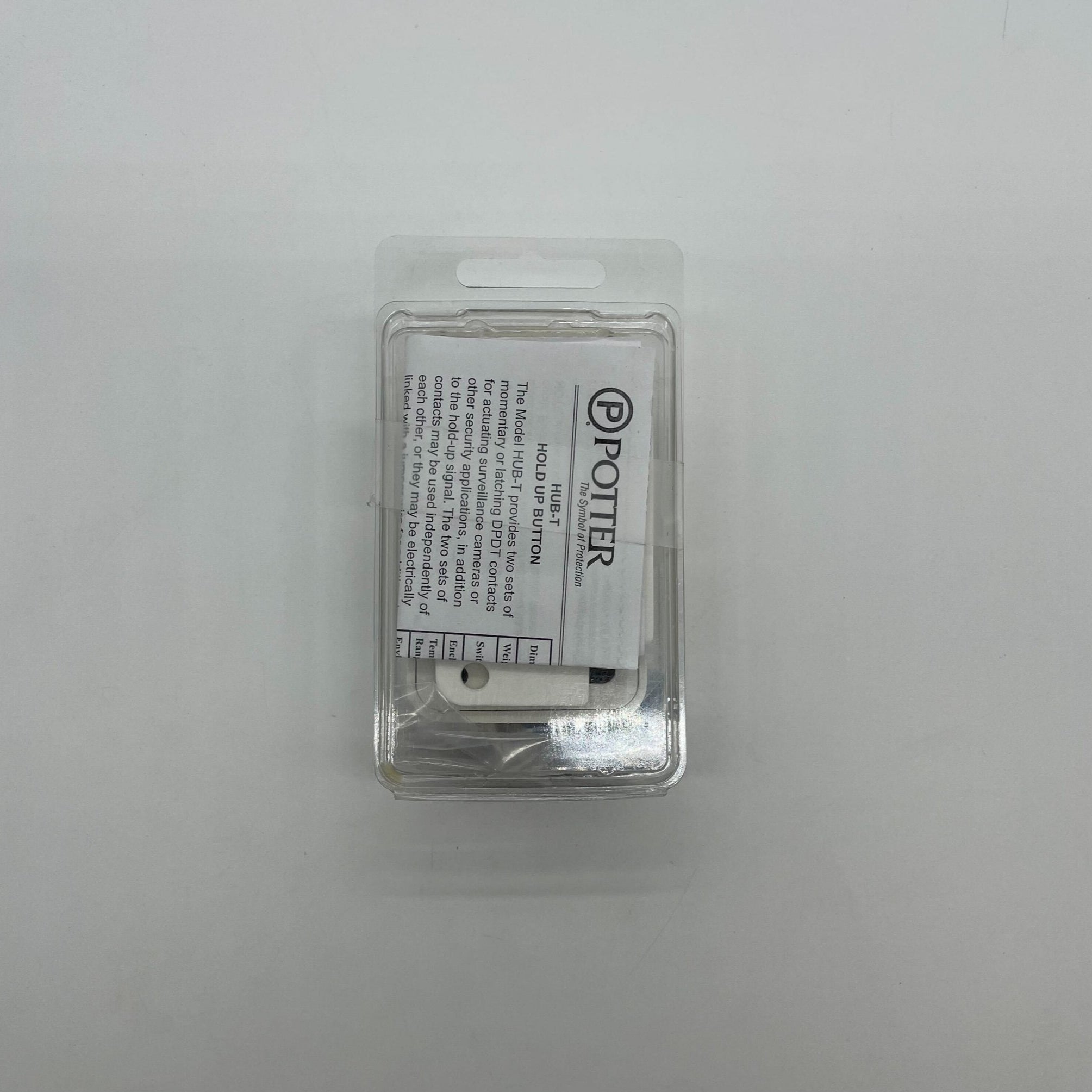

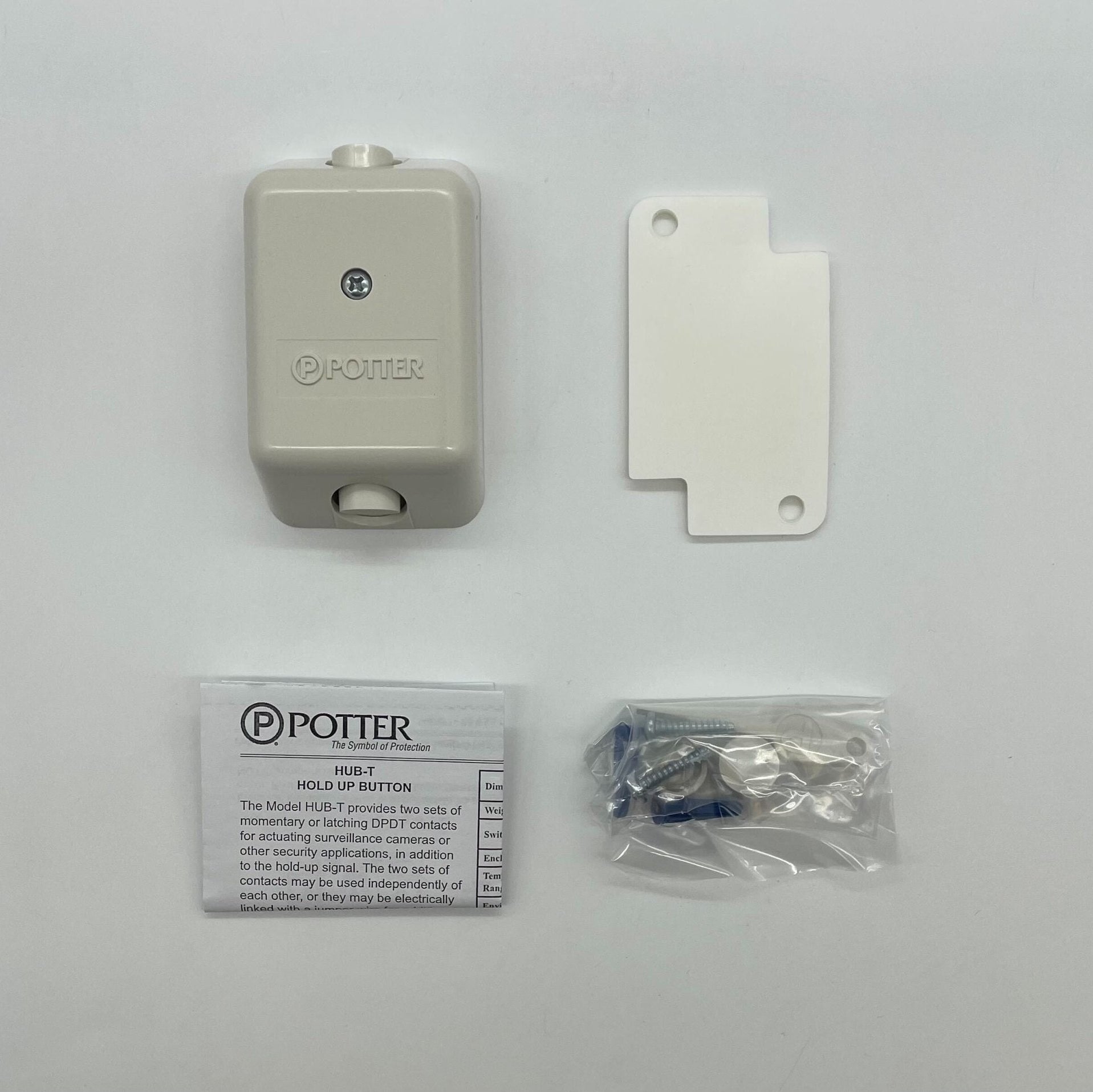

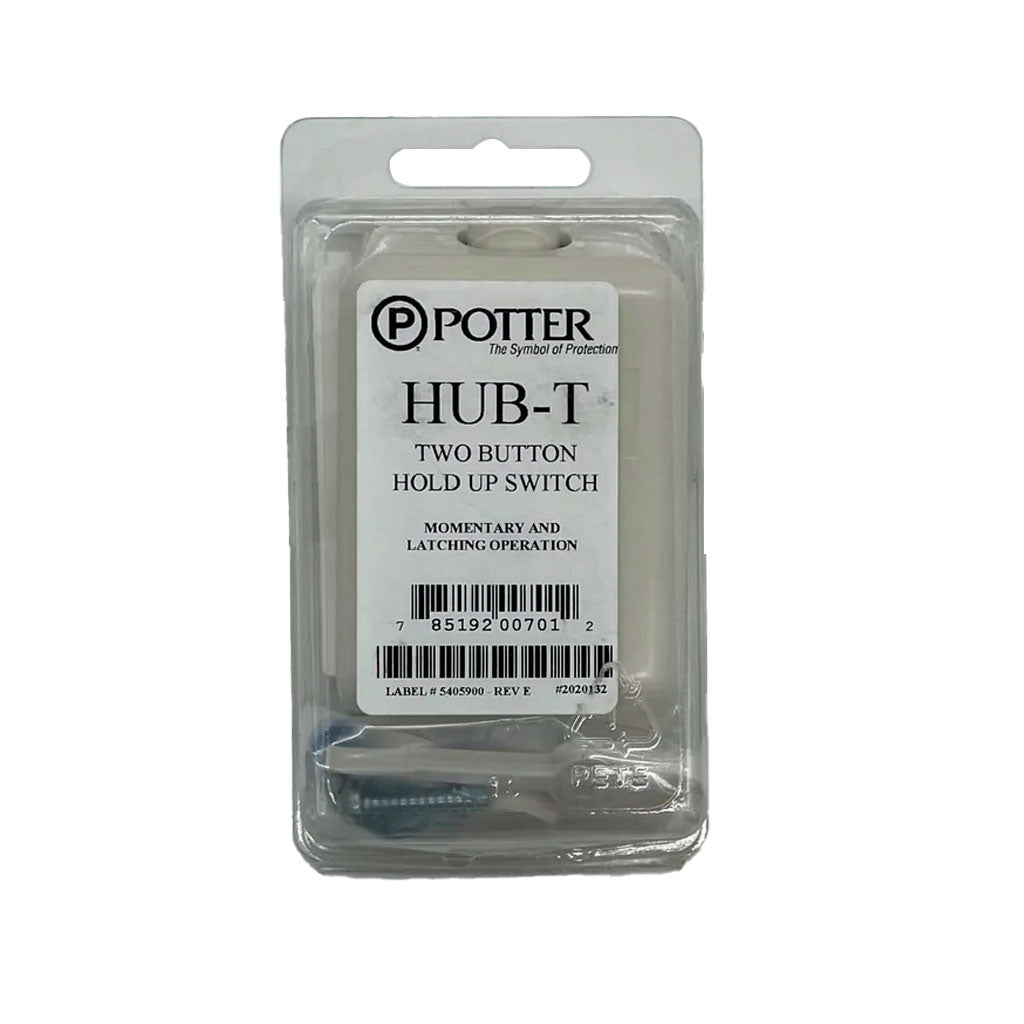

Potter HUB-T — complete two-button hold-up switch carrying two independent sets of DPDT contacts, Potter stock number 2020132.
A hold-up device does two jobs at once: raise the alarm and start whatever else the site wants running. Each button gets its own DPDT set, so one pair can trip the hold-up zone while the other starts a camera. Jumpered in series, both buttons must be pressed before the zone trips.
- Two sets of momentary or latching DPDT contacts, used independently or wired in series with a jumper
- Contacts rated 3 A at 28 V DC or AC, and 0.05 A at 125 V DC resistive
- Latching caps supplied; swap the installed caps to convert from momentary operation
- Unlatches with the reset key supplied with it, inserted between the switch cap and the base
- ABS plastic, 2-1/16 " W × 3-7/16 " L × 1-1/4 " H, 2.4 oz, indoors only
- UL and cUL certified, installed to UL 681; 32 to 140 °F at up to 85 percent humidity
The HUB-M (stock 2020130) is the single-button unit with one DPDT set, and it unlatches with a pointed object rather than a key. HUSD-15BM and HUSD-15BL also carry two buttons but switch SPDT.
