Potter HUB-M — single-button hold-up switch with one set of momentary or latching DPDT contacts in a compact ABS housing.
A hold-up button is the fixed, silent panic switch mounted out of public view at a teller window or reception desk. Potter describes the HUB-M as providing momentary or latching DPDT contacts for actuating surveillance cameras or other security applications, and directs installation to UL 681.
- One set of DPDT contacts, 3 A at 28 V AC or DC, 0.05 A at 125 V DC resistive

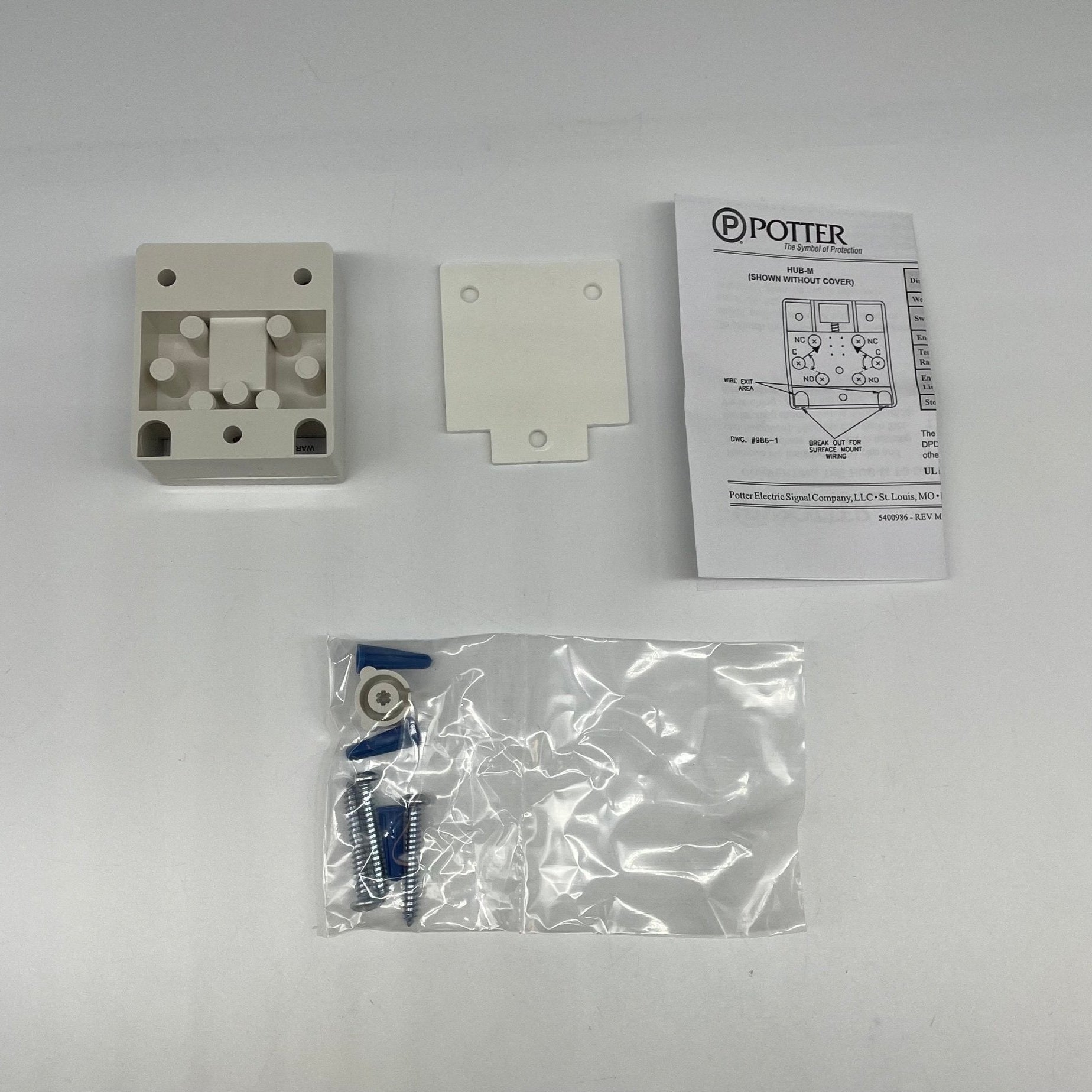

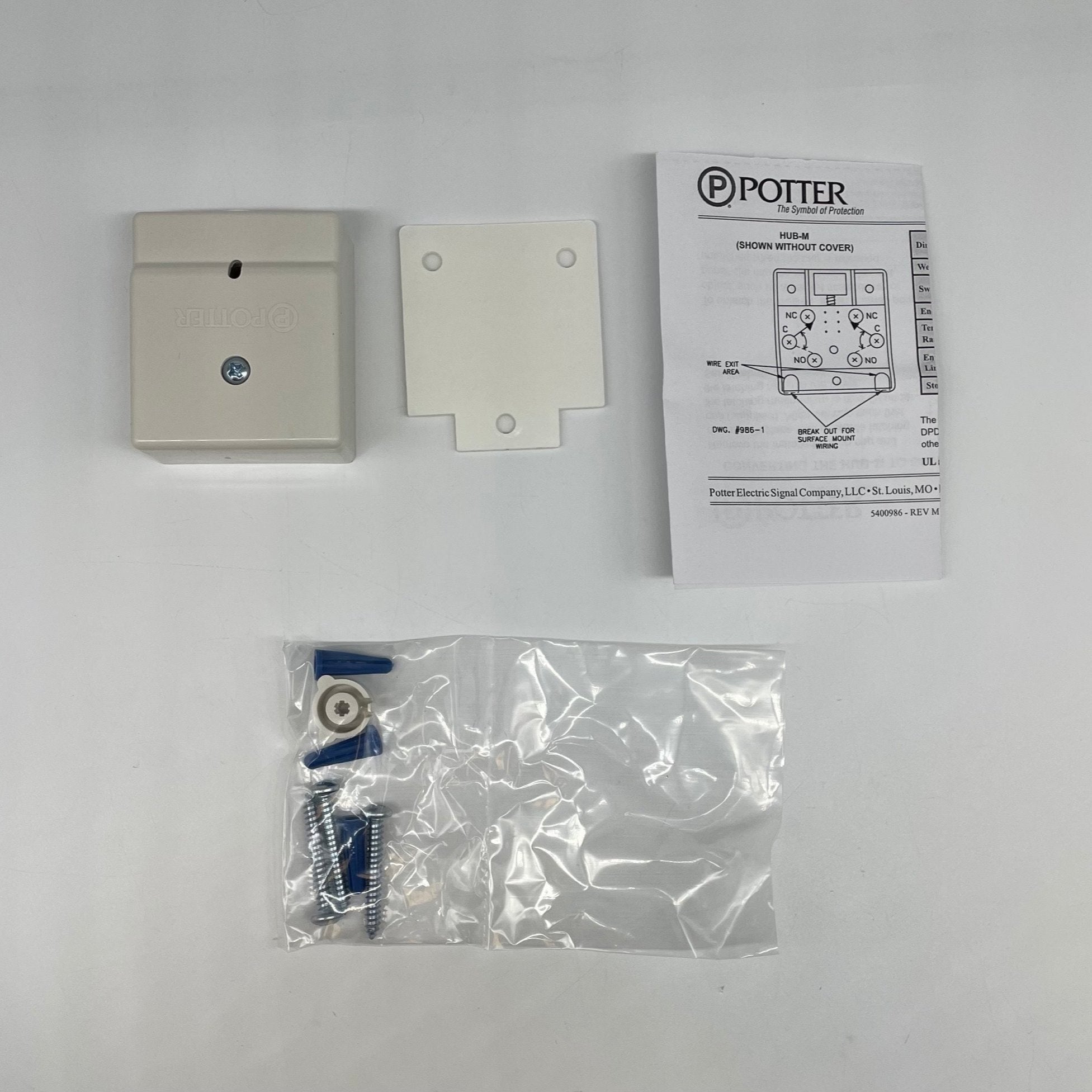

- Ships momentary; an alternate latching cap is supplied in the box, seated under the latching ramp in the cover
- Reset with a pocket screwdriver or paper clip through the reset hole
- ABS enclosure, 2 in. W × 2-5/16 in. L × 1 in. H, 1.5 oz
- 32 to 140 °F, 85 percent humidity maximum; not for outdoor or freezer use
- UL and ULC Certified; Potter stock number 2020130
The dual-button HUB-T is a different device, not a variant: two independent sets of DPDT contacts, wireable in series for interlocked operation, a larger 2-1/16 by 3-7/16 in. body, and a supplied reset key rather than a reset hole.
