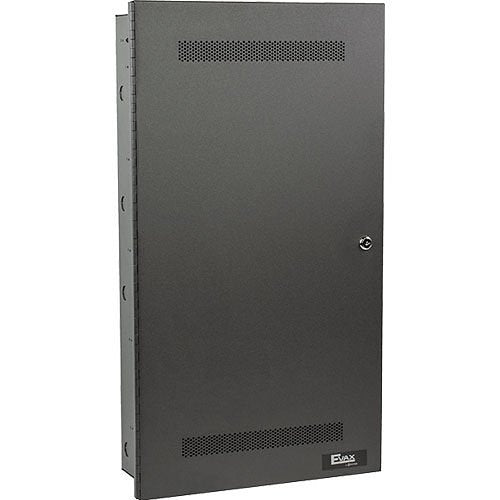

Potter EVAX-150/8Z — 150 W voice evacuation system with eight speaker zones, charcoal grey cabinet.
The EVAX-150 connects to a fire alarm control panel and broadcasts tone and a recorded evacuation message over supervised speaker circuits until the panel is reset or an operator takes over with a live page. The digital message repeater, paging microphone, 120 VAC power supply and battery charger are all built in. Speaker zones can be set for general alarm or alarm by zone, and the system suits churches, restaurants, theaters, auditoriums and high-rise buildings.
Specifications
| Output |
150 W |
| Speaker zones |
8 (EVX-ZM-ASSM zone cards included) |
| Speaker circuits |
25 or 70 VRMS, field selectable, Class A or B |
| Message |
8 MB MP3 digital message repeater, standard 15-second message |
| Primary power |
120 VAC |
| Battery backup |
24 hours with two 12 V 7 Ah batteries |
| Cabinet |
14.5 x 27 x 4 in. (W x H x D), surface or semi-flush, hinged locking door |
| Weight |
32 lb (14.5 kg) |
Features
- Live microphone override of message and tone; removing the microphone causes a trouble condition
- Works with 12 or 24 VDC fire alarm panels, including analog addressable and networked systems
- Secondary message triggered by a contact closure from the panel or any normally open device
- Remote paging microphones on a supervised circuit, up to 5,000 ft away
Related models
-
EVAX-200 — 200 W version.
-
EVAX-50 and EVAX-25 — smaller voice evacuation panels.
Documents
FAQ
Does it work with any fire alarm panel?
It works with 12 or 24 VDC fire alarm panels, including microprocessor-based, analog addressable and networked systems.
How many speaker zones does the /8Z have?
Eight speaker zones; the zone cards (EVX-ZM-ASSM) are included. 12- and 16-zone versions are also offered.
What speaker voltage does it use?
25 or 70 VRMS, field selectable, on Class A or Class B speaker circuits.
What battery backup does it need?
Two 12 V 7 Ah batteries give 24 hours of backup.
