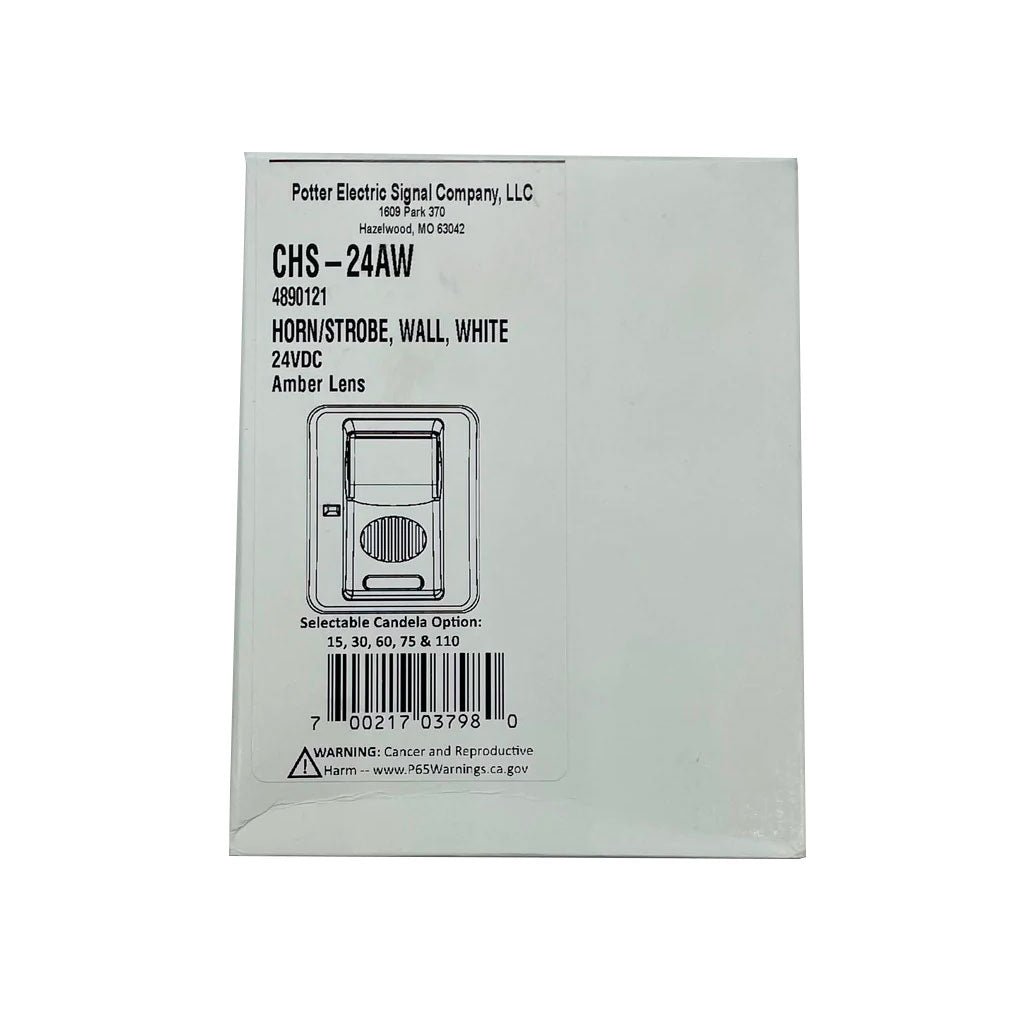

Potter CHS-24AW Wall Mount Selectable Horn/Strobe Amber Lens White Body
The CHS-24AW is an indoor, wall-mount horn/strobe with an amber lens and off-white body from the Potter CS/CHS colored lens series. It is a 24 VDC low-profile signal with field-selectable candela (15, 30, 60, 75, 110) and switch-selectable horn tones, intended for warning and emergency notification such as emergency communication or severe weather alerts.
Key Features
- Amber lens, off-white body, plain (no wording); AGENT/ALERT bezels ordered separately
- Tamperproof field-selectable candela: 15, 30, 60, 75, 110
- Switch for chime, whoop, mechanical and 2400 Hz tones; continuous or temporal 3

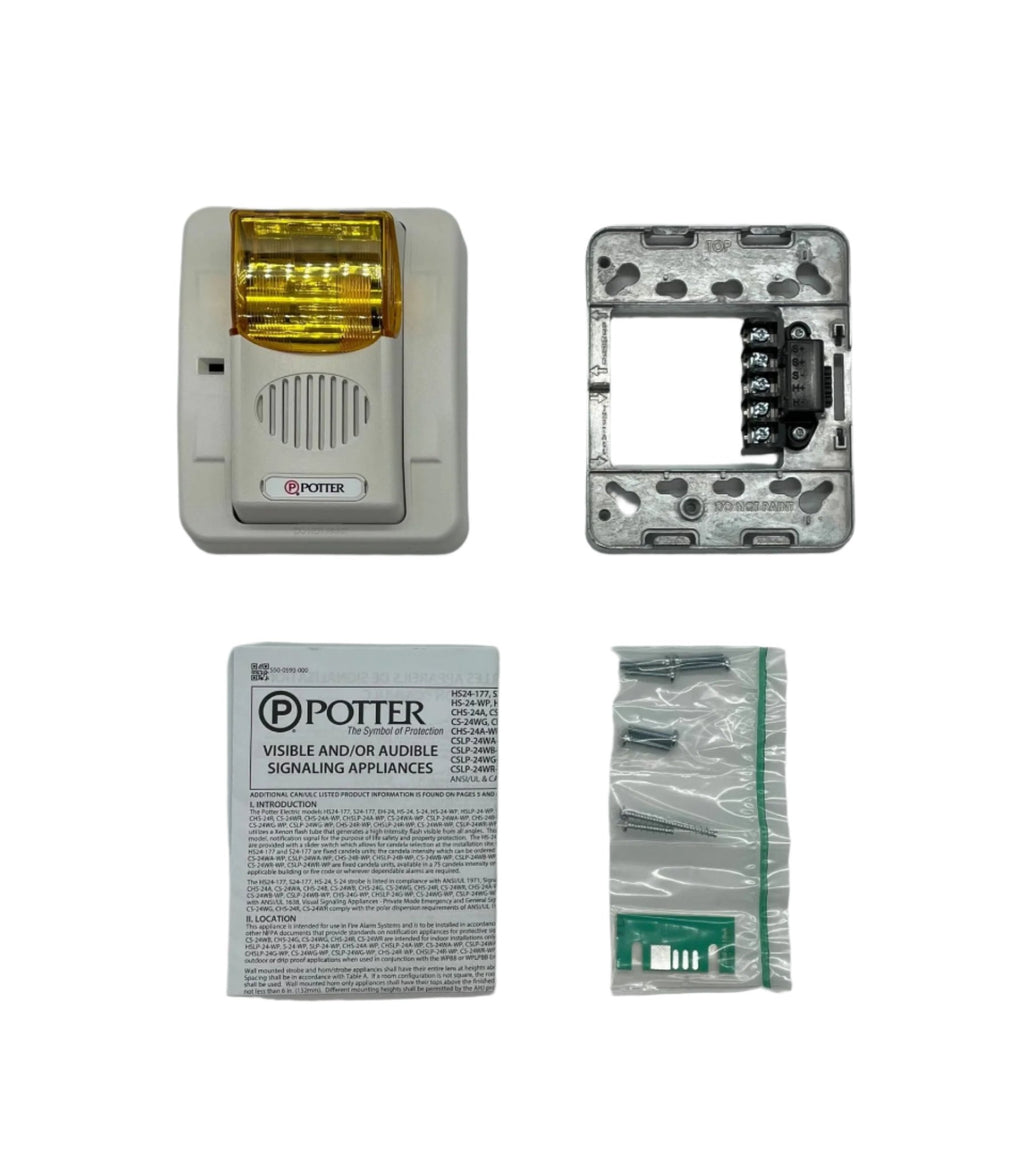

- Super-Slide mounting bracket for pre-wiring and supervision testing
- Checkmate instant voltage verification
- Synchronizes with the AVSM sync module or a Gentex sync protocol
- Minimum 1 Hz flash rate regardless of input voltage
- ANSI/UL 464 and UL 1638 listed; CSFM 7135-0328:0210
Specifications
| Model |
CHS-24AW |
| Stock number |
4890121 |
| Lens color |
Amber |
| Body color |
Off-white |
| Operating voltage |
Nominal 24 VDC (16-33 VDC) |
| Candela settings |
15, 30, 60, 75, 110 |
| Sound output |
62-82 dBA reverberant at 10 ft (UL 464); 100 dBA anechoic at 10 ft |
| Amber strobe current, regulated 24 VDC max |
47 mA (15 cd), 64 mA (30), 113 mA (60), 145 mA (75), 178 mA (110) |
| Environment |
32 F to 120 F (0 C to 49 C), indoor only |
| Dimensions |
5 in. H x 4.5 in. W x 2.5 in. D |
| Wiring |
Terminals accept 18-12 AWG |
| Mounting |
Single-gang, double-gang or 4 in. square backbox; surface mount with AVBB |
| Shipping weight |
1.05 lb |
Compatible With
- Potter AVSM sync module
- Potter AVBB surface back box
- 24 VDC fire alarm / emergency notification NACs
