Potter CF-135-MP — THERMOFLEX MP Series heat detector, fixed temperature only, 135°F (57°C), with factory-sealed pigtail leads.

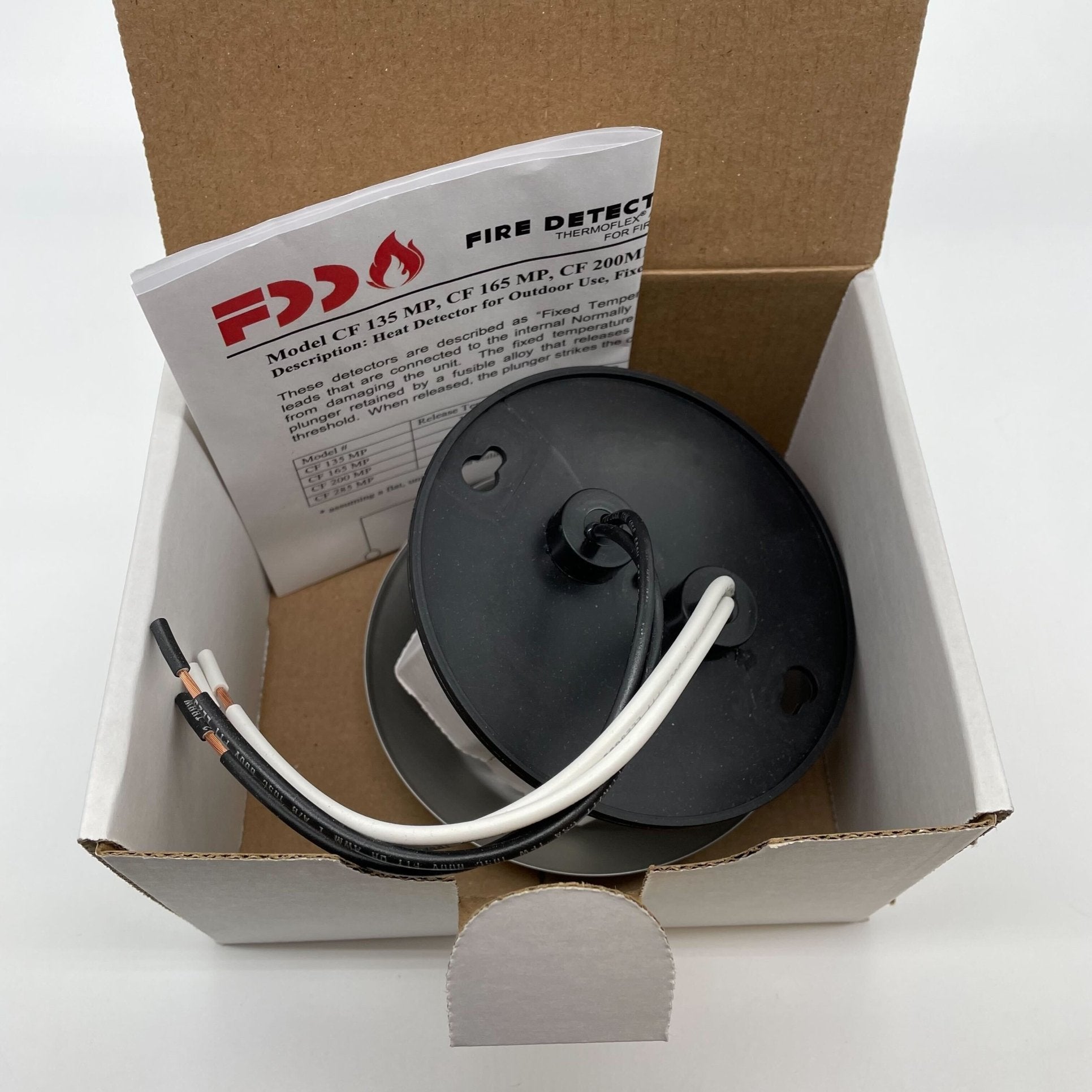

In Potter's THERMOFLEX line, CF means fixed temperature only while CR adds a rate-of-rise element, and the MP suffix swaps screw terminals for fly leads sealed through a corrosion-resistant plate. That seal plate is why it goes into parking garages, loading docks and wash-down areas, where condensation or corrosive air attacks ordinary terminal wiring.
- Potter stock number 1000136; non-restorable element
- Maximum installation ambient 82°F (28°C)
- Listed spacing 40 ft (12 m); 25 ft (7.5 m) with guards
- Normally open contacts latch closed on operation
- Contacts 3 A at 125 VAC, 1 A at 28 VDC, 0.3 A at 125 VDC
- 4.375" × 2.0"; 4" round weatherproof box
- UL 521 / ULC S531; CSFM 7270-1110:0100
Check the model table: CR-135MP is the dual-action version of the same body and is listed at 70 ft spacing, while CF-165MP, CF-200MP and CF-285MP are the higher-temperature entries.
