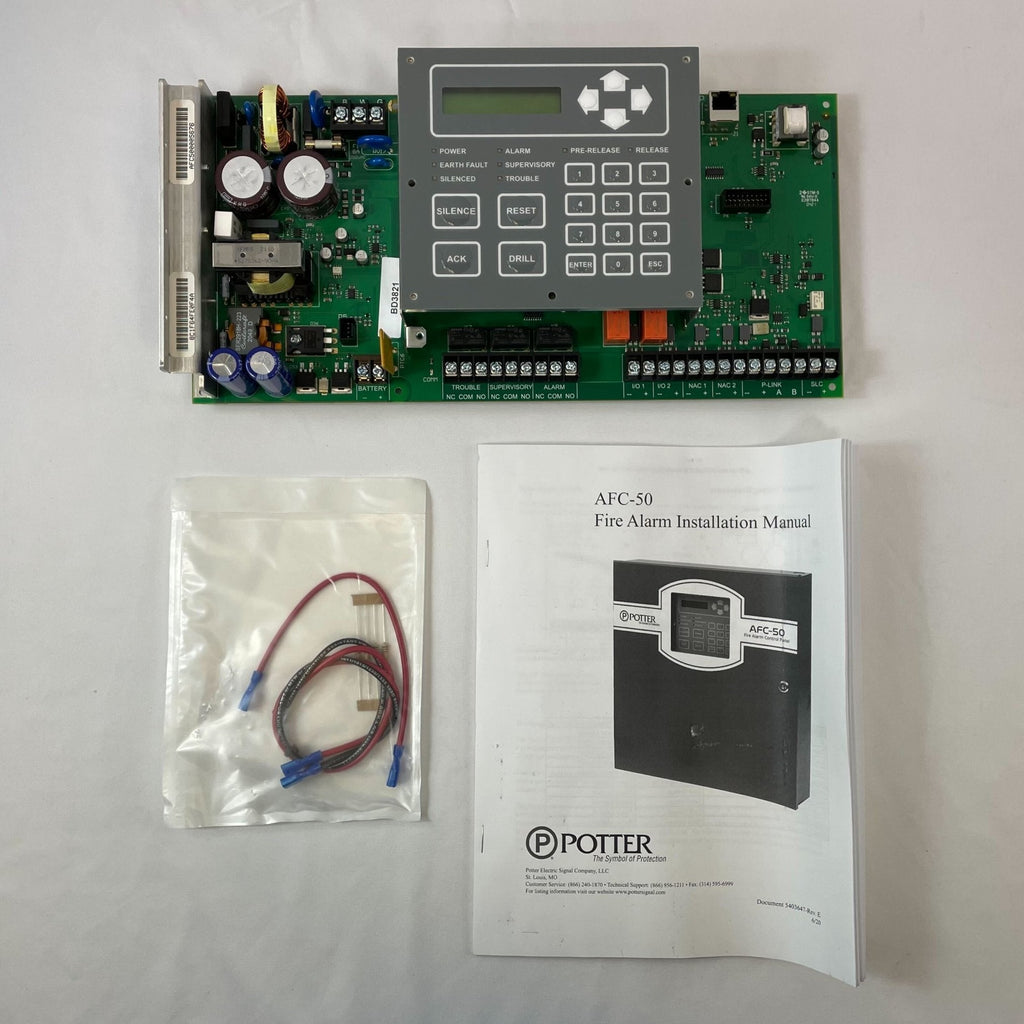

Potter AFC-50 RB — factory replacement main board for the AFC-50 addressable fire alarm control panel.
This is the board-level spare, intended for repairing an existing AFC-50 in place rather than replacing the cabinet, transformer and field wiring. It is the correct part when the panel electronics have failed but the enclosure and installation are sound.
The AFC-50 platform it serves:
- 50-address analog/addressable system, expandable with multi-point SLC modules
- Uses the Potter protocol, with its own line of compatible sensors, detectors and modules
- Each SLC accepts any mix of smoke sensors, heat detectors and modules, allows up to 50 ohms of loop impedance, and may use any wire compliant with the National Electrical Code
- Two notification appliance circuits rated 3 A each
- Two input/output circuits rated 1 A each
- 5 A power source
