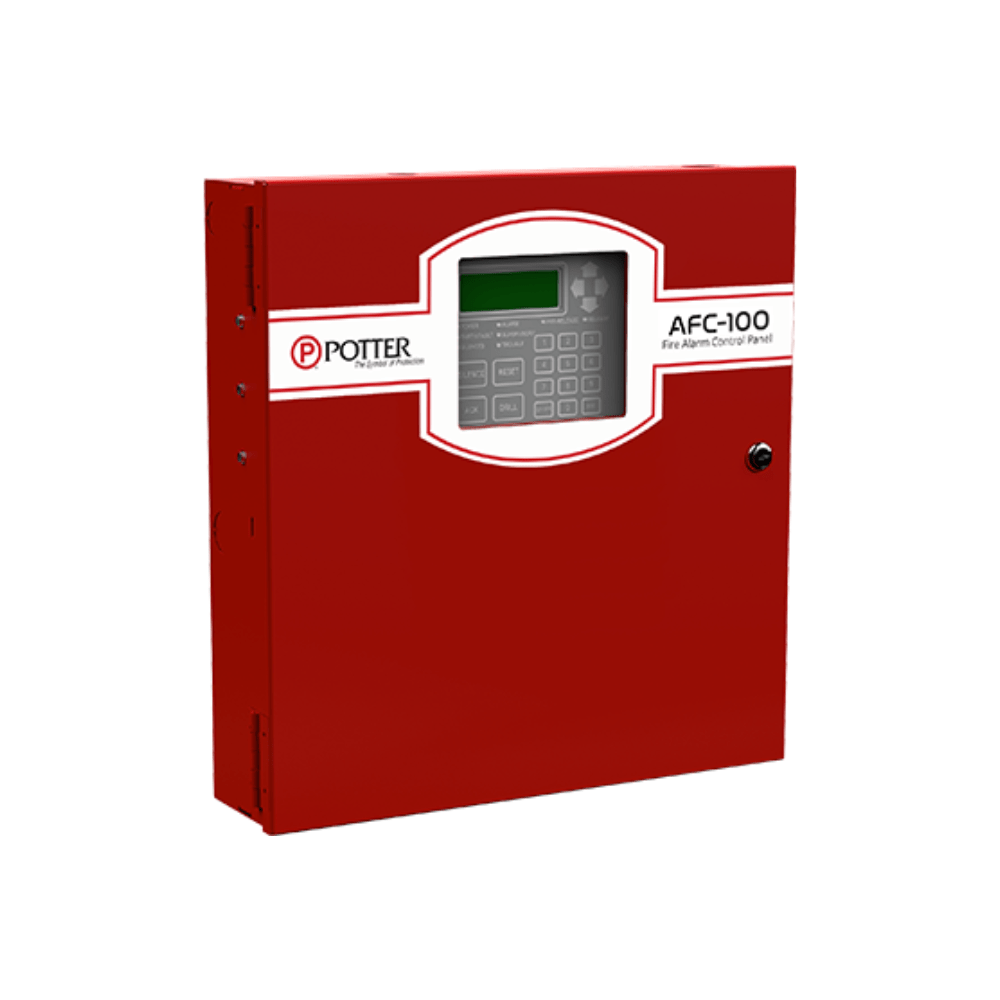

Potter AFC-100 Addressable 100 Point Fire Alarm Control Panel
The AFC-100 is an analog/addressable fire alarm system with a total system capacity of 100 addresses. Additional capacity on the system is achieved using multi-point SLC modules. The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
The AFC-100 has a 5 Amp power supply with two Notification Appliance Circuits (NACs) and two Input/Output (I/O) circuits. The NACs are rated at 3 Amps each and the I/Os are rated at 1 Amp each. Each output is regulated and power limited. In addition, each output is uniquely programmable and may be configured for steady signal, strobe synchronization, constant power, door holder power, or releasing. The strobe synchronization includes Gentex, AMSECO, System Sensor and Cooper/Wheelock and with the exclusive Quadrasync each output may have a unique brand and all strobes will flash together.
The NACs may be expanded using the PSN-1000 series intelligent power supplies. Each PSN-1000 adds another 10 Amps of power, 2 additional input circuits and the AFC-100 will support up to 31 power supplies. The system will synchronize the strobes system wide. In addition, the PSN-1000E has space to allow the installation of up to six loop expansion cards. The cards mount on a stacker bracket that allows access to all SLC circuit connections.
Documents
FAQ
How many devices does the AFC-100 support?
The panel has a total system capacity of 100 addresses. Multi-point SLC modules add capacity, and the SLC allows a total of 50 ohms of impedance.
What notification power is built in?
A 5 A power supply with two NACs rated 3 A each and two I/O circuits rated 1 A each, all regulated and power limited.
Which strobes can it synchronize?
Gentex, AMSECO, System Sensor and Cooper/Wheelock. With Quadrasync, each output can use a different brand and all strobes still flash together.
How can notification power be expanded?
With PSN-1000 series intelligent power supplies, each adding 10 A and two input circuits. The AFC-100 supports up to 31 of them.
