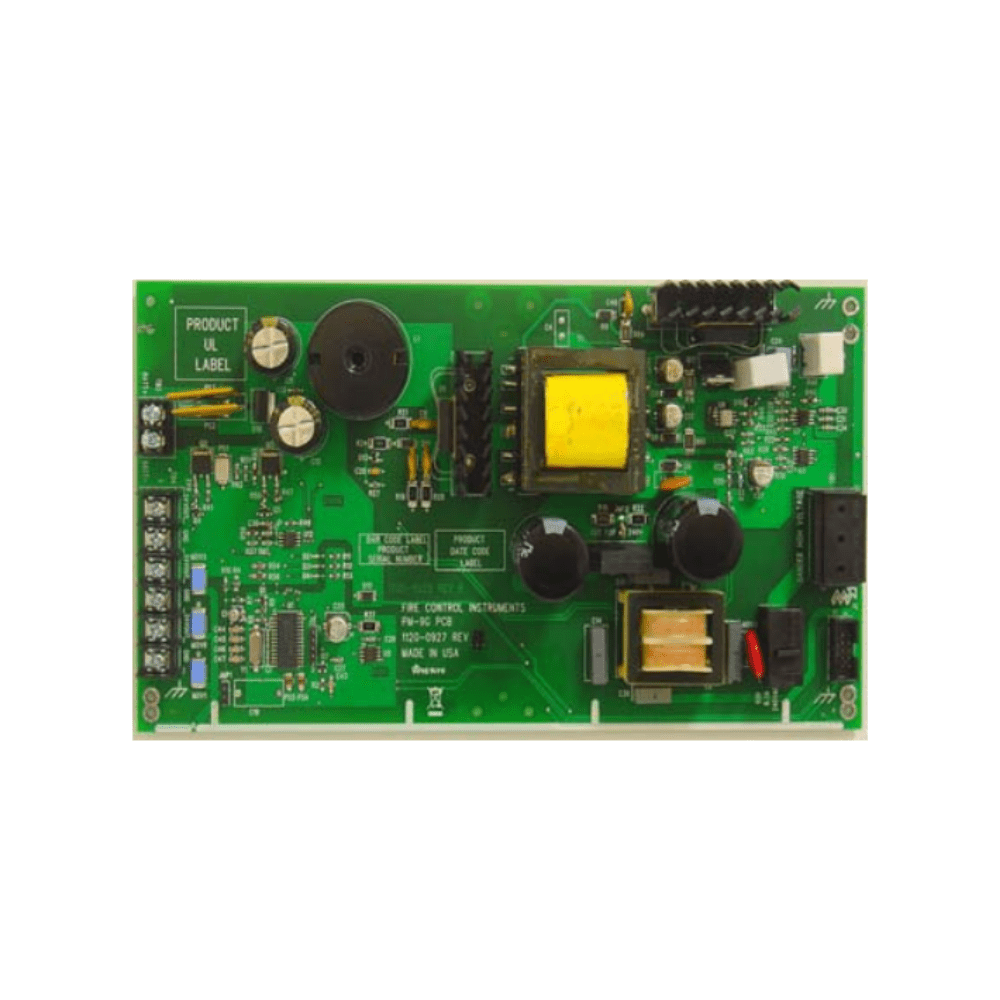

The Gamewell-FCI, PM-9G Power Supply is a 220/240 VAC, 50/60 Hz switching power supply
It provides power to the Fire Alarm Control Panel, INCC Command Center, INX Transponder sub-assemblies, and all the E3 Series® components.
The PM-9G is a component of the following systems.
• E3 Series Expandable Emergency Evacuation System
• E3 Series Combined Fire Alarm and Mass Notification Systems
• E3 Series Broadband Voice Evacuation System
It includes 9 amperes of filtered and regulated 24 VDC FWR. In addition, it has an internal battery charging circuit that is capable of maintaining up to 55 A/H batteries.
Installation
Typically, the PM-9G Module can be mounted in the following E3 Series cabinets:
• Cabinet B, Fire Alarm Control Panel
• Cabinet C, INCC Command Center
• Cabinet C, INX Audio Transponder
• Cabinet D, INCC Command Center
• Cabinet D, INX Audio Transponder
For information on the PM-9G installation, refer to the following documents:
• E3 Series Manual, P/N: LS10080-051GF-E
• PM-9G Installation Instructions, P/N: 9001-0055
• Mass Notification System Installation/Operation Manual, P/N: LS10013-000GF-E.
FEATURES & BENEFITS
• Listed under UL® Standard 864, 9th Edition
• Listed under UL Standard UL2572 for Mass Notification
• Includes 9 ampere, filtered, regulated power supply
• Provides 1 ampere battery charging current.
• Offers energy and space-saving switching technology
• Contains an integral battery charger capable of recharging up to 55 A/H batteries
(Batteries not furnished).
