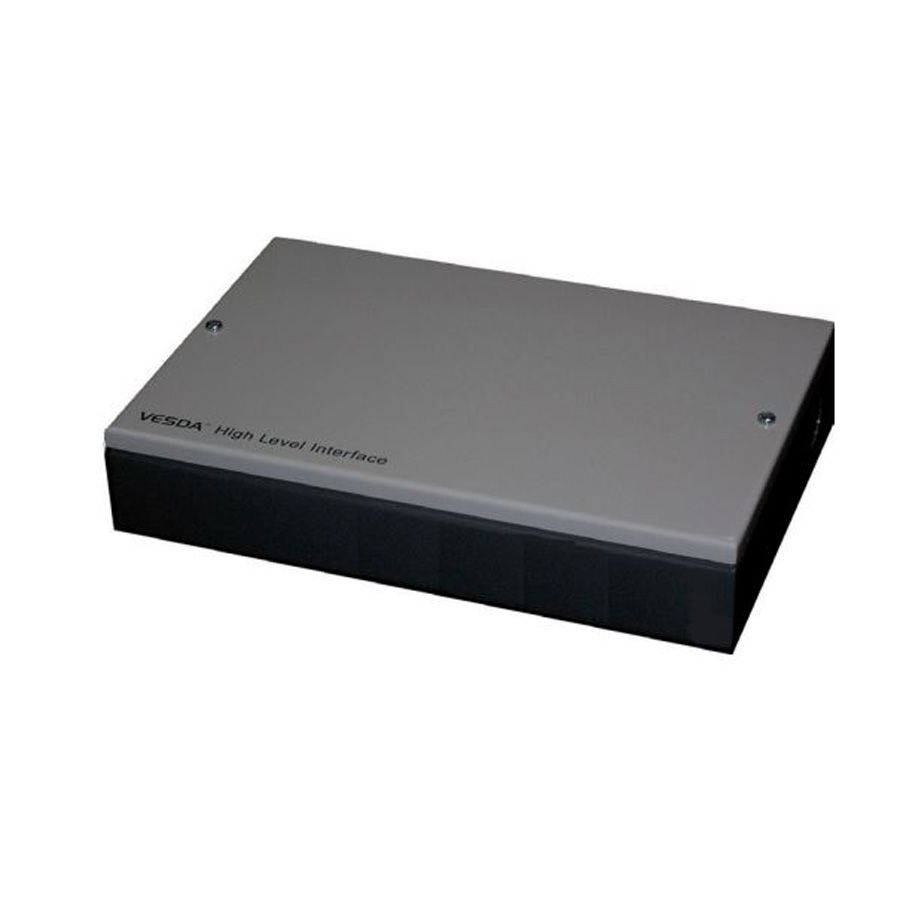

Notifier VHX-1420-HFS is the wall-mounted VESDA Modbus Type 3 High Level Interface (HLI) in a metal box. The HLI connects a VESDAnet network to host platforms such as building management systems and fire alarm control panels, acting as a proxy for all VESDA devices on the network.
The wall-mounted version has a built-in VESDAnet interface, so no remote VESDAnet socket module is needed. The host monitors and controls VESDA devices by reading and writing registers in the Modbus map, and alarms are reported within a few seconds of a detector reaching alarm.
Specifications
| Detectors supported |
Up to 100 on a single VESDAnet network |
| Supported detectors |
VESDA VLP, VLS, VLC, VLF, VLI, VFT-15; VESDA-E VEU, VEP, VES, VEA |
| Supply voltage |
24 VDC |
| Current |
70 mA quiescent (1.68 W) |
| Dimensions |
Approx. 11 x 7.3 x 2.2 in. (280 x 185 x 55 mm) |
| Weight |
4.4 lb (2 kg) |
| Supplied with |
VESDAlink RS-232 9-way serial cable (male-female) |
Features
- Reports alarm status, fault status, smoke level, detailed faults and alarm thresholds
- Detector control: reset, disable, silence, alarm test and normalize
- Operational status for normalization and AutoLearn
Related models
- VHX-1420: Xtralis wall-mounted Modbus Type 3 HLI
- VHX-0420: standard Modbus Type 3 HLI, needs a VESDAnet socket
Documents
FAQ
How many VESDA detectors can it monitor?
Up to 100 VESDA detectors on a single VESDAnet network.
Is a VESDAnet socket module needed?
No. The wall-mounted version has a built-in VESDAnet interface.
What power does it need?
24 VDC, with 70 mA quiescent current consumption.
Which detectors does it support?
VESDA VLP, VLS, VLC, VLF, VLI and VFT-15, plus VESDA-E VEU, VEP, VES and VEA detectors.
