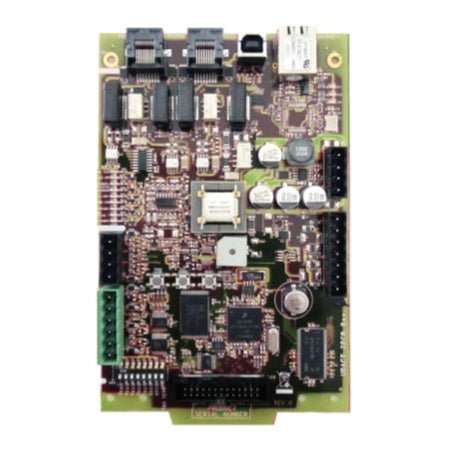

NOTIFIER UDACT-2 — Universal Digital Alarm Communicator Transmitter, supplied with operating and programming instructions and mounting hardware.
The UDACT-2 is designed for use on NOTIFIER fire alarm control panels and on the NCA-2 Network Control Annunciator, and transmits system status to UL certified Central Station receivers over the public switched telephone network. Used with an NCA-2, it can report the status of all control panels on NOTI•FIRE•NET. It transmits the status of software zones (alarm and trouble), System Trouble, Panel Off-Normal, Supervisory, Bell Trouble, Low Battery and AC Fail, and can transmit all of the zone and point status associated with each panel — up to 2,040 points when used with the NFS-3030, NFS2-3030 and NCA-2, for receivers taking Ademco Contact ID format. The unit can be installed in the panel cabinet or remotely in a separate enclosure, and connects to the host panel over EIA-485. Programming is created and downloaded with VeriFire Tools, so the unit can be configured before installation, modified easily and saved online or offline; VeriFire Tools also upgrades the UDACT-2 operating firmware and prints point or zone reports that can be sent to the central station for their records.
Specifications
| Voltage |
Regulated 24 volts; range 21.2 to 28.2 volts |
| Standby current |
40 mA |
| Current while communicating |
75 mA |
| Maximum current |
100 mA while communicating with the open collector output activated |
| Dimensions |
6.75 in. x 4.25 in. (17.145 x 10.795 cm) |
| Telephone lines |
Dual phone lines with line voltage detect |
| Communication formats |
Ademco Contact ID; 4+2 Standard; SIA |
| Point capacity |
Up to 2,040 points with NFS-3030, NFS2-3030 and NCA-2 (Ademco Contact ID receivers) |
| Trouble message rate |
Maximum of 14 point trouble messages transmitted per hour |
| Host interface |
EIA-485 interface to host panel |
| Programming |
VeriFire Tools version 6.60 or higher; USB port for upload/download |
| Indicators |
Individual LEDs for Power, EIA-485 Loss, Manual Test, Kissoff, Comm Fail, Primary Line Seize, Secondary Line Seize and Modem Communications |
| Output |
Open collector relay driver for Total Communications Failure or UDACT-2 trouble |
| Other |
Real-time clock; extensive transient protection; Manual Test Report and Manual Transmission Clear functions |
| Agency certifications |
UL/ULC certified S635; FM Approved; CSFM 7165-0028:0243 (NFS2-640/320) and 7165-0028:0224 (NFS2-3030); FDNY COA #6085, COA #6098 |
| Country of origin |
Made in the U.S.A. |
Installation notes
-
Enclosure is not included: the UDACT-2 mounts in the panel cabinet or in a separate enclosure — ABS-8RB, UBS-1B or UBS-1BR. The ABS-8RB allows the unit to be mounted up to 6,000 ft. (1828.8 m) from the host FACP.
-
Two phone cords required: the MCBL-7 DACT phone cord is 7 ft. (2.13 m) long and two are required for the dual line configuration.
-
Contact ID for point reporting: Ademco Contact ID must be used for independent zone reporting. The 4+2 Standard and SIA formats do not carry that level of detail, so confirm the receiver’s format before committing to a point-level reporting scheme.
-
Receiver compatibility: the data sheet lists UL certified compatible receivers — Ademco 685 and MX8000, Silent Knight 9500 and 9800, FBI CP220FB, Osborne Hoffman 2000E, Radionics 6600, SurGard MLR2, System III and MLR-2000 — several with specific line card and software revision requirements. Verify the exact revision against the data sheet chart.
-
Remote mounting: the FBD-1 ferrite bead kit is for remote mounting only.
-
Relay output: the open collector driver takes the R-10E (SPDT Form-C) or R-20E (DPDT, two Form-C) relays, contacts rated 10 A @ 115 VAC.
-
Legacy panels: the UDACT-2 can also be used with legacy panels — refer to the UDACT-2 manual for details.
Related models
-
ABS-8RB — metal enclosure for externally mounting the UDACT-2 up to 6,000 ft. from the host FACP; 9.94 in. H x 4.63 in. W x 2.50 in. D (25.248 x 11.760 x 6.350 cm).
-
UBS-1B / UBS-1BR — metal enclosure with solid door, black and red respectively.
-
MCBL-7 — DACT phone cord, 7 ft. (2.13 m); two required.
-
R-10E / R-20E — SPDT and DPDT Form-C relays for the open collector relay driver, contacts rated 10 A @ 115 VAC.
-
FBD-1 — ferrite bead kit for remote mounting.
Specifications taken from the NOTIFIER data sheet “UDACT-2 Universal Digital Alarm Communicator Transmitter,” document DN-60686:A1 (4/2/12). Manufacturer specifications are subject to change without notice.
