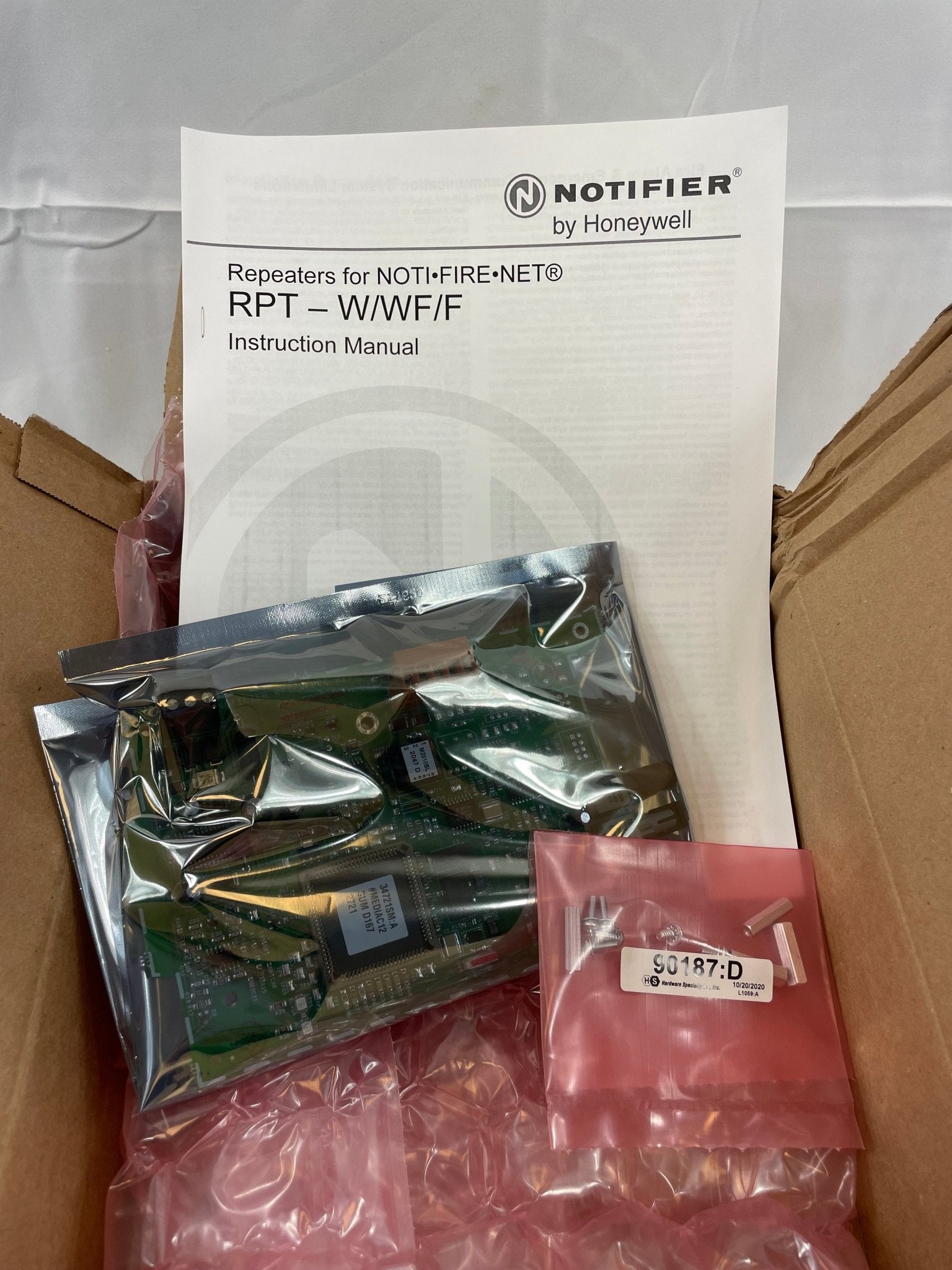

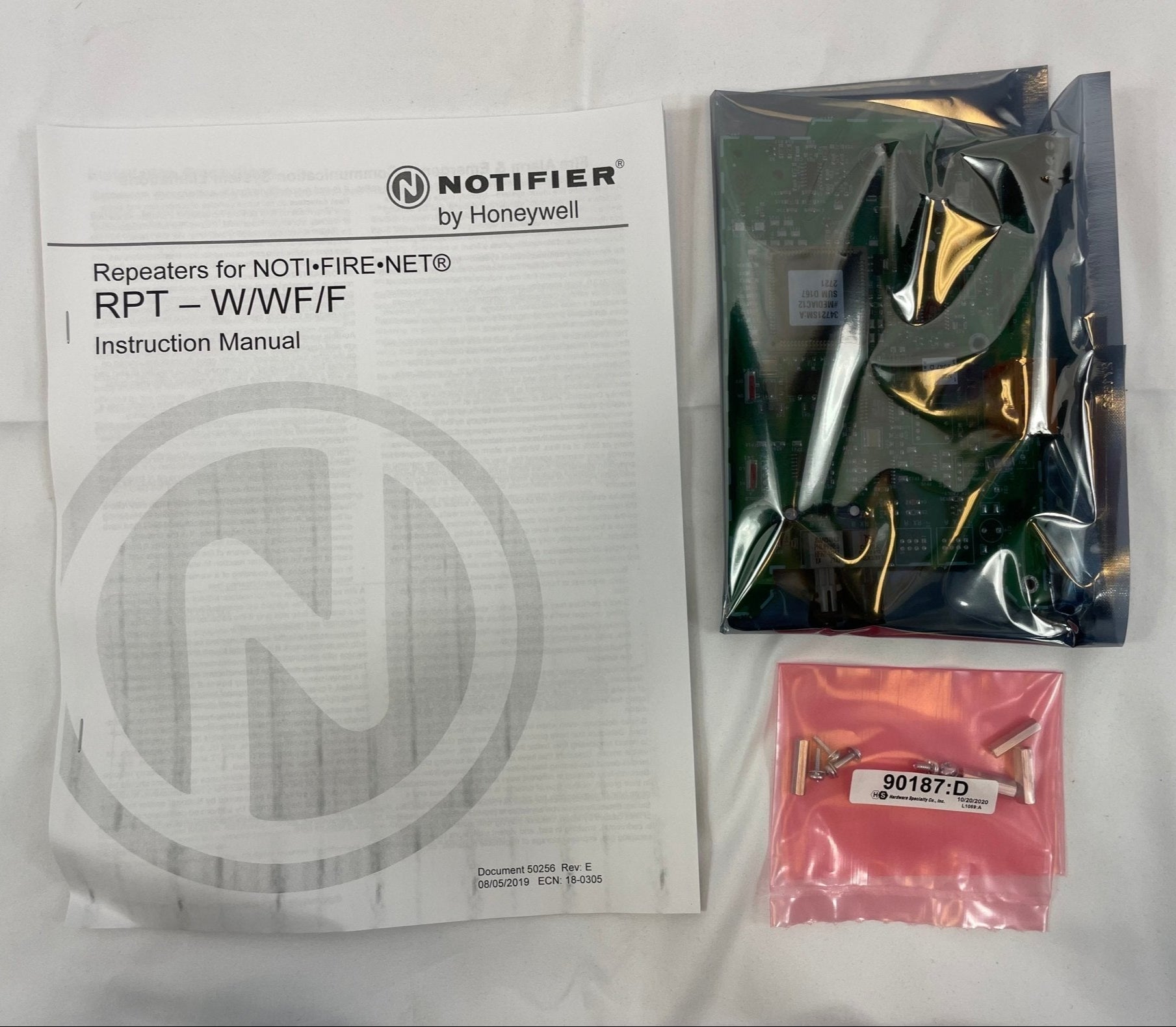

Notifier RPT-WF is the wire/fiber converter version of the NOTI•FIRE•NET RPT Series repeater. An RPT repeater is a single PC board used to extend the transmission distance of a NOTI•FIRE•NET network, or to change the network media type between wire and fiber. The RPT-WF takes a wire channel in and sends it out on fiber, or the reverse.
The repeater requires 24 VDC. It mounts in the ABS-8R surface box, or in a CAB-3 or CAB-4 Series cabinet using one slot of a CHS-4 or CHS-4L chassis. NOTI•FIRE•NET supports NFPA Style 4 or Style 7 network operation, and every node reshapes and regenerates the data signal, so the failure of one node does not stop communication among the others.
Specifications
| Model |
RPT-WF wire/fiber repeater |
| Network |
NOTI•FIRE•NET, 312,500 bits per second |
| Power |
24 VDC |
| Wire channel |
Twisted pair, 14 to 18 AWG, up to 3,000 ft (914.4 m) |
| Fiber channel |
Multi-mode 62.5/125 µm, 850 nm, ST connectors, 10 dB loss budget |
| Board size |
4.4 x 6.5 in. (111.76 x 165.1 mm) |
| Mounting |
ABS-8R, or one CHS-4 / CHS-4L slot in a CAB-3 or CAB-4 Series cabinet |
Installation notes
- Provide 24 VDC to the board
- Fiber must be dual and plenum grade
- Wire and fiber specifications match the MIB-W and MIB-F media interface boards
- Network wiring can be Style 4 or Style 7
Related models
- RPT-W: wire repeater
- RPT-F: fiber repeater
- NCM-W and NCM-F: network communications modules for ONYX panels
Documents
FAQ
What is the difference between the RPT-W, RPT-F and RPT-WF?
The RPT-W repeats a wire network, the RPT-F repeats a fiber network, and the RPT-WF converts between wire and fiber.
What power does it need?
The RPT repeater requires 24 VDC.
Where does it mount?
In the ABS-8R surface box, or in a CAB-3 or CAB-4 Series cabinet using one slot of a CHS-4 or CHS-4L chassis.
What fiber does it use?
Multi-mode fiber, 62.5/125 µm, at 850 nm with ST connectors. The fiber must be dual and plenum grade, with a 10 dB loss budget.
