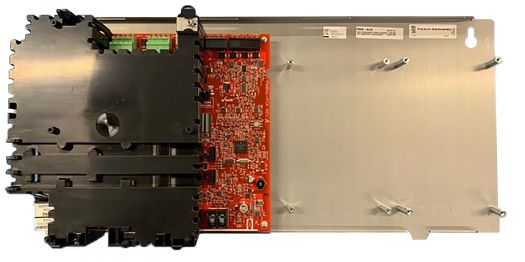

Notifier PMB-AUX is the addressable power supply and battery charger for the NOTIFIER INSPIRE N16 Series fire alarm control panel, chassis-mounted for a CAB-5 Series cabinet. It provides four power-limited NAC outputs, configurable for Class A or Class B wiring, two 24 VDC auxiliary outputs and a remote sync input.
Specifications
| AC power |
2 A at 120 VAC or 1 A at 240 VAC, 50/60 Hz |
| Auxiliary outputs |
Two, power-limited (Class 2), 24 V at 1.5 A each; Aux 1 Class A/B, Aux 2 Class B |
| NAC outputs |
Four power-limited: Class A/B NAC power, Class D door holder power, Class A/B aux power, UZC |
| Battery charger |
Sealed lead-acid, 7 to 100 AH; 1 A, 2 A or 4.25 A; 27.6 VDC nominal |
| Bus |
Addressable on the CLP bus |
| Programming |
USB Type B connector |
| Mounting |
Chassis for CAB-5 Series cabinet |
| Certifications |
UL S635; FM; CSFM 7165-0028:0516; FDNY COA 001761; UL 864 10th edition |
Installation notes
- A maximum of two PMB-AUX(-RTO) power supplies can be installed in an N16x panel or compatible enclosure.
- The PMB power supply supports a maximum of five loop cards.
- One or two supplies are added depending on the number of loop cards, battery charging and alarm load.
Related models
- PMB-AUX-RTO: same supply chassis-mounted for CAB-4 Series cabinets
Documents
FAQ
Which panels use the PMB-AUX?
The NOTIFIER INSPIRE N16 Series fire alarm control panels.
What is the difference between PMB-AUX and PMB-AUX-RTO?
The PMB-AUX is chassis-mounted for CAB-5 Series cabinets; the PMB-AUX-RTO is for CAB-4 Series cabinets.
How many can be installed in one panel?
A maximum of two PMB-AUX(-RTO) supplies in an N16x panel or compatible enclosure.
What batteries can it charge?
Sealed lead-acid batteries from 7 to 100 AH, at a selectable 1 A, 2 A or 4.25 A charging current.
