Notifier NH-200-IV is an ivory, low-profile intelligent addressable thermal detector with a fixed-temperature set point of 135°F (57°C). The IV suffix means it works with both FlashScan and CLIP devices. It is the standard-temperature model of the NH-200 Series; the NH-200H-IV is the 190°F version for hotter areas. It is compatible with FireWarden series control panels.
Specifications
| Model |
NH-200-IV |
| Color |
Ivory |
| Fixed-temperature set point |
135°F (57°C), factory preset |
| Operating temperature |
-4°F to 100°F (-20°C to 38°C) |
| Series |
NH-200 Series intelligent thermal detector |
| Protocol |
FlashScan and CLIP (IV suffix) |
| Addressing |
Rotary decimal switches |
| Voltage range |
15 - 32 VDC peak |
| Humidity |
10% to 93% non-condensing |
| Spacing |
UL approved for 50 ft center-to-center; FM approved for 25 x 25 ft |
| Height |
2.0 in (base determines diameter) |
Features
- Thermistor technology for fast response
- Built-in tamper resistant feature and magnet-activated functional test switch
- Two LEDs with 360 degree viewing: blink red in normal condition, steady red in alarm

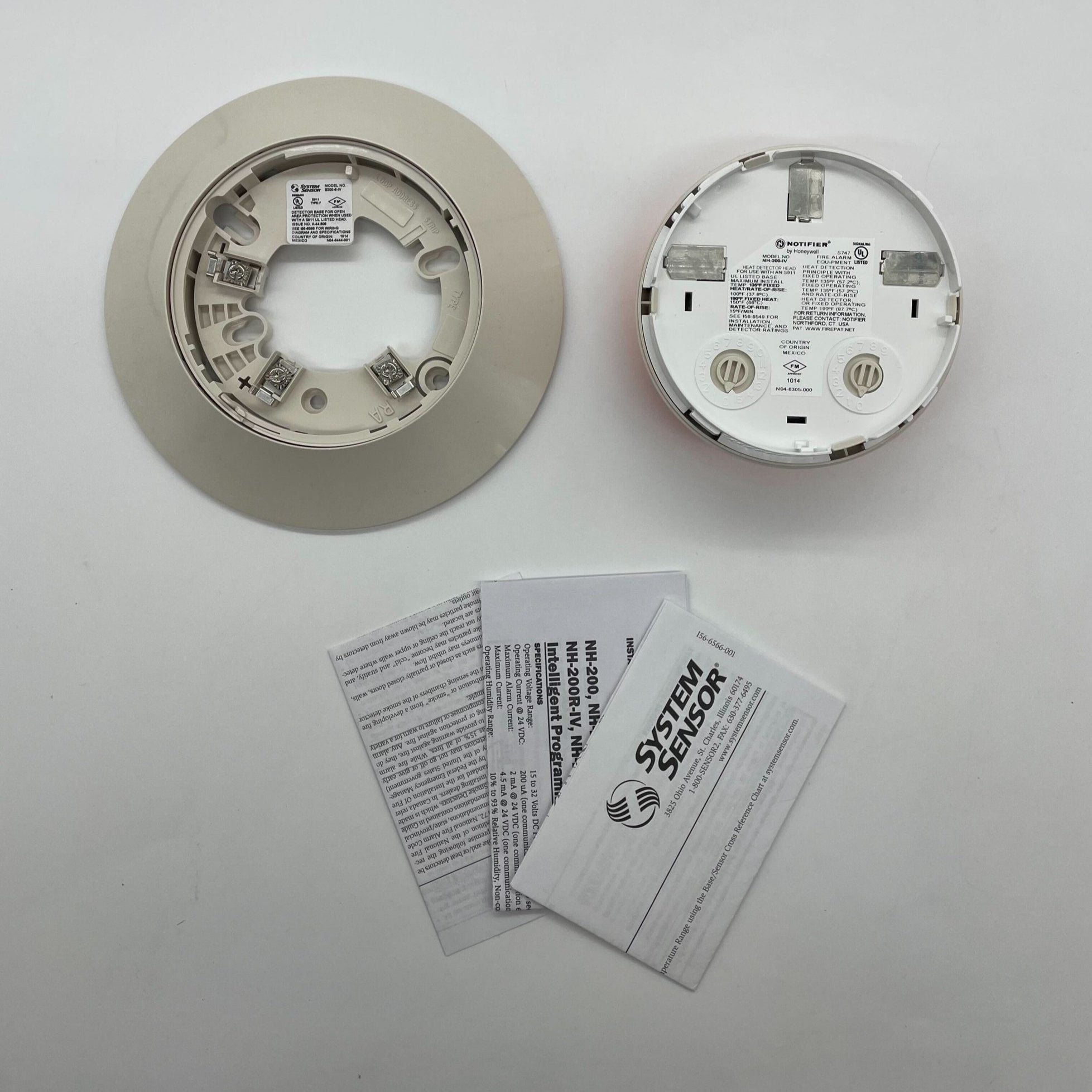

- Plugs into a separate base, so photoelectric, ionization and thermal sensors can be interchanged
- Remote test from the panel and walk test with address display
- Designed to meet UL 268 7th Edition
