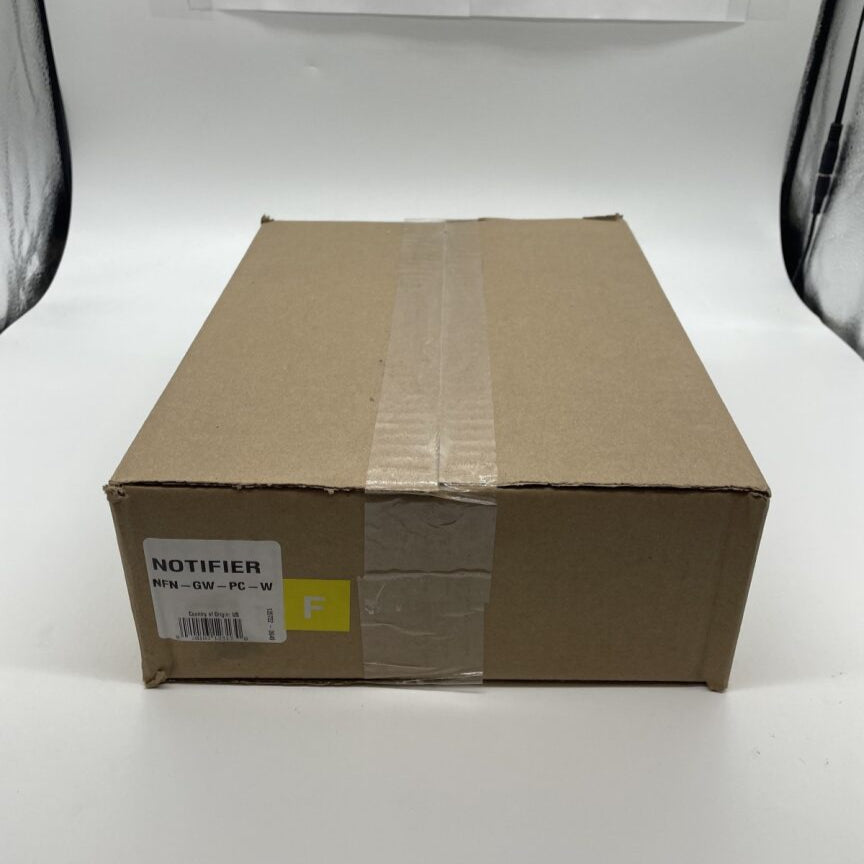

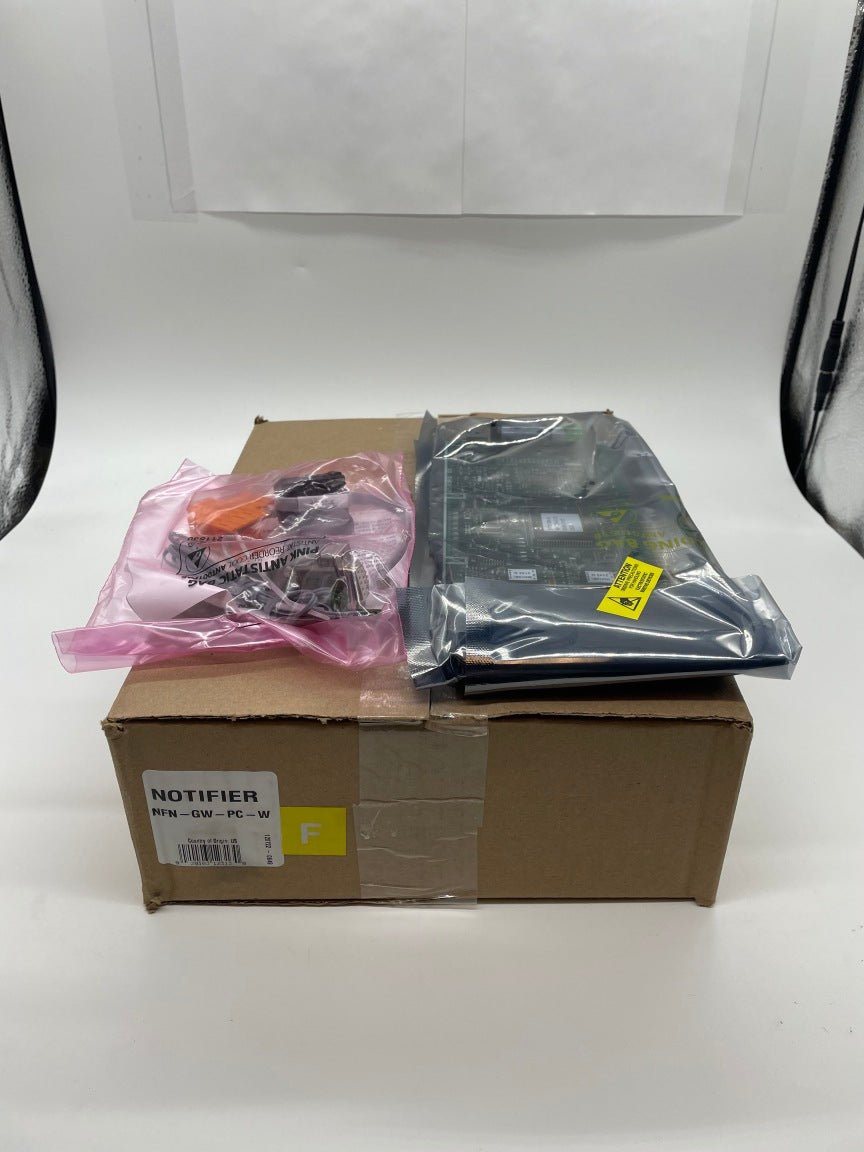

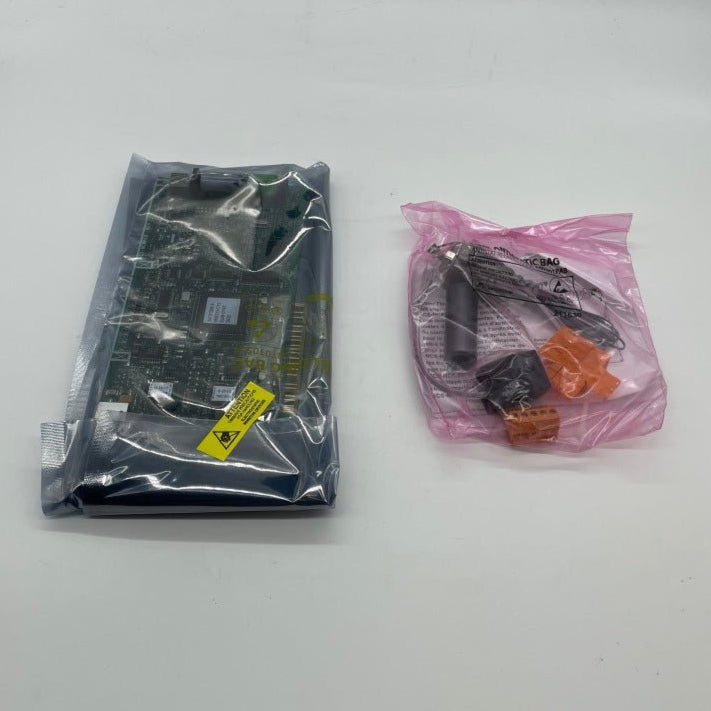

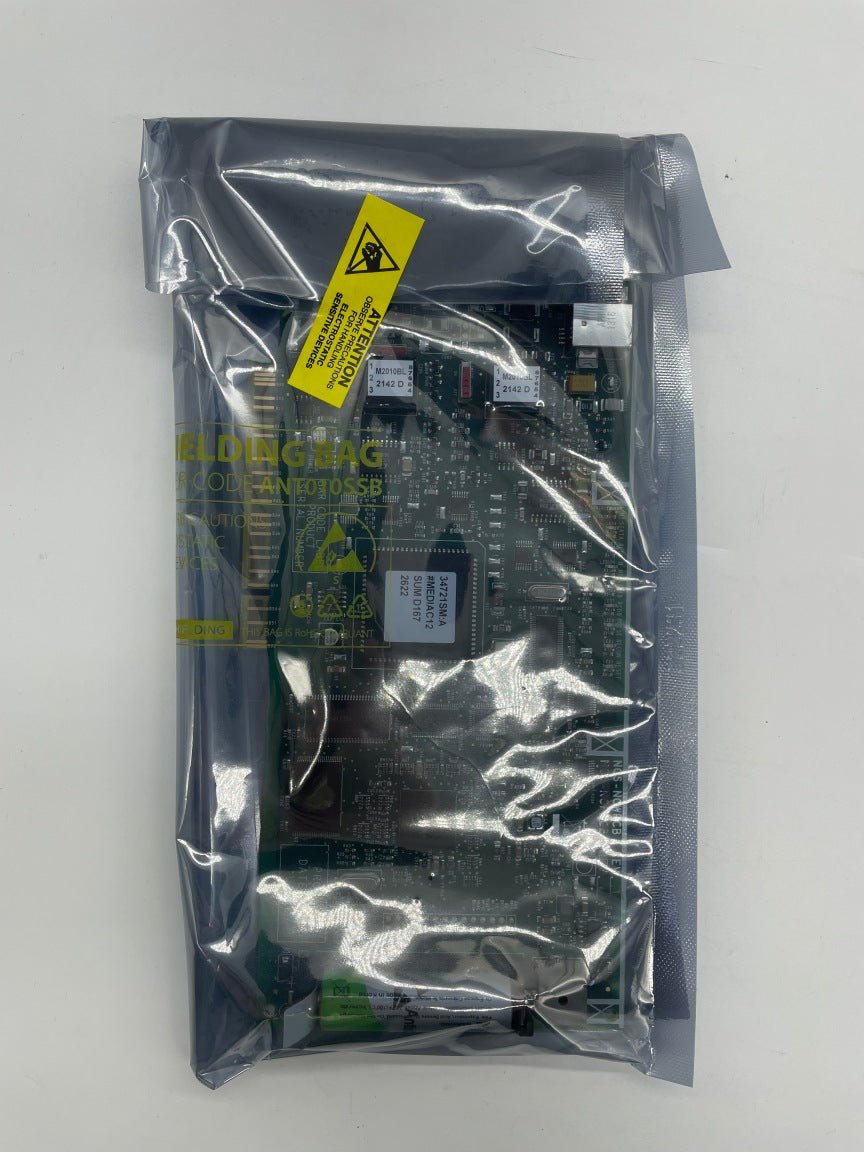

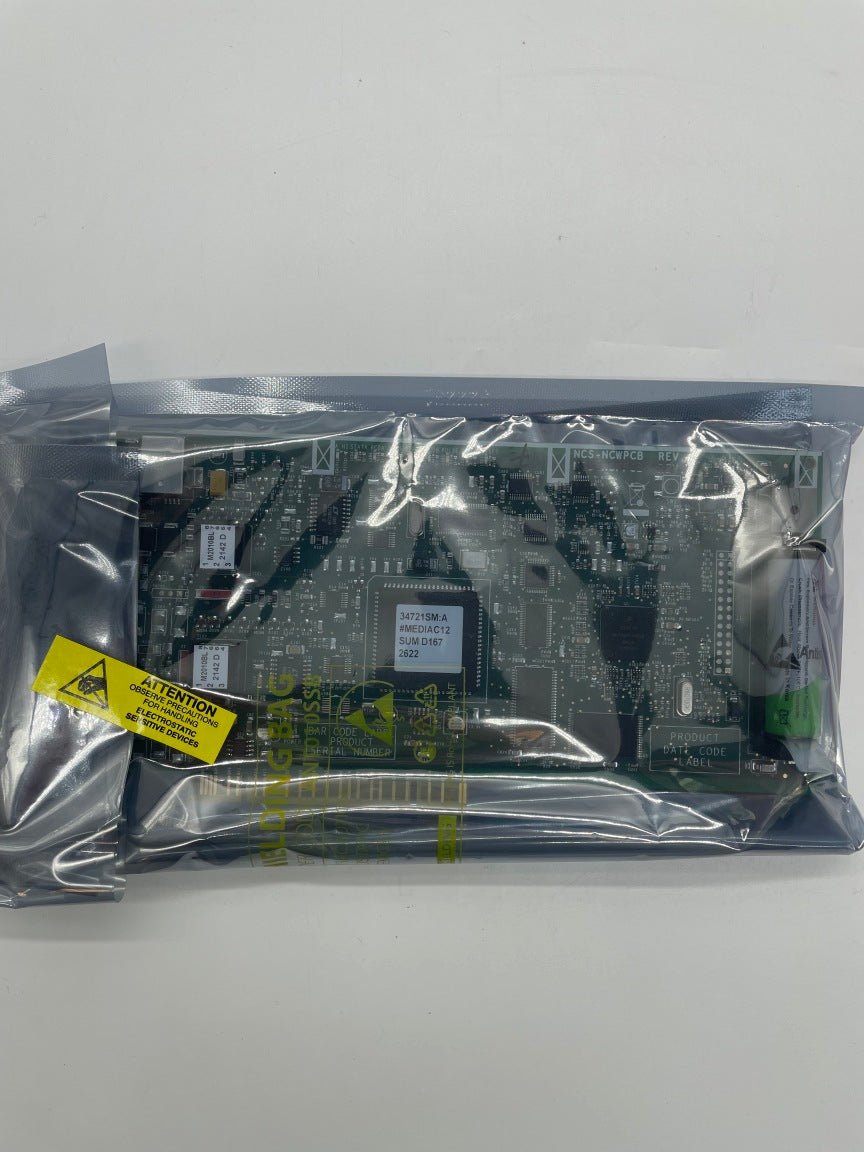

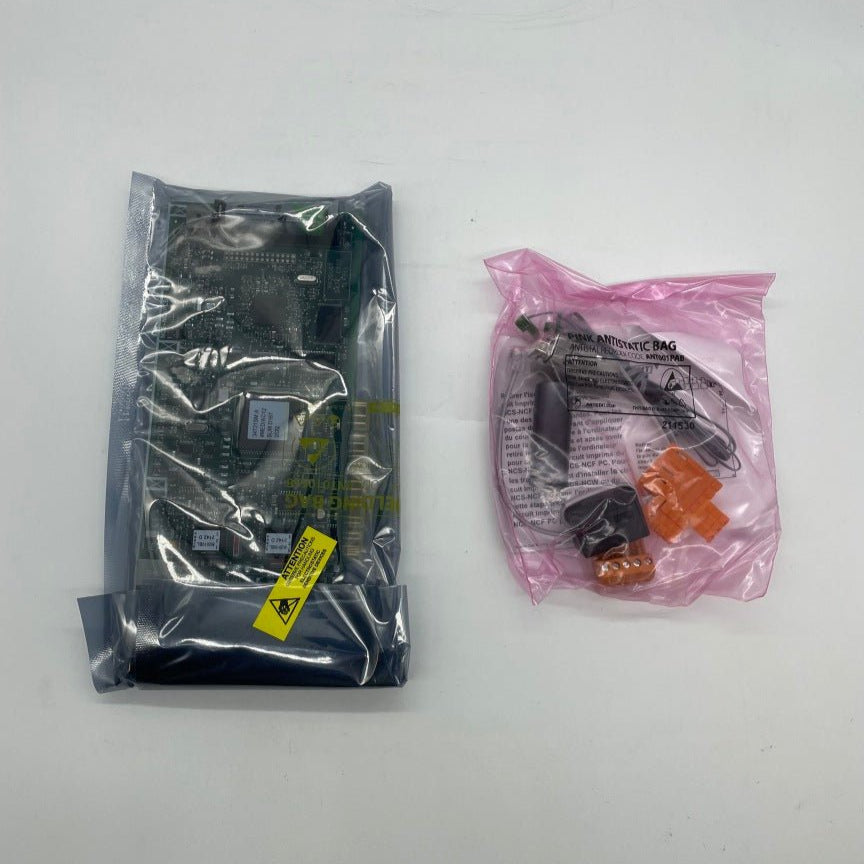

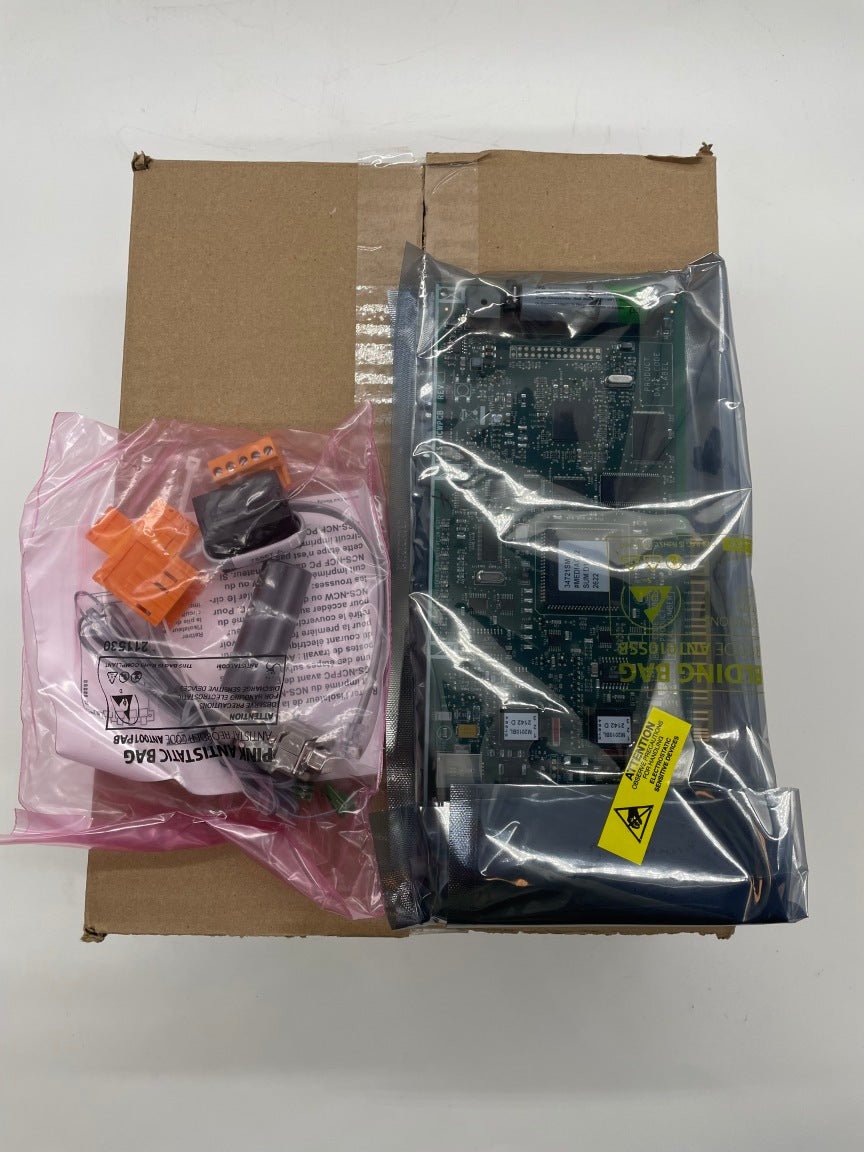

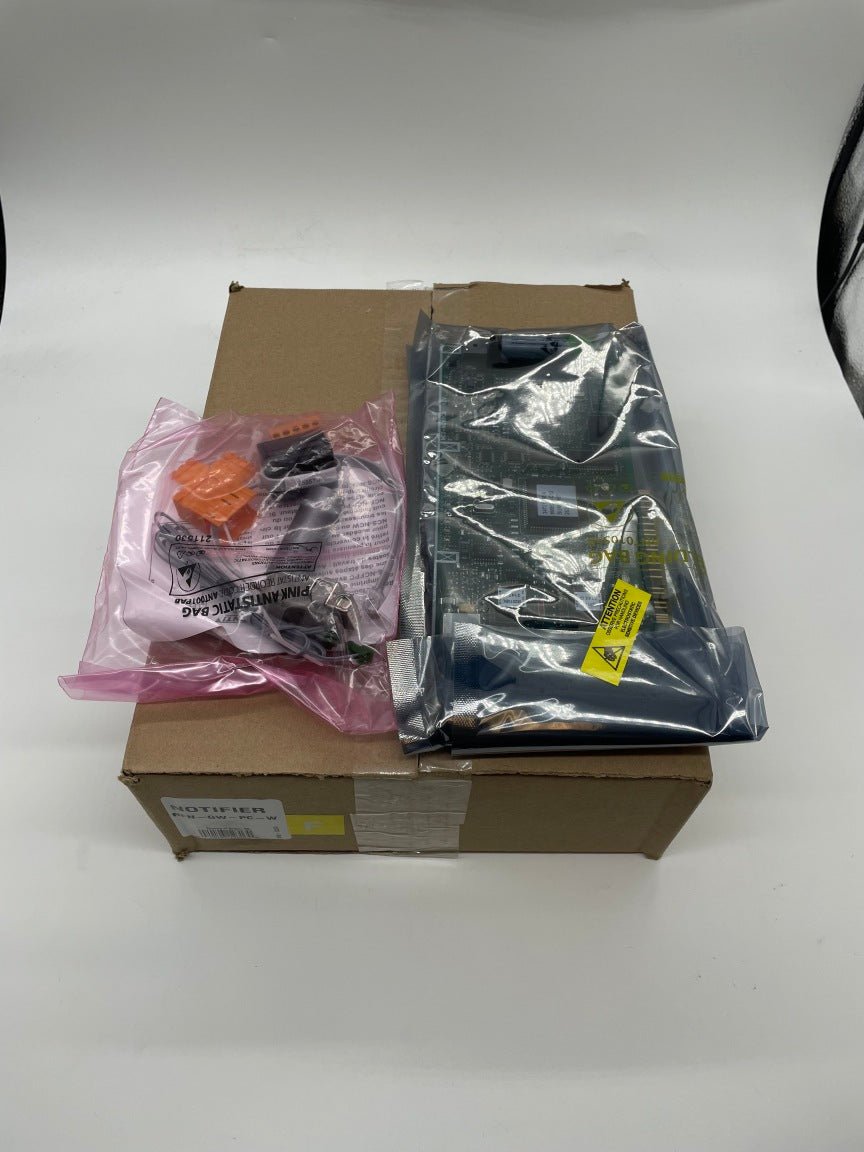

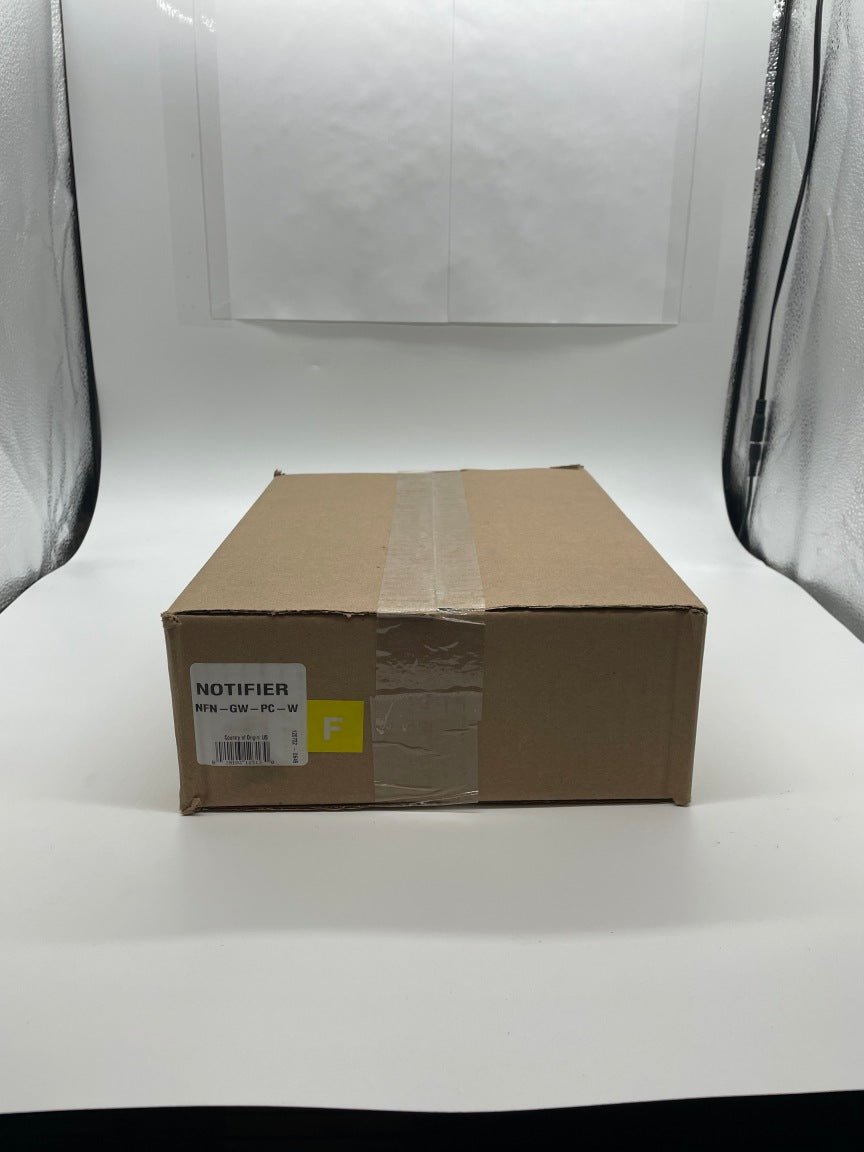

Notifier NFN-GW-PC-W — NOTI-FIRE-NET (NFN) gateway PC card (PCI) for wire network media, installed in an ONYXWorks fire monitoring workstation.
The PC version of the NFN gateway is the network interface for a true peer-to-peer network and resides in the ONYXWorks workstation. It lets the workstation monitor alarm, pre-alarm, trouble and disabled events for Notifier panels on the NFN network, adds acknowledge, silence, reset, enable/disable and activate/deactivate control, and supports panel programming upload, download and changes, plus network diagnostics.
Specifications
| Model |
NFN-GW-PC-W |
| Type |
NFN gateway PC card (PCI) |
| Network media |
Wire, standard NFN |
| Host |
ONYXWorks workstation (see DN-7048) |
| Compatibility |
NFN version 5.0 and higher: ONYX Series, N16 INSPIRE Series, BACnet Gateway, NCA-2/NCA, NCD |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
Installation notes
- Requires an ONYXWorks workstation
- Also compatible with ONYX FirstVision
- Multiple workstations can access a gateway at the same time, and gateways can be made redundant for network survivability
Related models
- NFN-GW-PC-F: same PC card for multimode fiber
- NFN-GW-PC-HNW-2 and NFN-GW-PC-HNMF: high-speed NFN versions
- NFN-GW-EM-3: embedded standalone gateway with IP capability
Documents
FAQ
What does the NFN-GW-PC-W connect?
It connects an ONYXWorks workstation to a standard NOTI-FIRE-NET network over wire media, so the workstation can monitor and control the networked panels.
Is it for high-speed NFN?
No. The NFN-GW-PC-W is for standard NFN with wire media. High-speed NFN uses the NFN-GW-PC-HNW-2 (wire) or HNMF/HNSF (fiber) cards.
Which panels can it monitor?
ONYX Series panels, N16 INSPIRE Series, the BACnet Gateway, NCA-2/NCA and NCD on NFN version 5.0 and higher.
Can panels be programmed through it?
Yes. It supports fire alarm control panel programming upload, download and modification.
