Notifier NBG-12LRA is a non-coded, dual-action agent release station for NOTIFIER fire alarm control panels with releasing capabilities and RP Series releasing systems. It suits areas such as clean rooms and computer rooms where a chemical agent is used to extinguish a fire.

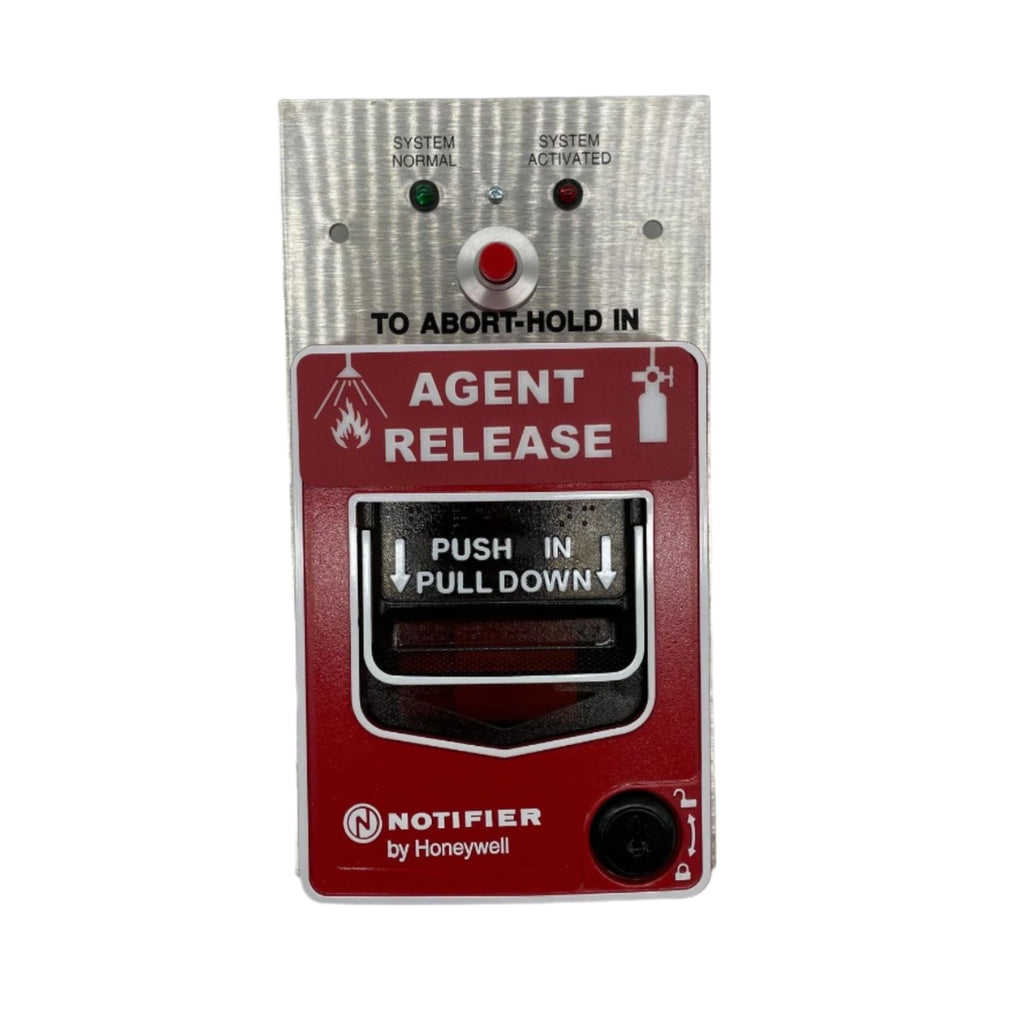

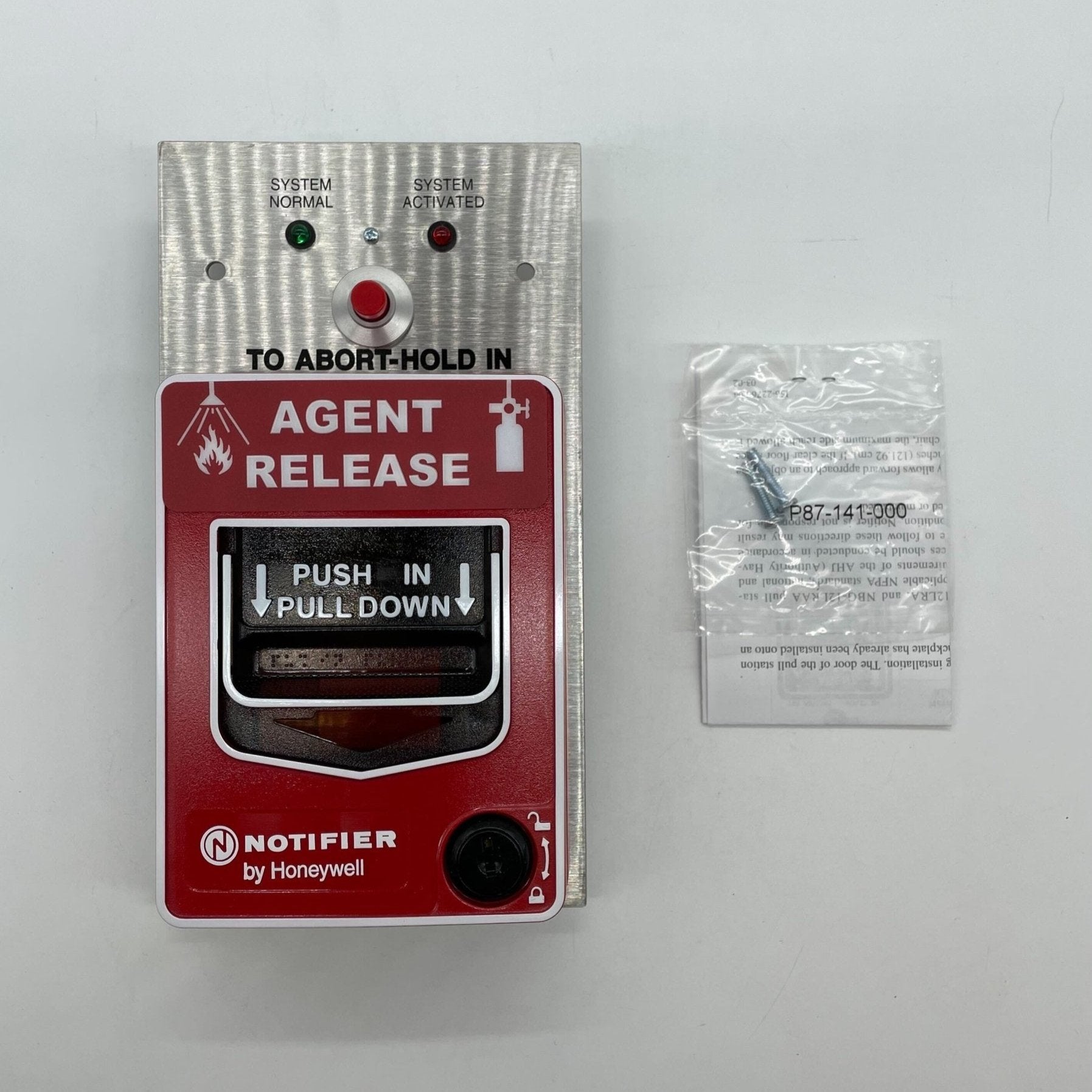

Along with the dual-action manual release, the NBG-12LRA includes an abort switch, a power-on (System Normal) LED and a released (System Activated) LED. To release, the user pushes in and pulls down the handle; the word ACTIVATED appears and stays until the station is reset with the key. The station meets the ADAAG controls guidelines and the ADA 5 lb maximum pull force, with operating instructions and Braille molded into the handle.
Specifications
| Model |
NBG-12LRA agent release station |
| Operation |
Non-coded, dual action, key-lock reset |
| Includes |
Abort switch, Normal LED, Release LED |
| Contact |
SPST N/O, gold plated, 0.25 A at 30 VAC or VDC |
| Material |
Durable polycarbonate |
| Mounting |
Surface mounted to an SBA-10 backbox |
| Certifications |
UL/ULC S692; MEA 67-20-E; FM approved; CSFM 7150-0028:0199 |
Installation notes
- The NBG-12LRA must be surface mounted to an SBA-10 metal backbox (4.5 x 8.188 x 1.375 in.)

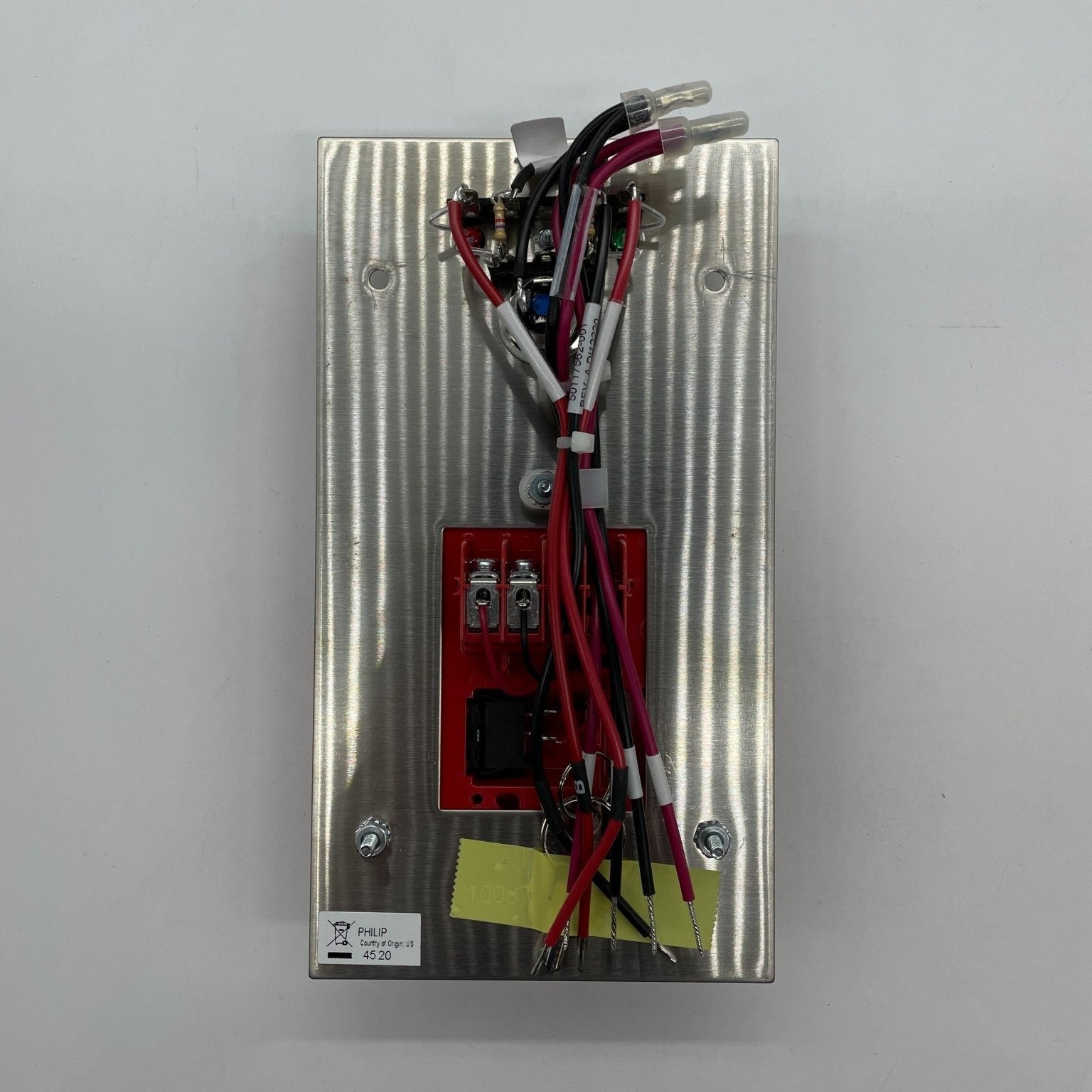

- Do not loop wiring under terminals; break the wire run to keep IDC supervision
- Reset by turning the key 1/4 turn counterclockwise, opening the door until the handle returns, then closing and locking it
- Closing the door automatically resets the switch to Normal
Related models
- NBG-12LR: dual-action release only
- NBG-12LRAA: ULC version with abort switch and LEDs
Documents
FAQ
What is the difference between the NBG-12LR and NBG-12LRA?
The NBG-12LR is a dual-action release station only. The NBG-12LRA adds an abort switch, a power-on (Normal) LED and a released LED.
Which backbox does the NBG-12LRA need?
It must be surface mounted to an SBA-10 metal backbox.
How is it reset?
Insert the key and turn it 1/4 turn counterclockwise, open the door until the handle returns to normal, then close and lock the door.
What is the contact rating?
The SPST normally open contact is gold plated and rated 0.25 A at 30 V AC or DC.
