The N-WEBPORTAL serves as a bridge between the 9th edition ONYX series fire alarm control panels, (direct connect or NOTI•FIRE•NET™ (NFN), fire and/or mass notification applications) and an eVance® Data Center.
It transmits network event and system information used for test and maintenance purposes.
The N-WEBPORTAL, a key part of the eVance® system, is a UL-864 listed product for supplementary use. It integrates seamlessly with NFS-320, NFS2-640, NFS2-3030 fire alarm control panels (FACPs), and the NOTI•FIRE•NET™ (NFN) network.
Features
• Connects directly to the FACP through a NUP connection or can connect with multiple FACPs through an NFN network.
• Provides a built-in configuration tool for simple browser configuration.
Compatibility
9th edition FACPs (NFS-320, NFS2-640, and NFS2-3030) operating with firmware version 18.0 or higher standalone or on standard NFN (version 5.0 and higher) or High-speed NFN.
Specifications
• Power input: 24 VDC Input current: 125 mA @ 24 VDC.
– The N-WEBPORTAL must be powered by a UL1481 and/ or UL 864 listed, regulated, 24 VDC, 125mA power supply.
• Temperature: 0°C to 49°C (32°F - 120°F).
• Relative Humidity: 93 ±2% non-condensing at 32 ±2°C (90 ±3°F).
NOTE: It is recommended that this product be installed in an environment with a normal room temperature of 15-27º C (60-80º F).
Standards and Codes
The N-WEBPORTAL complies with the following standards and requirements:
• NFPA 70 National Electrical Code
• NFPA 72 National Fire Alarm Code
• NFPA 101 Life Safety Code
• UL 864, 9th Edition: Control Units for Fire Alarm Systems
• UL 2572, 1st Edition: Mass Notification Systems
Listings and Approvals
These listings and approvals apply to the modules specified in this document. In some cases, certain modules or applications may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
• UL S635
• UL / ULC: S1570.
Ordering Information
EQUIPMENT ORDERED FROM NOTIFIER

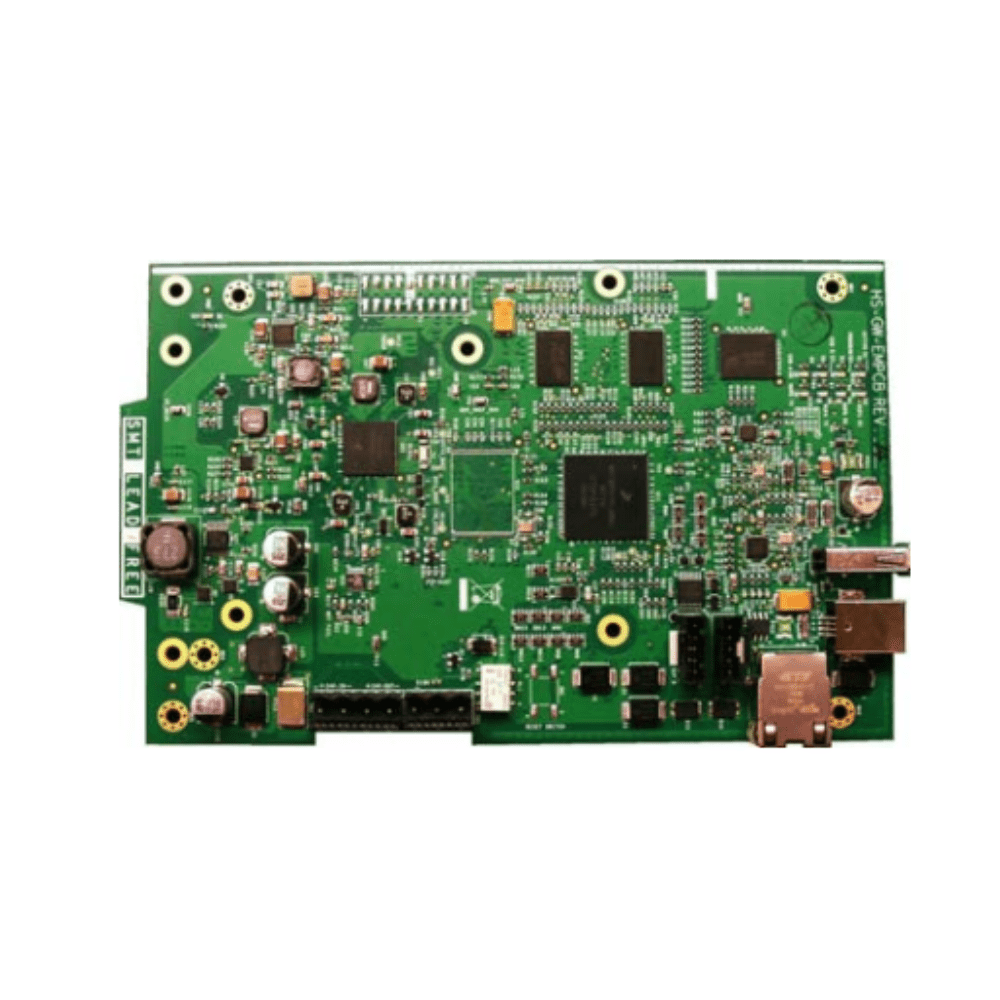

• N-WEBPORTAL: Includes circuit board and surge suppressor.
• CAB-4 Series Enclosure: Standard enclosure for Notifier fire alarm control panels and peripherals (available in four sizes, “A” through “D”). Back box and door ordered separately. A trim ring option is available for semi-flush mounting. See DN-6857.
• CHS-4L: Chassis for mounting N-WEBPORTAL in a CAB-4 Series cabinet.
• NCM for connection to NFN network (see DN-6861).
• HS-NCM for connection to high-speed NFN network (see DN-60454).
• Power Supply: Select a power supply that is powered by a regulated 24 VDC, UL 1481 or 864 listed, 125 mA power supply.
NOTE: Ethernet cable needed for programming.
EQUIPMENT SUPPLIED BY CUSTOMER
• Computer: Capable of running Google Chrome (preferred), Firefox, or Microsoft Internet Explorer (version 10 or higher) Web browser for N-WEBPORTAL configuration.
