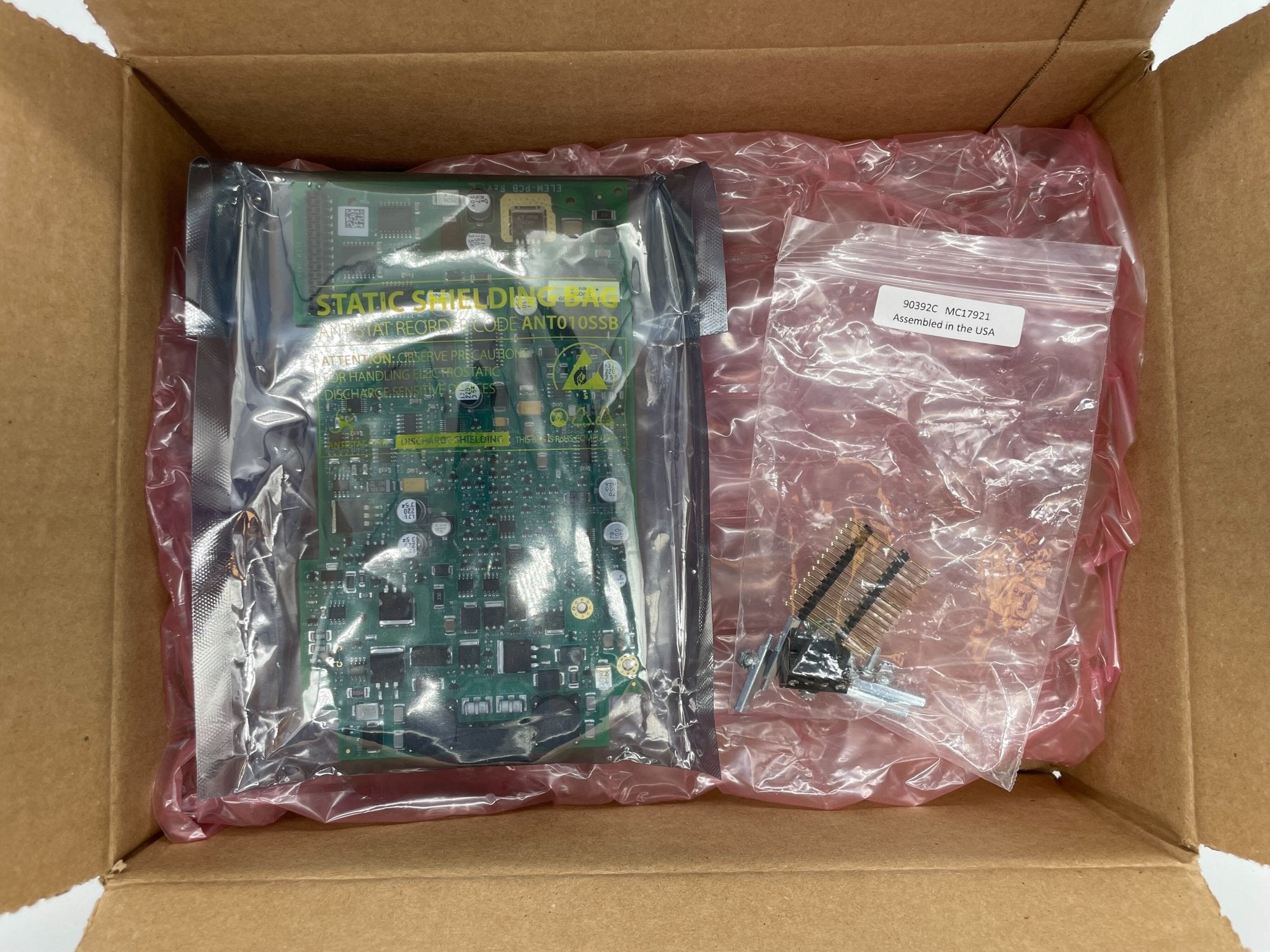

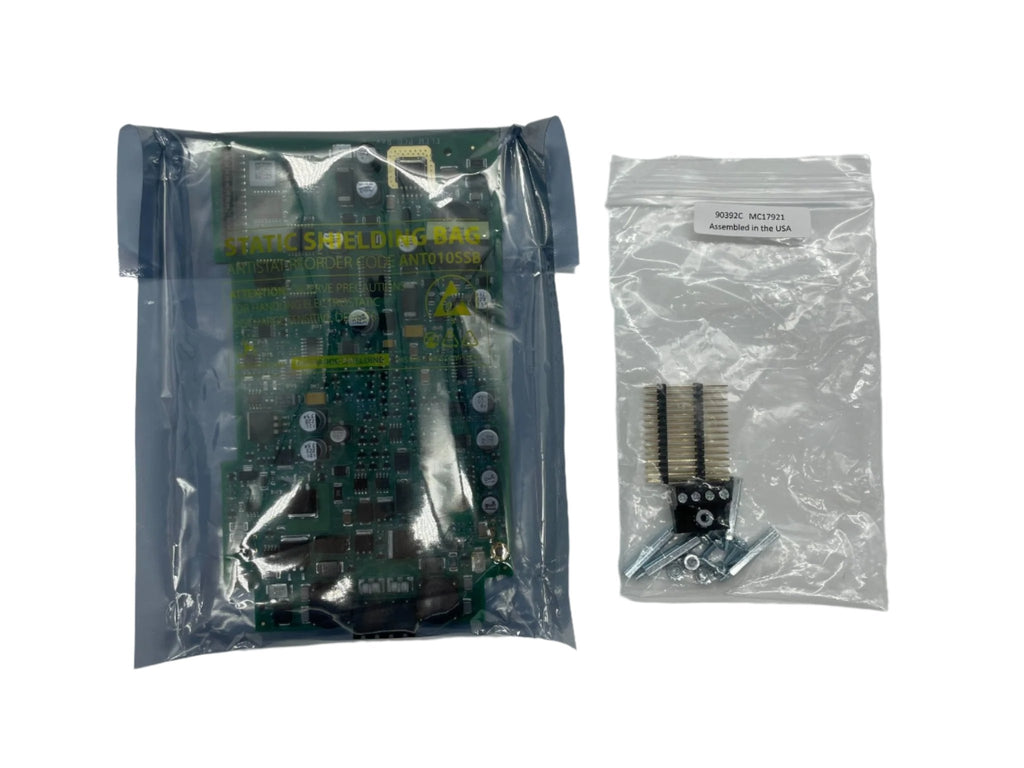

Notifier LEM-320 — plug-in Loop Expander Module that adds one Signaling Line Circuit to an ONYX Series intelligent fire alarm control panel.
ONYX Series panels ship with a fixed SLC capacity, and the 320-series cards are how that capacity grows. On the NFS-640 and NFS2-640 a single LEM-320 takes the panel from one loop to two. On the NFS-3030 and NFS2-3030 the panel accepts up to five LCM-320 Loop Control Modules, and each LCM-320 in turn supports one expansion LEM-320, for ten loops in all. Installation is plug-in style, and built-in degraded mode increases survivability if the loop is compromised.
- Operating voltage 24 VDC nominal, 27.6 VDC maximum
- Maximum current draw 100 mA; an LCM-320 draws 130 mA
- Class B Style 4 SLC length on twisted-unshielded pair: 12,500 ft at 12 AWG, 8,000 ft at 14 AWG, 4,875 ft at 16 AWG
- Maximum loop resistance 50 Ω, supervised and power-limited
- UL S635, ULC S635/CS118, FM Approved
Do not substitute the LCM-320 Loop Control Module, which is the host card on an NFS-3030 or NFS2-3030; there the LEM-320 expands an LCM-320 rather than replacing it.
Documents
FAQ
Which panels use the LEM-320?
Notifier ONYX Series panels: it expands the NFS-640/NFS2-640 to a second loop, and expands each LCM-320 on the NFS-3030/NFS2-3030.
How many can an NFS-3030 or NFS2-3030 take?
Up to five LCM-320 modules and five LEM-320 modules, with one LEM-320 per LCM-320.
How long can the SLC loop be?
Up to 12,500 ft on 12 AWG twisted-unshielded pair, 8,000 ft on 14 AWG, 4,875 ft on 16 AWG and 3,225 ft on 18 AWG, with 50 ohms maximum loop resistance.
What current does it draw?
100 mA maximum for the LEM-320 (an LCM-320 draws 130 mA), at 24 VDC nominal.
