LAMP DRIVER ANNUNCIATOR EXPANDER MODULE FOR USE WITH CUSTOM GRAPHIC ANNUNCIATORS 32 POINTS

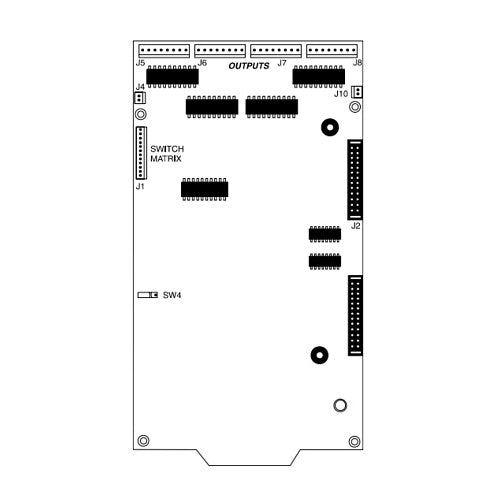

The LDM-E32 is the expander module in the Notifier LDM Series lamp driver family, used with an LDM-32 control module to drive lamps or LEDs on a custom graphic annunciator. It can be set for 32 alarm indications, or for 16 alarm, 16 trouble and 16 control switch points. The modules communicate with the panel over a serial interface and may be located up to 6,000 ft away.
Key Features
- 32 alarm drivers, or 16 alarm + 16 trouble + 16 switch inputs (field selectable)
- One LDM-E32 allowed per LDM-32 in alarm-only mode; three per LDM-32 in alarm/trouble mode
- Mounts on four standoffs inside the custom graphic annunciator box, or in a CHS-4L chassis
- Serial communications; up to 6,000 ft from the panel
Compatible With
- Notifier LDM-32 Lamp Driver Module
- Custom graphic annunciators on Notifier intelligent fire alarm control panels
