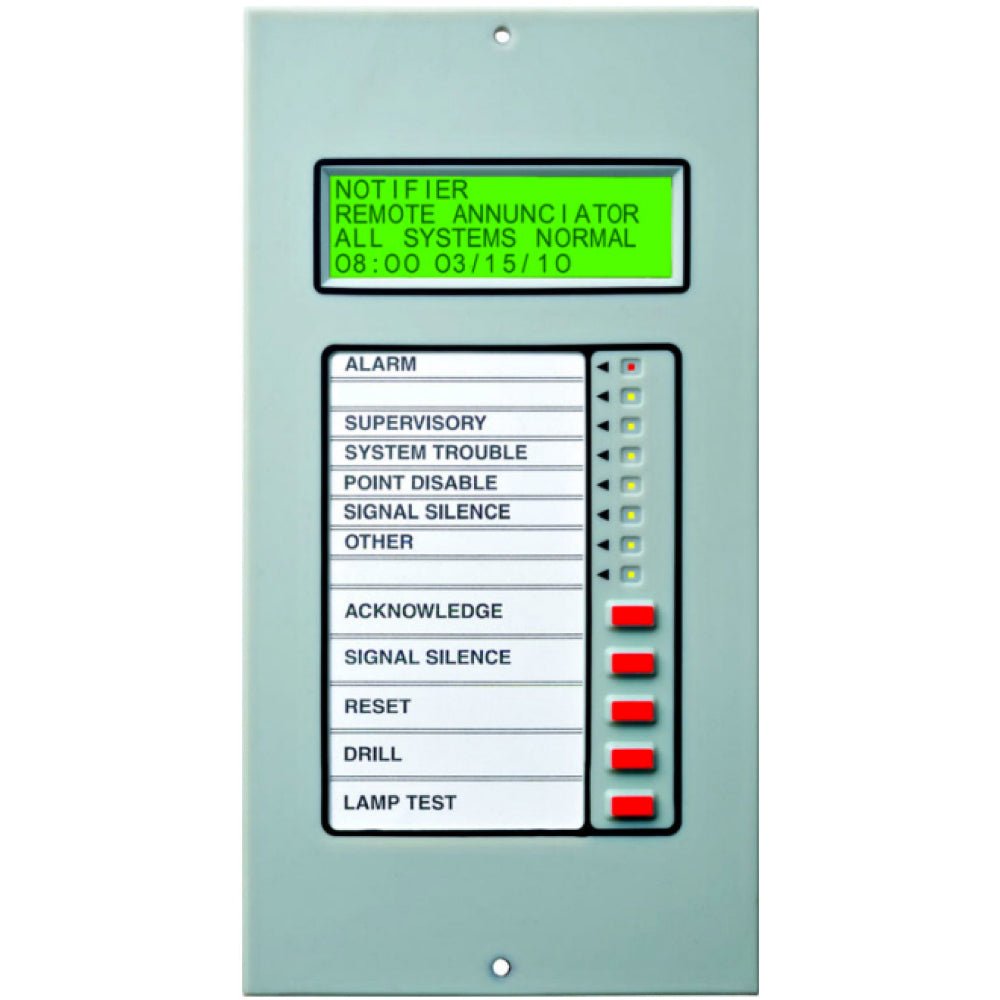

Notifier LCD2-80 — 80-character backlit LCD remote annunciator for Notifier fire alarm control panels and network control annunciators, with terminal mode and ACS mode.
It connects to the four-wire EIA-485 terminal port and mirrors the display of the NFS2-640, NFS2-3030, NFS-320, NCA-2 and legacy panels that supported the LCD-80/LCD-80TM. Up to 32 units can annunciate and give remote acknowledge, signal silence, drill and reset. In ACS mode it annunciates user-selected points (VeriFire Tools 6.90 or higher required).
Specifications
| Model |
LCD2-80 |
| Display |
80 characters, 4 lines x 20, backlit |
| Connection |
EIA-485 (2 wires) plus 24 VDC (2 wires) |
| Units per circuit |
Up to 32 |
| Distance |
Up to 6,000 ft between units |
| Controls |
Acknowledge, signal silence, drill, reset |
| Size |
8.25 in. H x 4.375 in. W x 1.75 in. D |
| Certifications |
UL S635; ULC S527-11; FM approved; CSFM; FDNY COA 6211, 6212 |
Installation notes
- Requires sufficient regulated 24 VDC power.
- Mounts in any CHS-4 chassis slot, or flush, surface or panel mount.
- Backboxes include the ABF-1DB semi-flush box with smoked glass door and the ABS-1B surface box.
- The general off-normal LEDs apply only with UL 864 9th Edition panels: NFS-320, NFS2-640, NFS2-3030 and NCA-2.
Related models
- NCA-2 is the network control annunciator it can mirror.
- AKS-1B is the key switch for the ABF-1B or ABS-1TB boxes.
Documents
FAQ
Which panels does it work with?
Notifier NFS2-640, NFS2-3030, NFS-320 and NCA-2, and legacy panels that supported the LCD-80/LCD-80TM.
How many can be connected?
Up to 32 LCD2-80s on one EIA-485 circuit, with up to 6,000 ft between units.
What power does it need?
Regulated 24 VDC, run as a separate pair alongside the EIA-485 wiring.
How is it mounted?
In a CHS-4 chassis slot, or flush, surface or panel mount using backboxes such as the ABF-1DB or ABS-1B.
