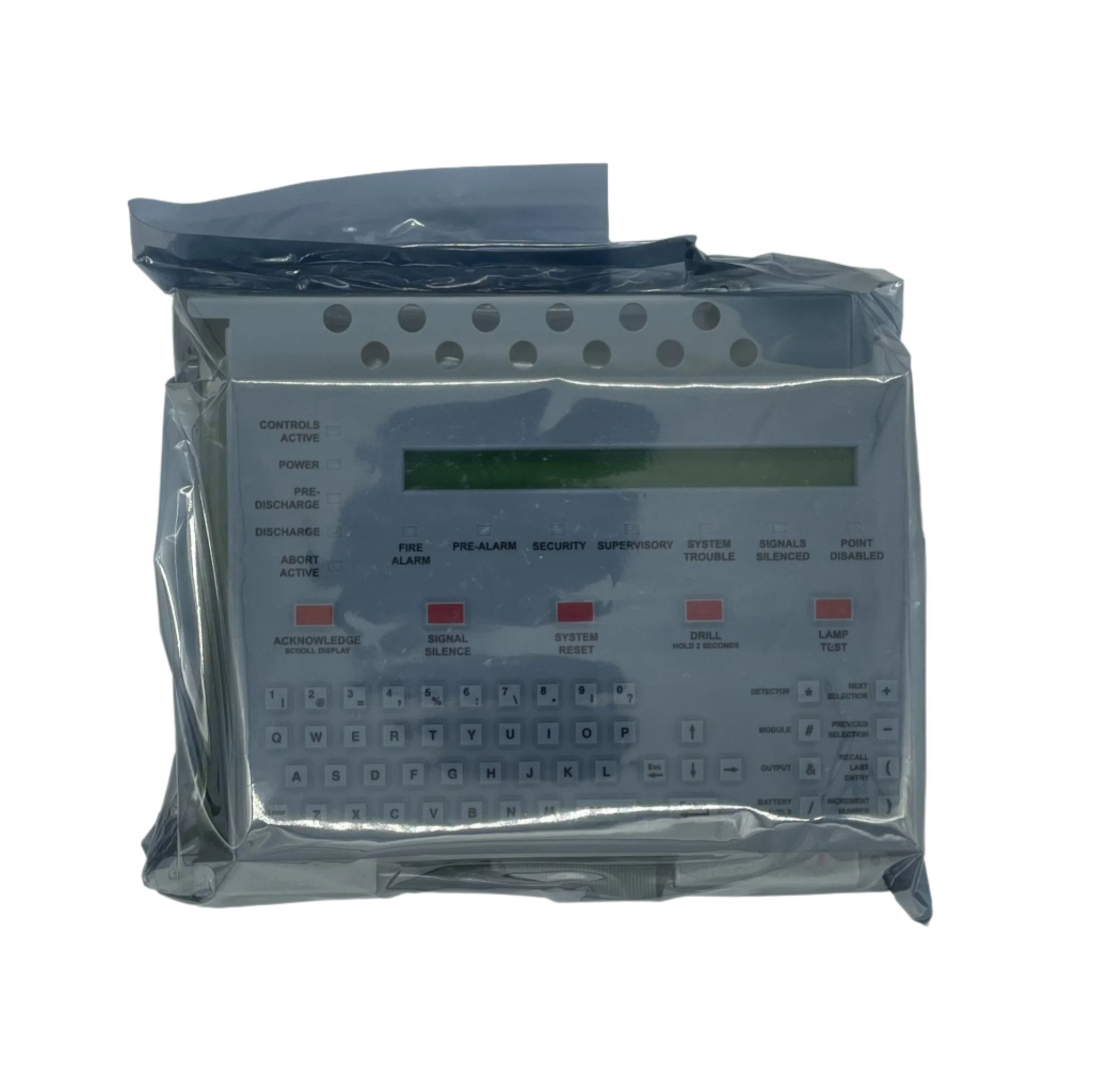

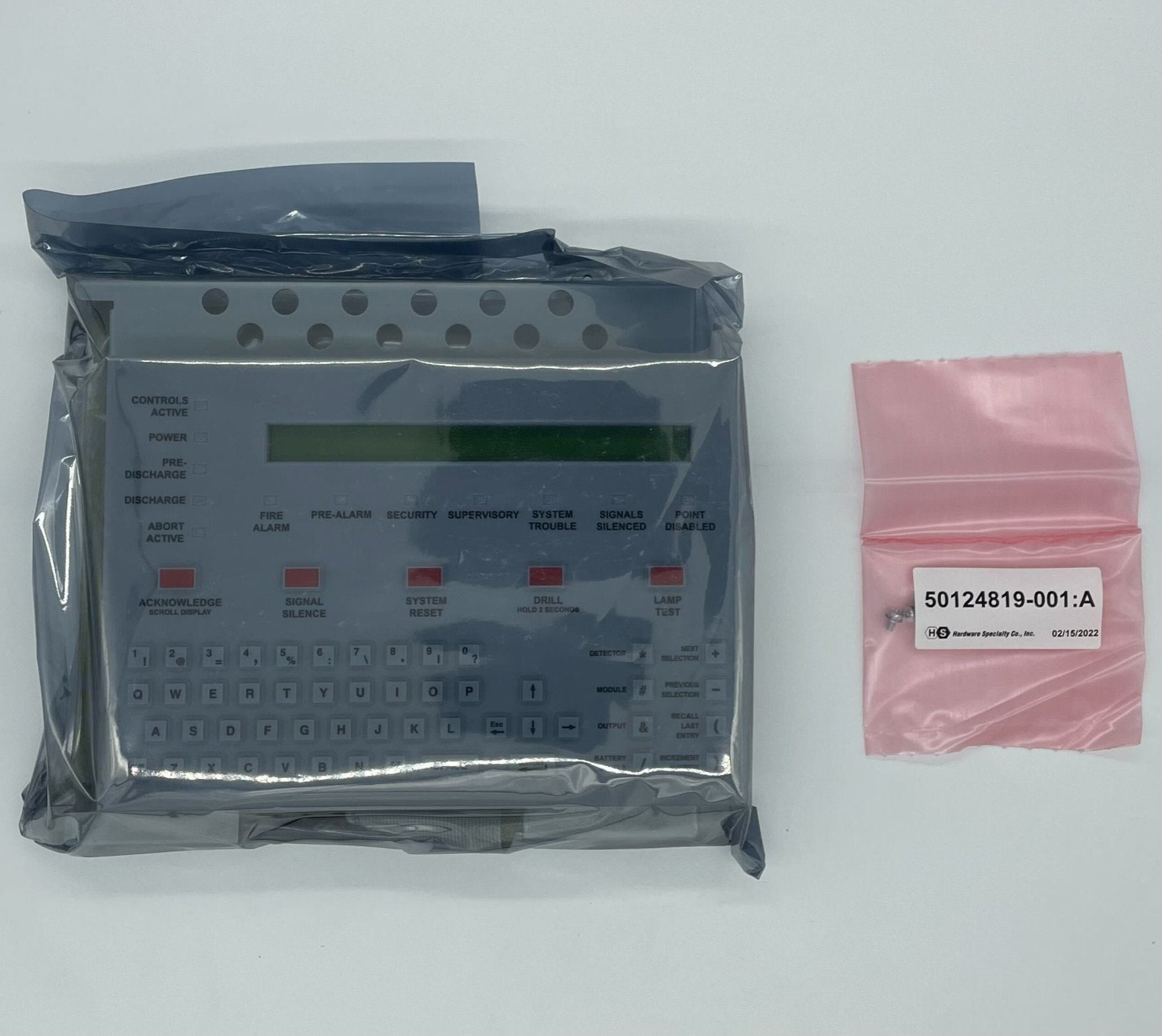

Notifier KDM-R2 is the keypad display module for the Notifier NFS2-640 fire alarm control panel (CPU2-640 or CPU2-640E). It combines an 80-character (2 x 40) backlit LCD with a QWERTY programming and control keypad, so programs can be created and edited from the front panel. One is required for each stand-alone 80-character display system.
The KDM-R2 mounts in the top row of the cabinet. Order a DP-DISP2 mounting plate and two BMP-1 blank modules separately. It can also mount in network nodes to show local node information, as long as at least one NCA-2 or NCS/ONYXWorks network display is on the system.
Specifications
| Display |
80 characters (2 x 40), LCD with long-life LED backlight |
| Keypad |
QWERTY programming and control keypad |
| LED indicators |
12: Power, Fire Alarm, Pre-Alarm, Security, Supervisory, System Trouble, Signals Silenced, Points Disabled, Control Active, Abort, Pre-Discharge, Discharge |
| Control switches |
Acknowledge/Scroll Display, Signal Silence, Drill, System Reset, Lamp Test |
| Current |
0.100 A |
| For use with |
NFS2-640 (CPU2-640 / CPU2-640E) |
| Mounting |
Top row of cabinet on DP-DISP2 with two BMP-1 |
Installation notes
- On a single-panel system the main display is either the KDM-R2 or an NCA-2/C.
- Networked systems need at least one NCD, NCA-2, NCS or ONYXWorks annunciation device for network information.
- Non-English versions exist: KDM-R2C for ULC applications, KDM-R2-FR, KDM-R2-PO and KDM-R2-SP.
Related models
- CPU2-640 / CPU2-640E — the NFS2-640 control panel boards the KDM-R2 serves.
- DP-DISP2 — top-row dress panel for the display.
- BMP-1 — blank module for unused positions.
Documents
FAQ
Which panel is the KDM-R2 for?
The Notifier NFS2-640 fire alarm control panel (CPU2-640 or CPU2-640E), where it serves as the main 80-character display and programming keypad.
Is mounting hardware included?
No. Order two BMP-1 blank modules and a DP-DISP2 mounting plate separately. The display requires the top row of a cabinet.
How much current does it draw?
0.100 A, per the NFS2-640 power calculations.
Is there a version for Canadian installations?
Yes. The KDM-R2C is the version for ULC applications.
