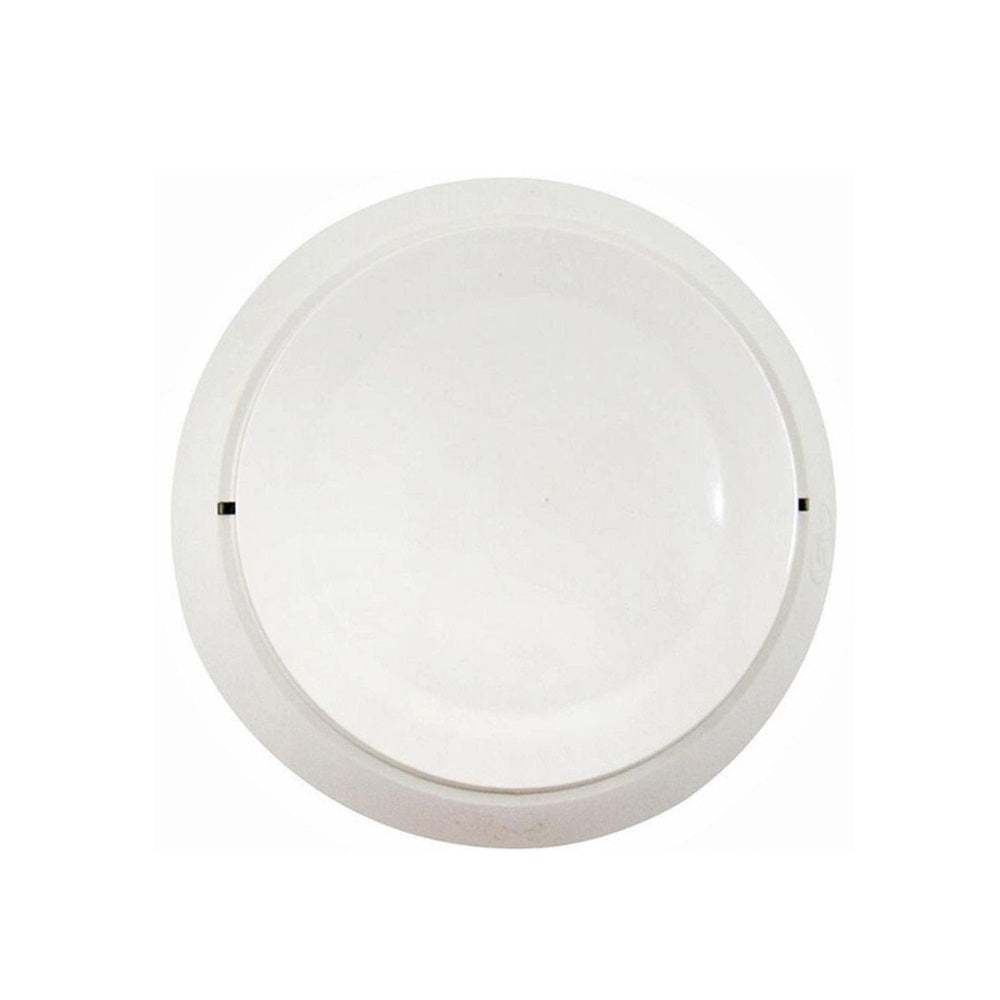

Notifier FSV-951R-IV — ivory VIEW high-sensitivity photoelectric smoke detector for very early warning detection on a FlashScan or CLIP addressable loop.
A patented optic block amplifies the signal returned by smoke while suppressing the stray internal reflections that cause nuisance alarms, and an LED source replaces the earlier laser. That reaches 0.02 %/ft obscuration, up to twenty-five times a standard photoelectric detector.
- Nine panel-selectable levels, 0.02 to 2.00 %/ft obscuration
- UL 268 certified for Open Air Protection at 0.5 to 2.0 %/ft and Special Applications at 0.02 to 0.5 %/ft; UL 268A certified for duct use, in duct and within DNR and DNRW housings
- 15 to 32 VDC; 300 µA at 24 VDC, 2 mA alarm, 4.5 mA maximum
- 14 to 140 °F, 10 to 93 percent RH, 0 to 4,000 ft/min
- Rotary address switches and dual LEDs; UL 864 9th Ed.
The -IV is the ivory column of the ordering table: FSV-951R is the same detector in white, and FSV-951RA and FSV-951RA-IV are the ULC models. The base is a separate catalogue number — B501-IV and B300-6-IV plain, B200S-IV sounder, B224RB-IV relay, B224BI-IV isolator.
