Notifier FSA-5000 is the Intelligent FAAST XS aspirating smoke detector, covering up to 5,000 sq. ft (464 sq. m) through one sampling pipe. It combines dual-source optical detection, a blue LED and an infrared laser, with algorithms that detect a wide range of fires while resisting nuisance particulates, and can be set for very early warning or standard fire detection.
Specifications
| Coverage |
Up to 5,000 sq. ft (464 sq. m), one pipe |
| Pipe length |
180 ft max. single pipe; 225 ft total (verify in PipeIQ) |
| Sensitivity range |
0.00029 to 6.25 %/ft obscuration |
| Alarm levels |
Three: Alert, Fire 1, Fire 2 |
| Supply voltage |
18 to 30 VDC from a certified UL 864 or UL 1481 power supply |
| Operating current |
200 / 151 / 120 mA at fan high / medium / low |
| Alarm current |
230 / 172 / 142 mA at fan high / medium / low |
| Relays |
5 Form C, 3 A, programmable latching or non-latching |
| Protocol |
FlashScan on the panel SLC, Class B or Class A |
| Network |
Ethernet monitoring, 6 e-mail alerts, Modbus/TCP |
| Operating temperature |
32 °F to 100 °F; sampled air -4 °F to 140 °F |
| Size |
11.0 in. H × 9.0 in. W × 6.25 in. D; IP30 |
Features
- Panels: NFS-320, NFS-320SYS, NFS2-640 and NFS2-3030, in FlashScan mode only
- Panel shows percent of alarm, drift compensation percent and temperature over the SLC
- Tested through a test port in the pipe network, simplifying periodic testing
- 18,000-event log; pipe outside diameter 1.050 in. IPS (25 mm)
Related models

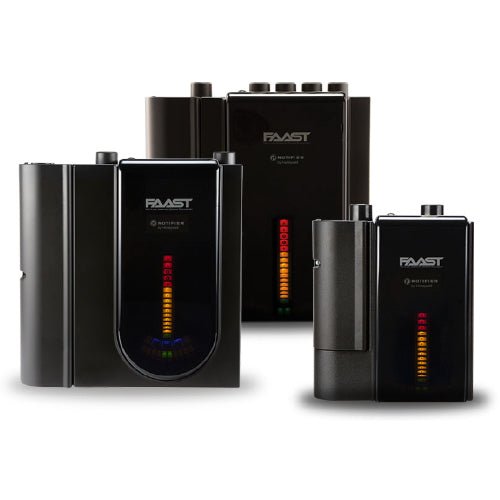

FSA-8000 (FAAST XM) covers 8,000 sq. ft through one pipe. FSA-20000 (FAAST XT) and FSA-20000P (FAAST XT PRO, with addressable pipes) cover up to 28,800 sq. ft through one to four pipes. Models ending in A are the ULC versions.
Documents
FAQ
Which Notifier panels support the FSA-5000?
The NFS-320, NFS-320SYS, NFS2-640 and NFS2-3030. The detector runs in FlashScan mode only.
How large an area can it cover?
Up to 5,000 sq. ft (464 sq. m) through one pipe, with a 180 ft maximum single pipe and 225 ft total pipe length. Designs must be verified in PipeIQ software.
What power does it need?
18 to 30 VDC from a certified UL 864 or UL 1481 power supply. Average current is 200 mA at the high fan setting.
How many alarm levels does it report?
The FAAST XS has three alarm levels: Alert, Fire 1 and Fire 2.
