NOTIFIER FDU-80 — an 80-character, backlit LCD remote fire annunciator with control switches for remote control of system functions and a key-switch lock.
The FDU-80 is a compact, cost-effective remote annunciator for use with the NOTIFIER FireWarden-100-2, NFS2-640 and NFS-320 fire alarm control panels. It mimics the display of the control panel and shows complete system point status information — device type identifiers, individual point alarm, trouble or supervisory state, zone and custom alpha labels, and a time-and-date field. Communication with the panel runs over an EIA-485 serial interface, which greatly reduces wire and installation cost compared with traditional annunciator systems, and the FDU-80 requires no programming at all, saving time during system commissioning. Control switches cover System Acknowledge, Signal Silence, Drill and Reset behind an enable key, and system status LEDs indicate Power, Alarm, Trouble, Supervisory and Alarm Silenced. A local piezo sounder provides alarm and trouble resound. All field-wiring terminations use removable, compression-type plug-in terminal blocks for ease of wiring and circuit testing.
Specifications
| Display |
80-character backlit liquid crystal display; mimics all display information from the host panel |
| Host panel compatibility |
NOTIFIER FireWarden-100-2, NFS2-640 and NFS-320 fire alarm control panels |
| Communication |
EIA-485 serial interface to the FACP terminal port |
| Quantity per panel |
Up to 32 FDU-80 annunciators per FACP |
| Maximum distance |
Up to 6,000 feet (1828.8 m) from the FACP |
| Power |
May be powered from the host FACP or by remote power supply (requires 24 VDC) |
| Control switches |
System Acknowledge, Signal Silence, Drill and Reset, with enable key |
| Status LEDs |
Power, Alarm, Trouble, Supervisory, Alarm Silenced |
| Audible |
Local piezo sounder with alarm and trouble resound |
| Programming |
None required |
| Terminations |

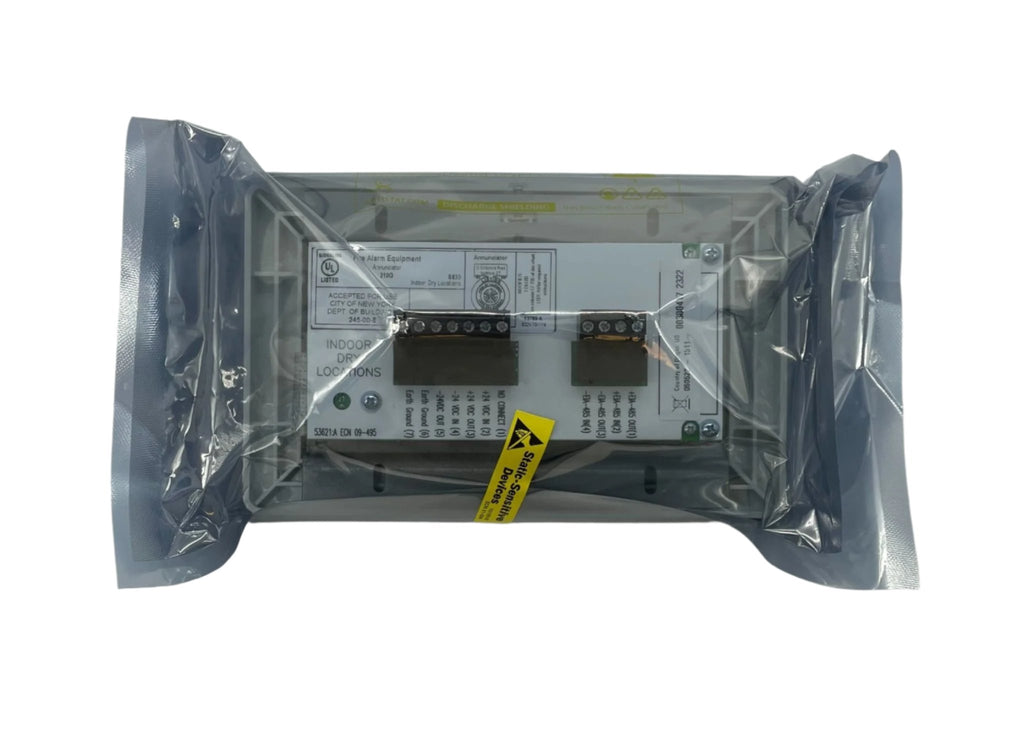

Removable, compression-type plug-in terminal blocks |
| Semi-flush mounting |
Three-gang electrical box, 2.188 in. (5.556 cm) minimum depth (NOTIFIER PN 10103), or three-gangable electrical switchbox |
| Surface mounting |
NOTIFIER SBB-3 three-gang surface backbox |
| Agency listings |
UL Listed S635; MEA Listed 245-00-E; FDNY COA #6038; CSFM 7120-0028:209; FM Approved |
| Country of origin |
Made in the U.S.A. |
Installation notes
-
Box depth is the usual site problem: semi-flush mounting needs a three-gang box at least 2.188 in. (5.556 cm) deep — a shallow three-gang box will not take the annunciator. Order the 10103 box for new work, or the SBB-3 backbox to surface mount.
-
UL against ULC: the FDU-80 carries the UL listing. For Canadian projects the ULC-listed version is the FDU-80C, covered by a separate data sheet, DN-60573.
-
Power source: the annunciator can draw from the host FACP or from a remote 24 VDC supply. On systems approaching the 32-annunciator limit, plan the power source deliberately rather than assuming the panel can carry every unit.
-
Distance: the EIA-485 run may extend up to 6,000 feet (1828.8 m) from the panel.
-
No programming: the FDU-80 connects to the terminal port and mirrors the panel; there is no annunciator database to build or maintain.
Related models
-
FDU-80C — the ULC-listed version of this annunciator; see data sheet DN-60573.
-
10103 — three-gang electrical box, minimum 2.188 in. (5.556 cm) deep, for semi-flush mount applications.
-
SBB-3 — three-gang surface backbox for surface-mount applications.
Specifications taken from the NOTIFIER data sheet “FDU-80 80 Character Liquid Crystal Display Annunciators,” document DN-6820:B (05/17/2010). Manufacturer specifications are subject to change without notice.
