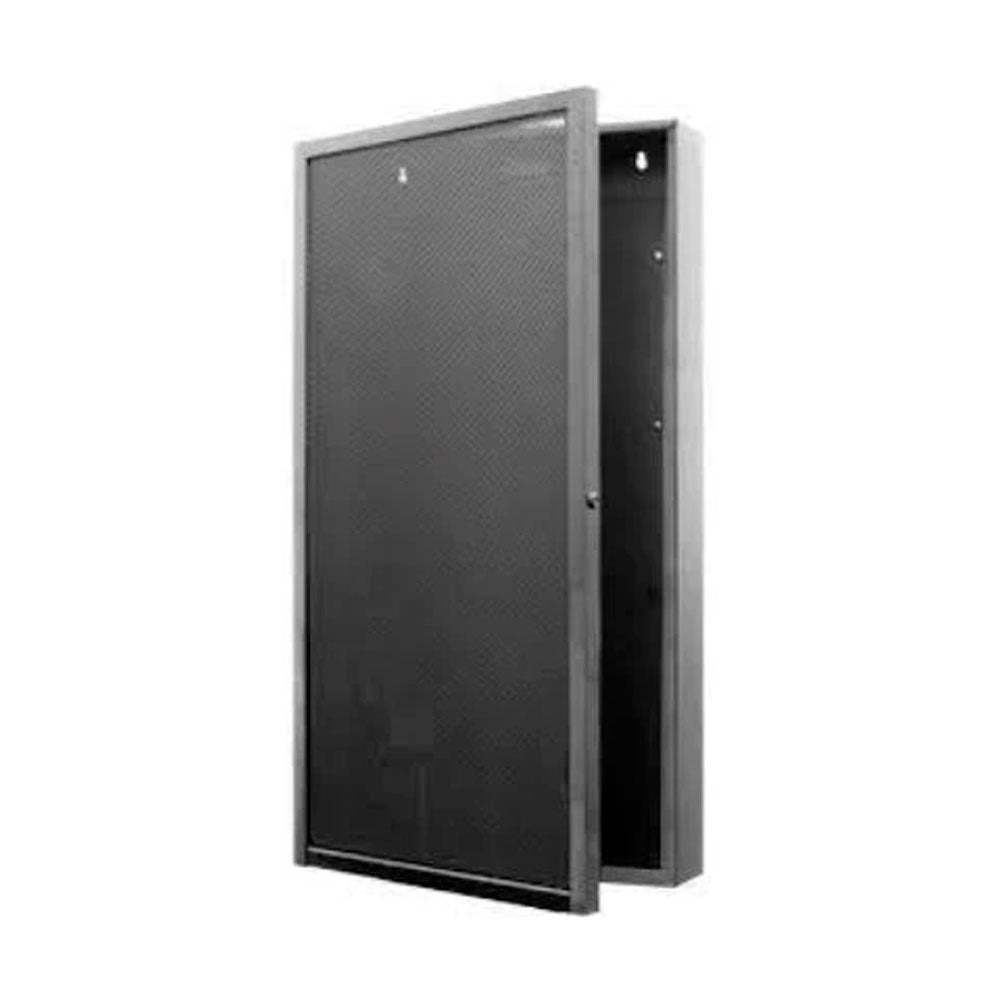

Notifier EQBB-C4 is the three-tier (C size) black backbox assembly for EQ Series equipment cabinets. EQ cabinets house distributed components such as amplifiers, power supplies and I/O modules, with good ventilation and room for wire or fiber between rows.
The backbox is 16-gauge steel with knockouts at numerous points for conduit entry. It is paired with the EQDR-C4 vented locking door, ordered separately. EQ cabinets share the external dimensions of CAB-4 Series cabinets but have no separate battery row, and their perforated blank doors do not take dress plates, so they are not for operator equipment such as annunciators or remote microphones.
Specifications
| Size |
C, three tiers |
| Color |
Black (EQBB-C4R for red) |
| Material |
16-gauge steel |
| Door |
EQDR-C4 vented door, ordered separately |
| Trim ring |
TR-C4 for semi-flush mounting |
Features
- For DAA2, DAX, DS-AMP, DAA-50/75 and AA-30/100/120 amplifiers
- For ACPS-610, AMPS-24 and HPFF8CM/HPFF12CM power supplies
- For XP6-C, XP6-MA, XP6-R and XP10-MA modules
- Door hinge can be set right or left in the field; door opens 180°
Related models
EQBB-B4 (two tiers) and EQBB-D4 (four tiers) are the other EQ backbox sizes.
