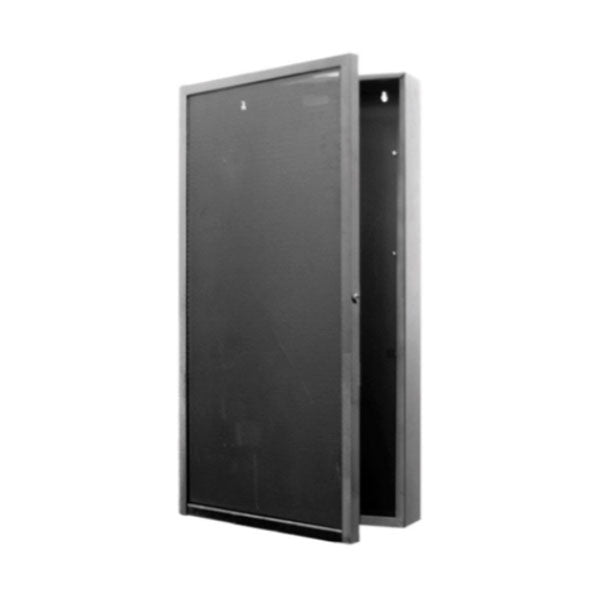

Notifier EQBB-B4 is the backbox assembly for a "B" size, two-tier EQ Series equipment cabinet, in black. EQ cabinets house ONYX Series equipment, annunciators or remote microphones. They share the external dimensions of the CAB-4 Series cabinets but have no separate battery row.
Specifications
| Size |
"B", two tiers |
| Color |
Black |
| Series |
EQ Series equipment cabinets |
| Construction |
Backbox only; the door is ordered separately |
| Mounting |
Surface, or semi-flush with the TR-B4 trim ring |
Installation notes
- A complete cabinet is a backbox plus a locking door: order the EQDR-B4 vented door (black) with this backbox
- For red, order the EQBB-B4R backbox and EQDR-B4R door
- EQ cabinets come in B (two tiers), C (three tiers) and D (four tiers) sizes
- The door opens 180°
Related models
EQBB-C4 and EQBB-D4 are the three- and four-tier backboxes. TR-B4 is the semi-flush trim ring for the two-tier size.
Documents
FAQ
Does the EQBB-B4 include a door?
No. It is the backbox only. Order the EQDR-B4 vented door to complete the cabinet.
How does it differ from a CAB-4 cabinet?
EQ cabinets share the external dimensions of CAB-4 Series cabinets but have no separate battery row.
Can it be semi-flush mounted?
Yes, with the TR-B4 trim ring.
Is there a red version?
Yes, the EQBB-B4R backbox with the EQDR-B4R door.
