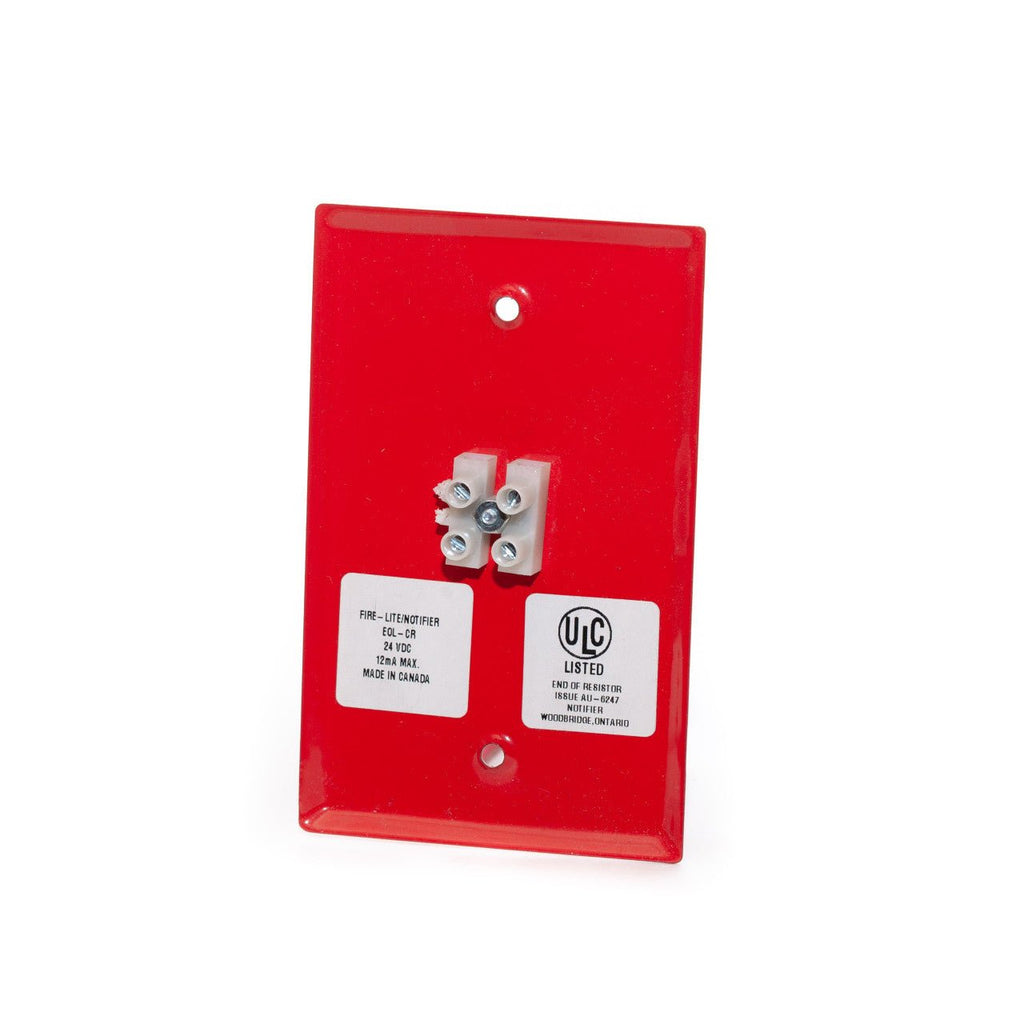

Notifier EOL-CR — red metal single-gang mounting plate for an end-of-line device.
On a Class B initiating or notification appliance circuit the end-of-line device sits at the far end of the run, where it has to stay accessible for testing and for tracing an open. When the last device is a detector base or a sealed appliance there is often nowhere sensible to land the resistor, and taping it into a box above a ceiling makes it invisible to the next technician. The EOL-CR gives that device its own terminal strip at a reachable height, and the red enamel keeps the plate from being mistaken for a blank cover.
- Terminal strip mounted on a heavy-gauge metallic single-gang faceplate
- Red baked enamel finish
- Fits a standard single-gang electrical box
- ULC listed, file S7547
- EOL-CW is the same plate finished in white
This is the mounting plate only — the end-of-line device ships with the corresponding module or panel in the central equipment, and the box is provided by the installer.
