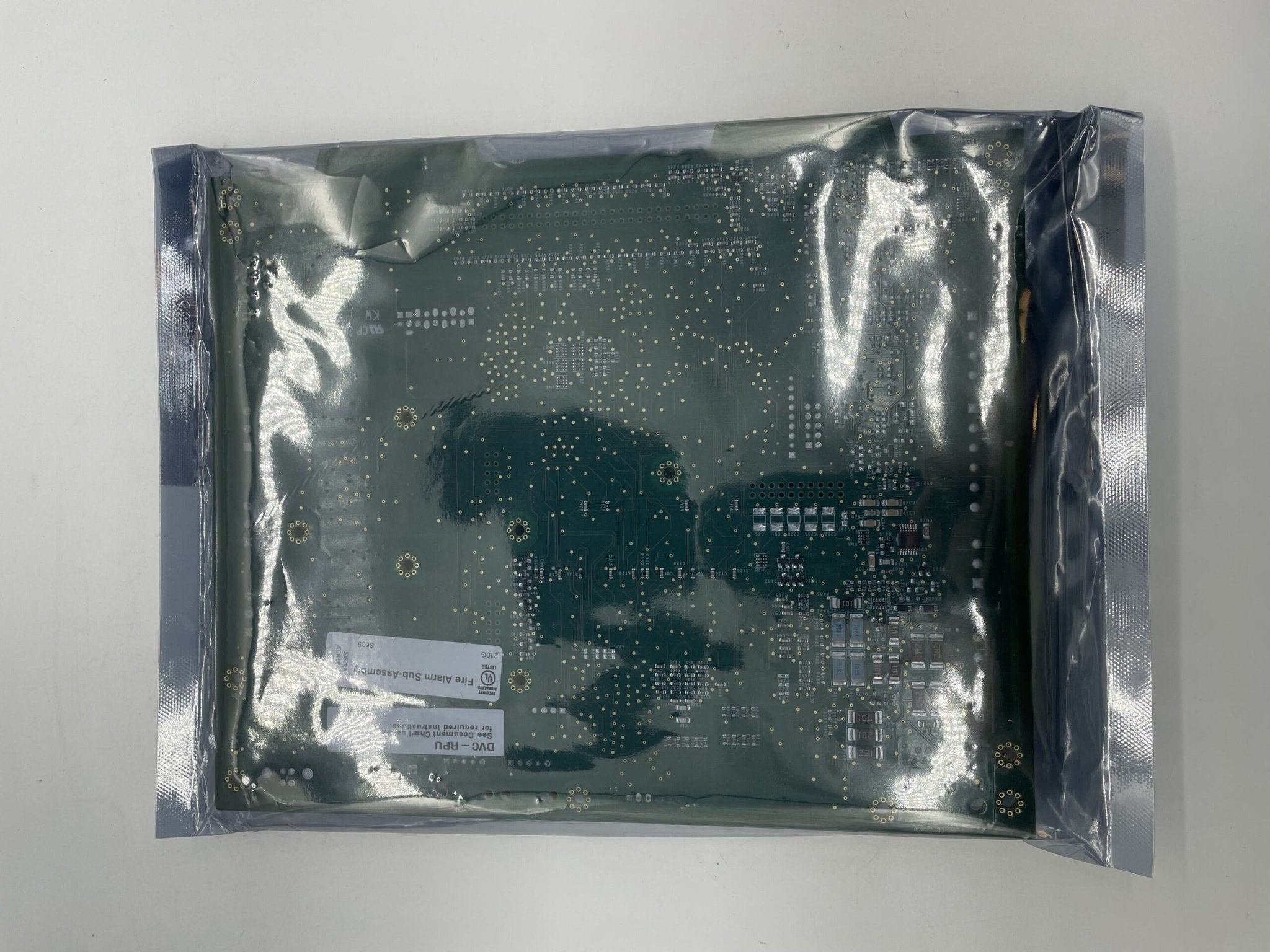

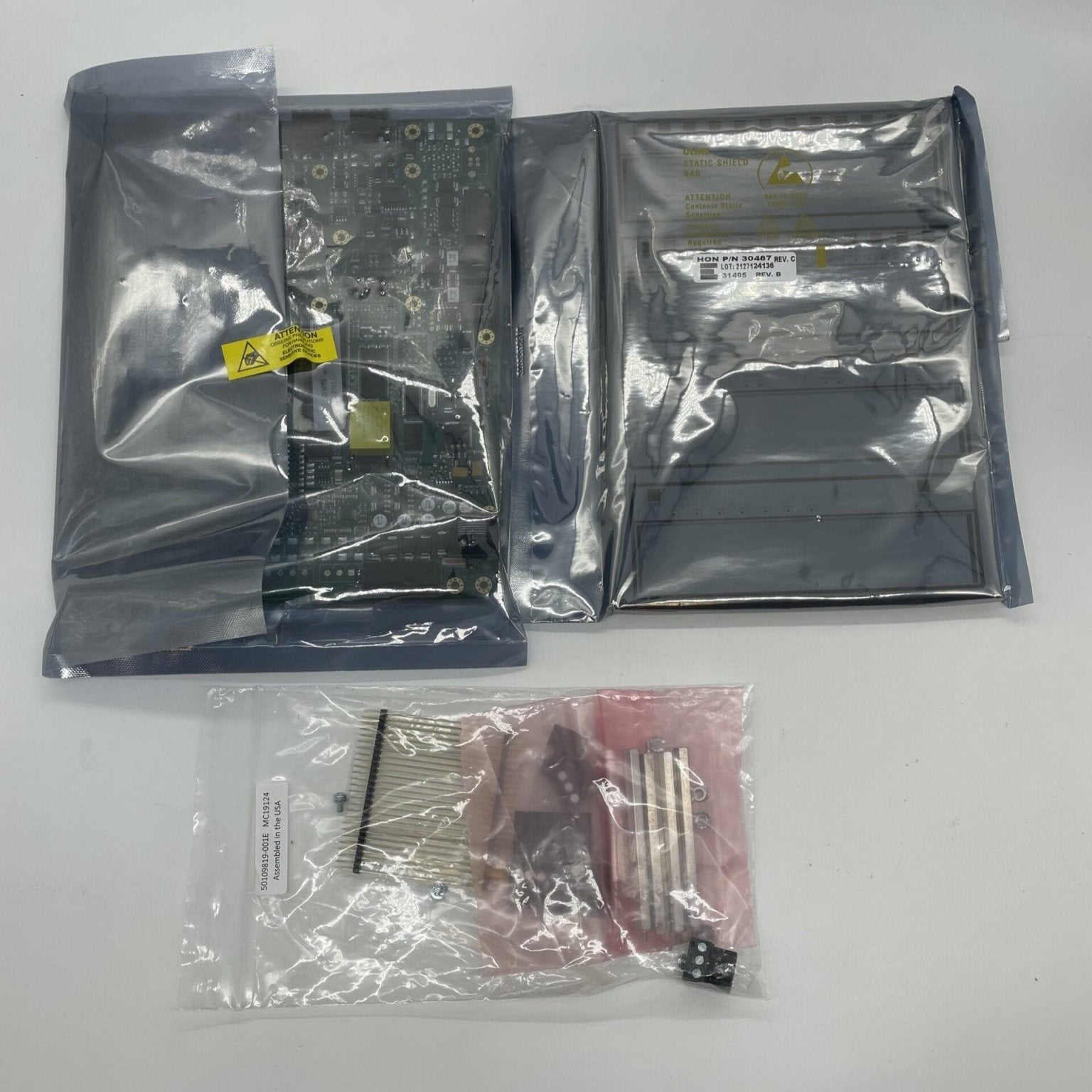

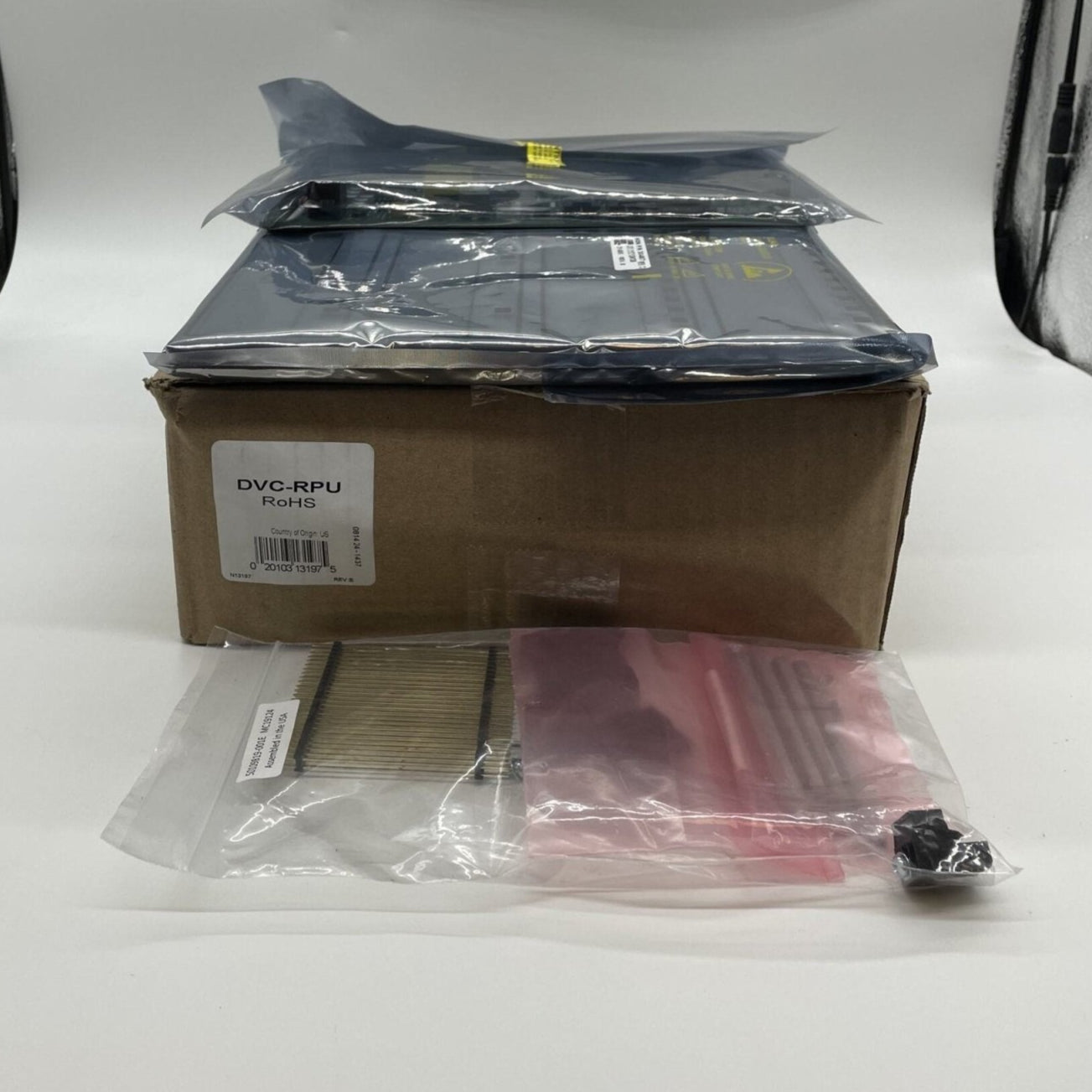

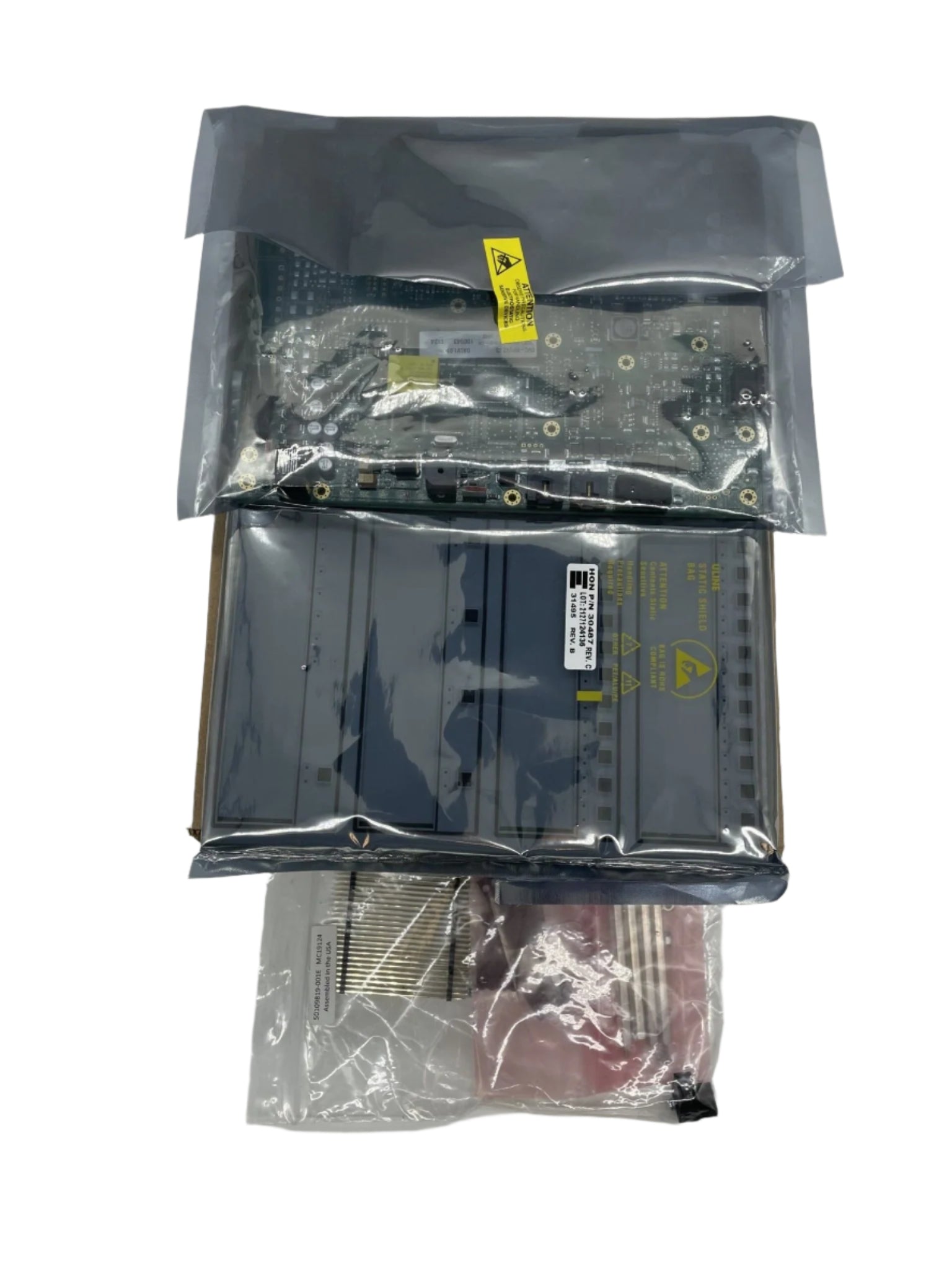

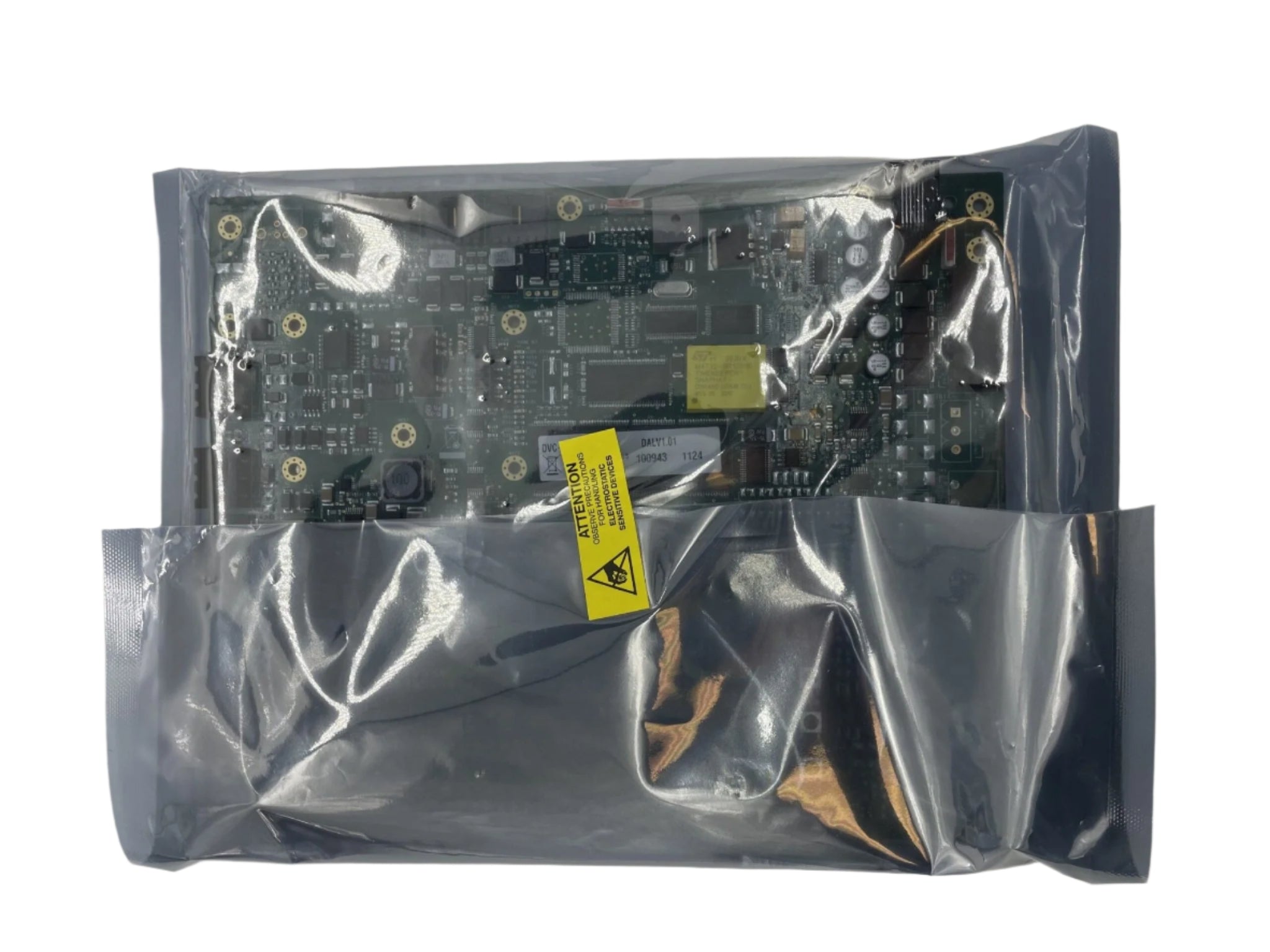

Notifier DVC-RPU — Digital Voice Command remote paging unit: the keypad and display module of a remote paging station on a DVC digital audio loop.
It gives a compact remote position for emergency, fire or general paging, for starting recorded messages and vectored pages, and for control or annunciation of up to 24 points.
- Up to 32 DVC-RPUs per DVC, one Digital Audio Loop address each
- Isolated digital audio ports connect directly to 32 DAL devices, Style 4 or 7
- 24 programmable buttons for vectored pages, HVAC shutdown, door release, annunciation
- Three message priority levels, so emergency pages override general paging
- Wire media onboard; DS-RFM, DS-FM and DS-SFM modules add single- or multi-mode fiber
- Programmed with VeriFire Tools 6.7 or higher; UL 864 9th edition, UL S635
Notifier builds the paging station from separately orderable parts and this number is only the first: the CMIC-RP microphone and well and the CAB-RP or red CAB-RPR cabinet are ordered on their own, and the DVC-EM is the required control. In a CAB-4 cabinet it takes a CA-1 chassis, CMIC-1 microphone and DPA-1 dress plate.
Documents
FAQ
Does the DVC-RPU include the microphone and cabinet?
No. It includes the keypad/display only. The CMIC-RP microphone and well and the CAB-RP (black) or CAB-RPR (red) cabinet are ordered separately.
What control does it need?
The DVC-EM Digital Voice Command is the required control. Up to 32 DVC-RPUs are supported per DVC, each taking one Digital Audio Loop address.
Can it run over fiber?
Wire media is supported by the base product. DS-RFM, DS-FM and DS-SFM modules convert one or both digital audio ports for multi-mode or single-mode fiber.
Can it be mounted in a CAB-4 cabinet?
Yes, using a CA-1 chassis with a CMIC-1 microphone and well; a DPA-1 dress plate is required in that configuration.
