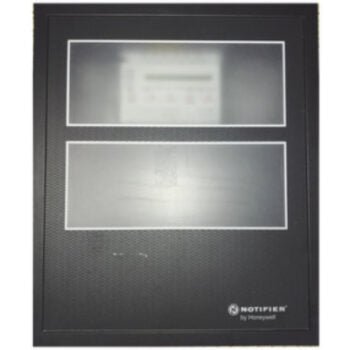

Notifier DR-B4 — CAB-4 Series door assembly with window, two tier B size, black.
Notifier CAB-4 cabinets are fabricated from 16-gauge steel in two parts, a backbox and a locking door, and this catalogue number is the door alone. Notifier states that one DR door and one SBB backbox are ordered for each cabinet, so the matching backbox has to go on the order beside this part.
- Two tier B size door with window, black, 17.45 lb.
- Key-locked, with a pin-type hinge, two keys and the hardware to mount the door to the backbox
- Hinges selectable right or left hand in the field; the door opens 180 degrees
- Assembled B size cabinet measures 24-1/8 in. W × 28-5/8 in. H over a backbox 5-5/32 in. deep
- UL and ULC listed S635; FM approved; MEA 317-01-E and 345-02-E; FDNY COA 6085 and COA 6098
SBB-B4 is the matching black backbox and SBB-B4R the red one. DR-B4R is this same window door in red, DR-B4B and DR-B4BR are the solid door versions with no window, and ADDR-B4 is the two-tier door made for a CA-2 chassis in the top rows. TR-B4 is the optional trim ring and BP2-4 the battery plate.
